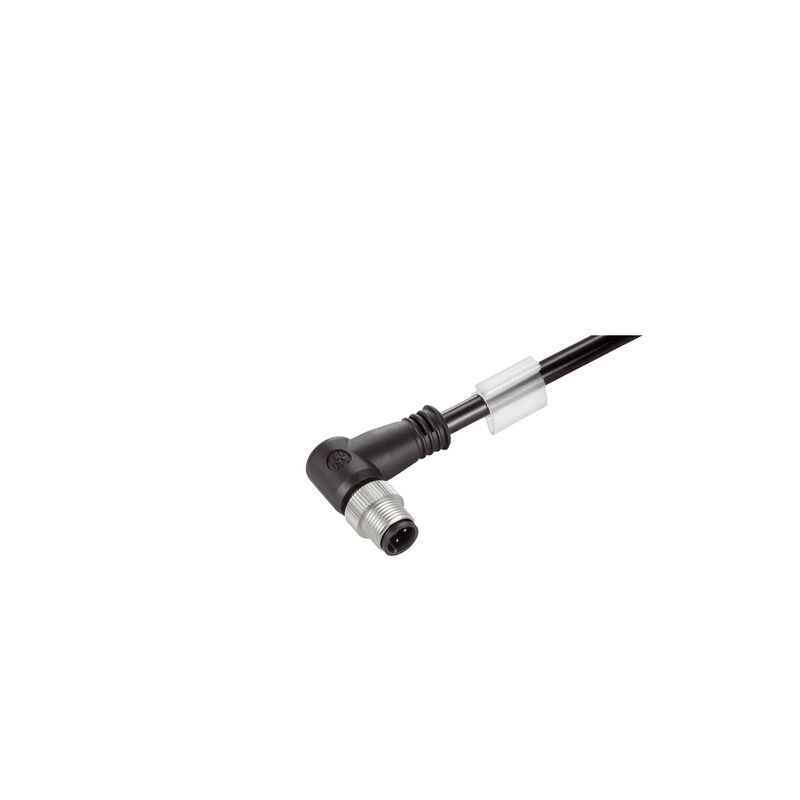

System cable, M12 D-code – IP 67 angled pin, Open, Cat. 5e, Radox EM 104, 10 m

Product ID 1059900100
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 6 Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 D-code – IP 67 angled pin, Open, Cat. 5e, Radox EM 104, 10 m
Order No.
1059900100
Type
IE-C5DB4RE0100MCAXXX-X
GTIN (EAN)
4032248808656
Qty.
1 items

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
706,64 g

Temperatures

Operating temperature
-25 °C...85 °C
Installation temperature
-25 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Cavi dati e di controllo multifilo in metallo
According to EN50288-2-2
Fluorine content
According to EN 60684-2 Section 45.2
Korozyjność gazów pożarowych
EN 50267-2-2
Poisonous gases
According to BS 6853 Appendix B
Propagation verticale des flammes aux faisceaux de câbles
in accordance with EN 50266
EN 50305
EN 60332-3-25
According to NF C32-070, 2.1
According to UL1685, 12 (FT4 exp.)
Röktäthet
BS 6853 부록 D 준수
IEC 61034-2 준수
UL1685, 12(FT4 exp.) 규격
Противопожарная защита рельсового подвижного состава
According to BS 6853, GM/RT 2130, la,lb, II
According to EN 45545, HL1 - HL3
According to DIN 5510 1-4
According to NF F16-101, A1, A2, B
According to UNI CEI 11170, LR1-LR4
NFPA 130
수소 할로겐 화합물 성분
According to EN-50267-2-1

General standards

Connector standard
IEC 61076-2-101

Cable structure

Anzahl der Adern
4
Colour coding
yellow
white
orange
blue
Insulation
PE
Insulation cross-section
1,95 mm
Material sheath
Radox EM 104
Průřez propojení AWG, max.
AWG 22
Querschnitt
4*AWG 22/7 - 0.32 mm²
Schirmung
SF/UTP
Sheath diameter, max.
7,55 mm
Sheath diameter, min.
6,95 mm
Sheathing colour
black
Wire material
Copper alloy

Electrical properties of cable

Category
Cat. 5e

Mechanical and material properties of cable

Corrosiveness of fumes
EN 50267-2-2
Halogen
No
Impervious to smoke
According to BS 6853 Appendix D
According to IEC 61034-2
According to UL1685, 12 (FT4 exp.)
Min. bending radius, once only
10 x cable diameter
Min. bending radius, repetitive
6 *diameter
Resistance to oils
in accordance with EN 50264-1 or EN 50306-1
Resistance to spread of flame
in accordance with IEC 60332-1-2
According to NF C32-070, 2.1
NFPA 130

Plug, left

Plug left
M12, D-coded, Number of poles: 4, IP67, male contact, angled 0°, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
