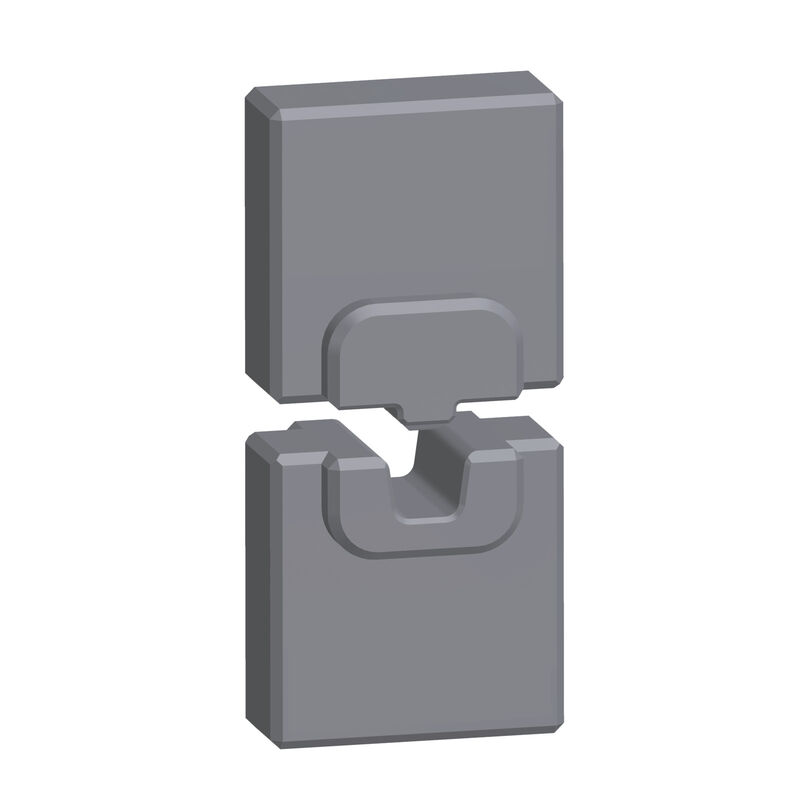

ES EPG 45 AEH 25

ES EPG 45 AEH 25

25mm², Trapezoidal crimp

Ürün No. 1501070000
Veri sayfasını indir Product Downloads
aksesuarıdır 1 İlgili ürünler 3
General ordering data Dimensions and weights Environmental Product Compliance Crimp inserts Description of contact tool data crimping Classifications

General ordering data

Version
25mm², Trapezoidal crimp
Order No.
1501070000
Type
ES EPG 45 AEH 25
GTIN (EAN)
4050118309164
Qty.
1  adet

Dimensions and weights

Net weight
182  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Crimp inserts

Crimp cross-section copper
25
Crimping width
19  mm

Description of contact

Conductor cross-section, max. AWG
4
Conductor cross-section, min. AWG
4
Crimping range, max.
25  mm²

tool data crimping

Cable lug cross section
  • nominal:
    25 mm²
Crimping type/profile
Trapezoidal crimp

Classifications

ETIM 6.0
EC001282
ETIM 7.0
EC001282
ETIM 8.0
EC001282
ETIM 9.0
EC001282
ETIM 10.0
EC001282
ECLASS 9.0
21-04-90-90
ECLASS 9.1
21-01-90-90
ECLASS 10.0
21-04-90-90
ECLASS 11.0
21-04-90-90
ECLASS 12.0
21-04-90-90
ECLASS 13.0
21-04-90-90
ECLASS 14.0
21-04-90-90
ECLASS 15.0
21-04-90-90
