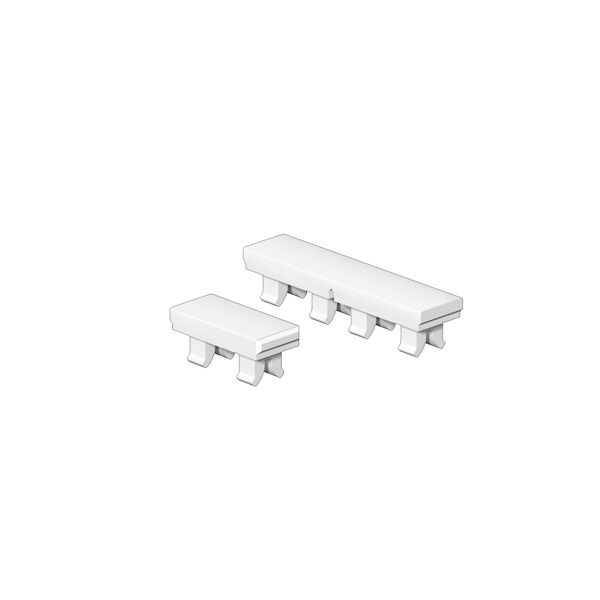

ESG, Device markers x 10 mm, PA 66, Colour: white, pluggable

Produkt ID 1001140001
Download datablad Produktdownloads Engineering-support
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Important note 分類

Approvals

ROHS
Conform

General ordering data

Version
ESG, Device markers x 10 mm, PA 66, Colour: white, pluggable
Order No.
1001140001
Type
ESG X20 MC NE WS
GTIN (EAN)
4032248692798
Qty.
1.120 Styk

Dimensions and weights

Depth
0,8 mm
Depth (inches)
0,031 inch
Height
2,5 mm
Height (inches)
0,098 inch
Width
10 mm
Width (inches)
0,394 inch
Net weight
0,08 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.000 kg CO2 eq.

General data

Application/manufacturer
B&R X20 System
Basic material
PA 66
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Materialfarbe nach Widerstandskode
9
Number of markers per combination
1 MultiCard = Device markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
UL 94 flammability rating
V-2
Version
pluggable
Width
10 mm

Device markers

Halogene
No

Important note

Product information

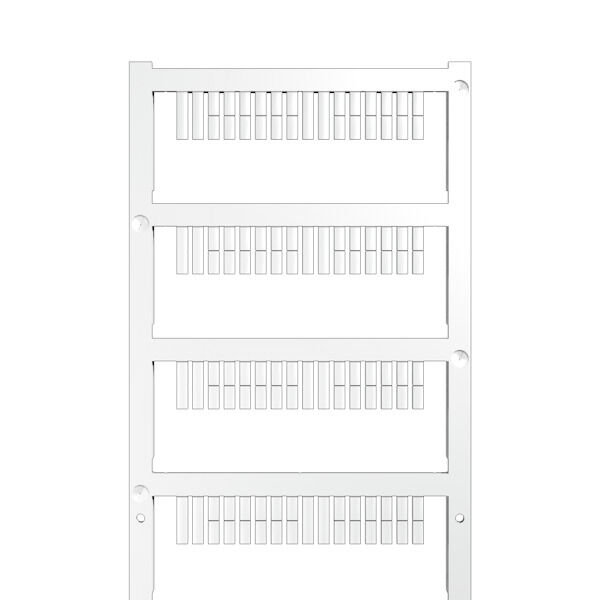

32 markers 10x2.5mm and 192 labels 5x2.5mm with predetermined breaking point

分類

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
