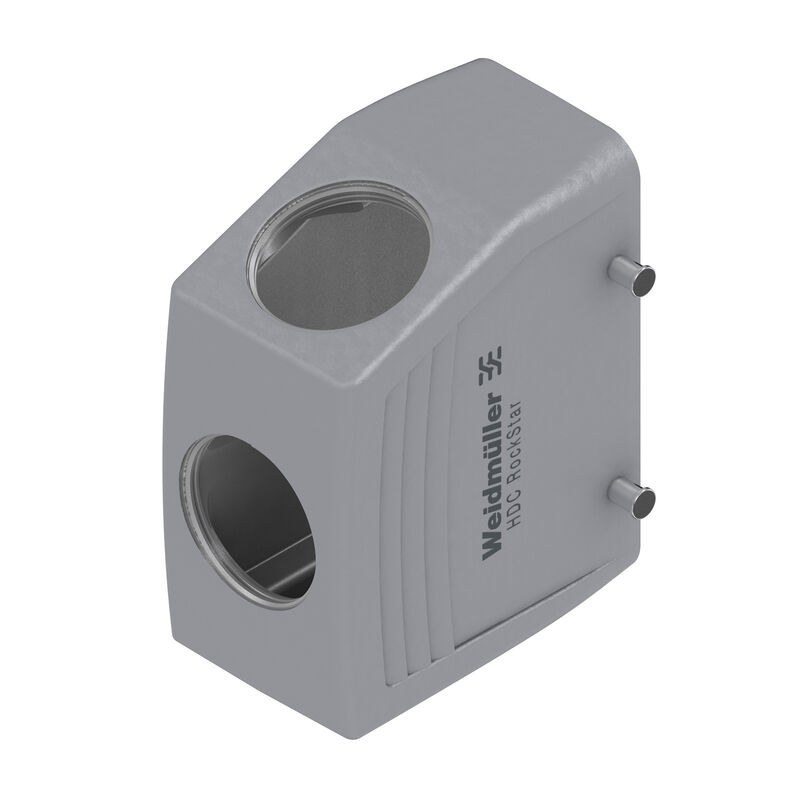

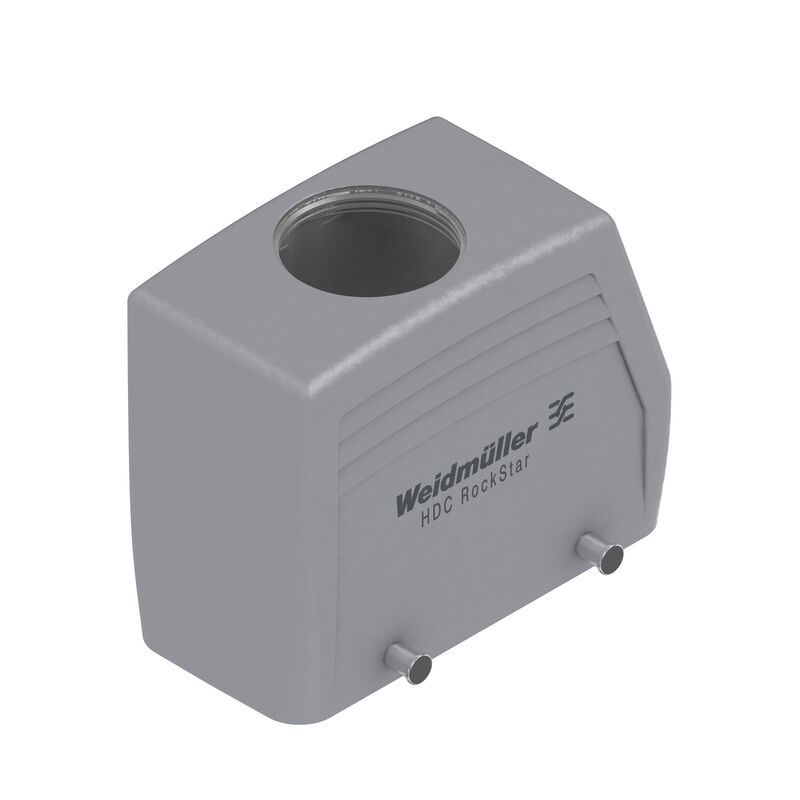

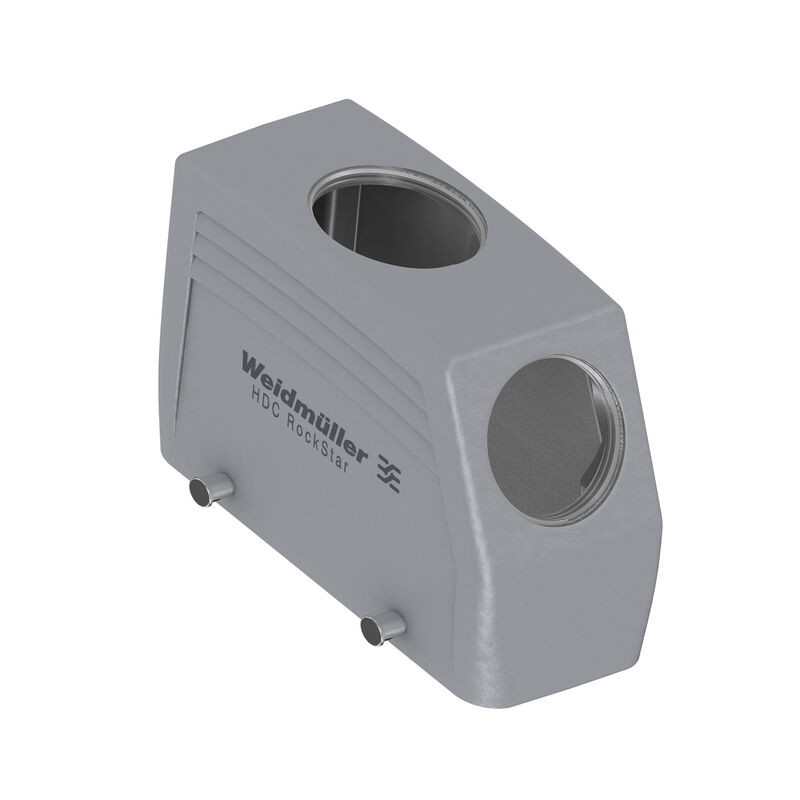

HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Plug housing, Cable entry from top, Cable entry from side, Side-locking clamp on lower side, high, Size of cable entries: M 32

Tuotteen tunnus 1131350000
Lataa tietosivu Tuotelataukset
Lisävarusteet 21 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensiones Dati generali Versión Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Plug housing, Cable entry from top, Cable entry from side, Side-locking clamp on lower side, high, Size of cable entries: M 32
Código
1131350000
Tipo
HDC 40D TBU 2M40G CS
GTIN (EAN)
4032248912858
Cantidad
1 items

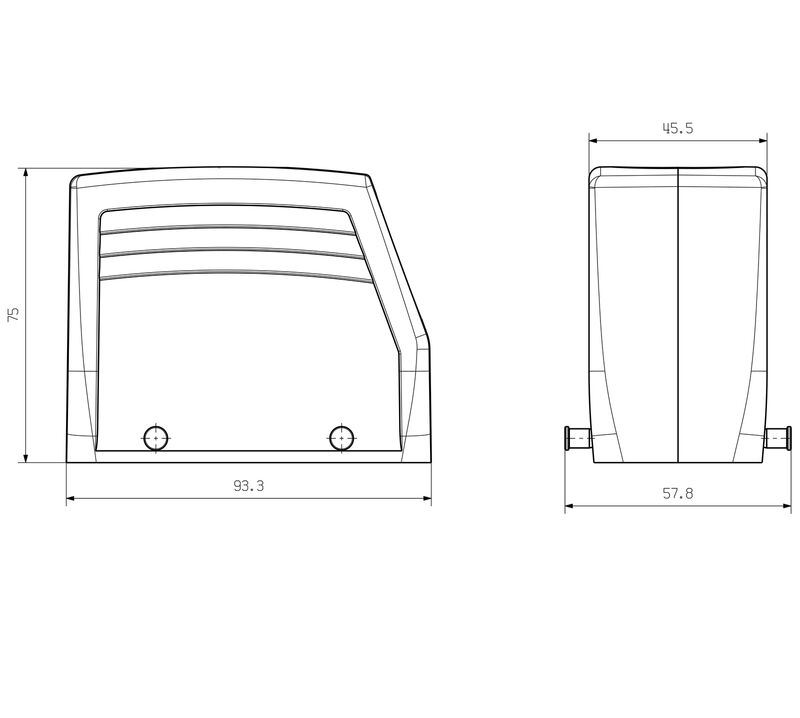

Dimensions and weights

Altura
76 mm
Height (inches)
2,992 inch
Anchura
43 mm
Width (inches)
1,693 inch
Longitud
93,3 mm
Length (inches)
3,673 inch
Net weight
250 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Resistencia química
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensiones

Anchura capota C
43 mm
Entrada de cable
con tuerca
Longitud, caja
93,3 mm
Výška pouzdra B
76 mm

Dati generali

Oberfläche
Powder coating
Protection degree
IP65
in plugged condition

Versión

BG
6
Color (RAL)
RAL 7035
Dimensiones de las entradas de cable
M 32
Diseño
alto
Entrada de cable
con tuerca
Indicado para ModuPlug®
Yes
Junta
Keine Abdichtung
Número de entradas de cable en la parte lateral
1
Número de entradas de cable en la parte superior
1
Parte superior/Parte inferior/Tapa
część górna
Prensaestopas, cantidad
0
Tamaño de instalación
6
Tapa
without cover
Tipo
вилка
Tipo de enclavamiento
Överkopplingsbygel
Tuercas (internas)
M 32
Versión, cajas
Plug housing
Cable entry from top
Cable entry from side
Versión, sistema de cierre
Side-locking clamp on lower side

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
