IE-AD-3RJ12-1:1
IE-AD-3RJ12-1:1

IE-AD-3RJ12-1:1

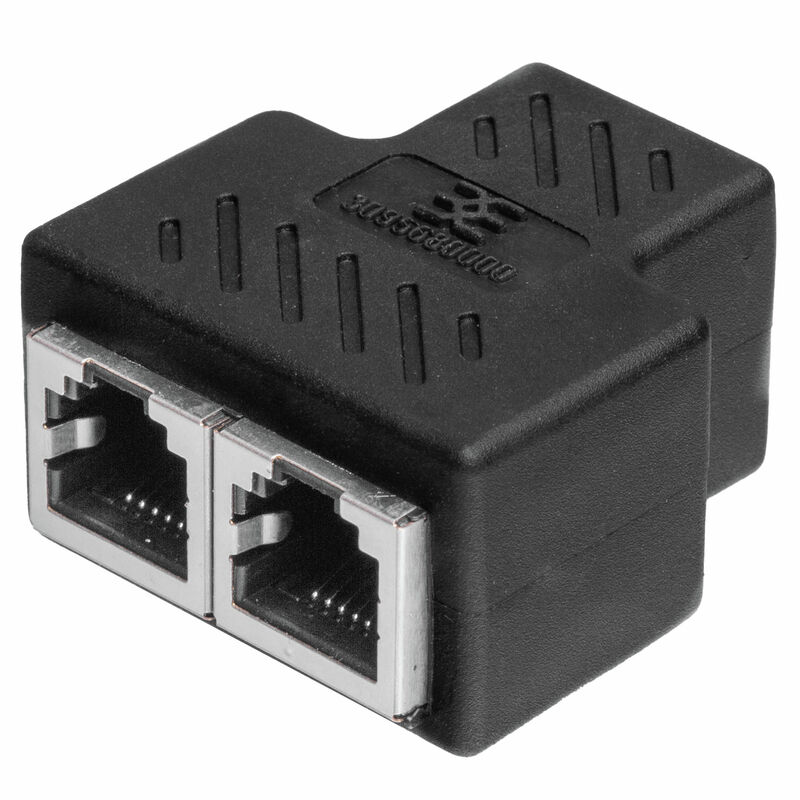

Cable splitter module, IP20

Tuotteen tunnus 3095680000
Lataa tietosivu Product Downloads
Samankaltaiset tuotteet 3
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Classifications Approvals

General ordering data

Version
Cable splitter module, IP20
Order No.
3095680000
Type
IE-AD-3RJ12-1:1
GTIN (EAN)
4099987117050
Qty.
10  items

Dimensions and weights

Net weight
37  g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Connection 1
RJ12
Connection 2
RJ12
Colour
black
Housing main material
PBT
UL 94: V-0
Contact surface
Gold over nickel
Shielding
unshielded
Protection degree
IP20
Plugging cycles
750

Electrical properties

Insulation strength
1000 MΩ at 500 V DC
Rated voltage
125  V

General standards

Connector standard
TIA-1096-A

Classifications

ETIM 6.0
EC000313
ETIM 7.0
EC000313
ETIM 8.0
EC000313
ETIM 9.0
EC000313
ETIM 10.0
EC000313
ECLASS 9.0
27-44-03-20
ECLASS 9.1
19-17-01-25
ECLASS 10.0
27-44-03-20
ECLASS 11.0
27-44-03-20
ECLASS 12.0
27-44-03-20
ECLASS 13.0
27-44-03-20
ECLASS 14.0
27-44-03-20
ECLASS 15.0
27-44-03-20

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform
