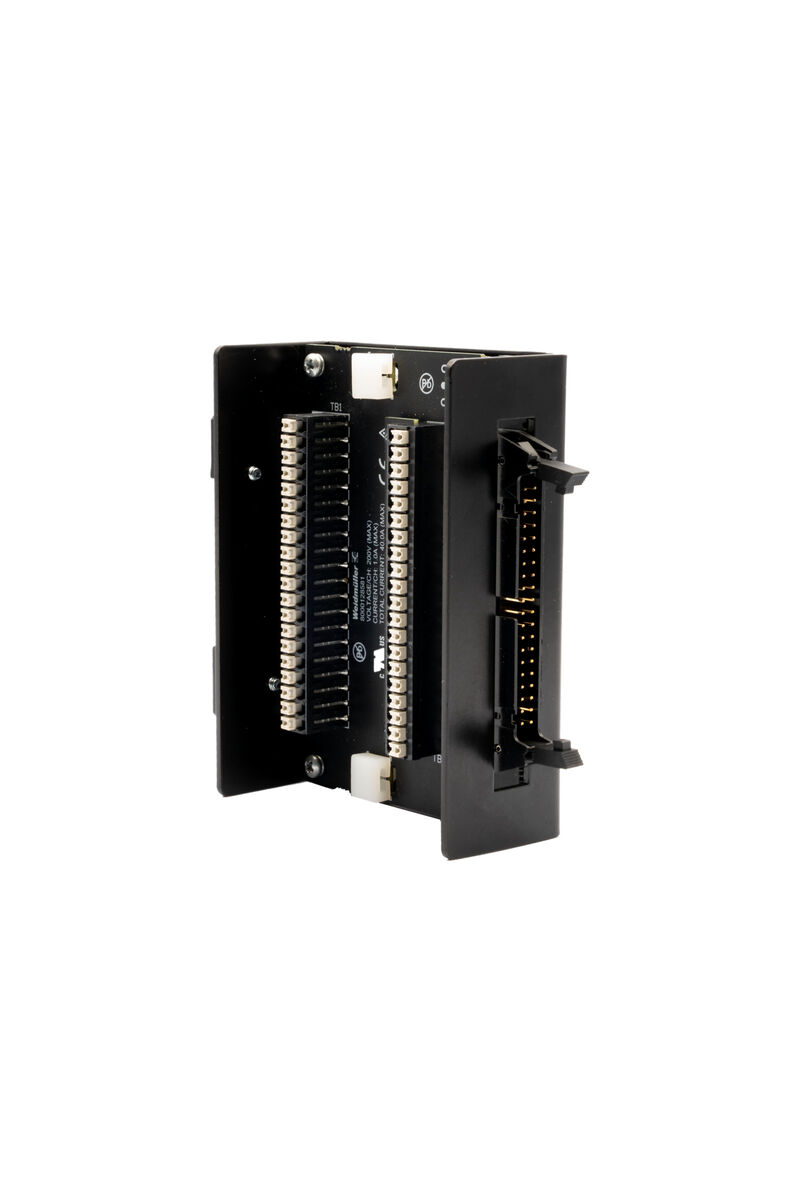

MBGE SLC500 40 POLE ADAPTER
MBGE SLC500 40 POLE ADAPTER

MBGE SLC500 40 POLE ADAPTER

Item No. 8000128581
Download data sheet Product Downloads
Related products 4
General ordering data Dimensions and weights Temperatures Rated data UL Connection data Ratings data Insulation coordination (EN50178) Classifications

General ordering data

Order No.
8000128581
Type
MBGE SLC500 40 POLE ADAPTER
GTIN (EAN)
4099986919648
Qty.
1  items

Dimensions and weights

Depth
83.2  mm
Depth (inches)
3.276  inch
Height
101.6  mm
Height (inches)
4  inch
Width
34.3  mm
Width (inches)
1.35  inch
Net weight
140  g

Temperatures

Storage temperature
-20...70 °C
Operating temperature
-20...50 °C

Rated data UL

Operating temperature UL, max.
50  °C
Operating temperature UL, min.
-20  °C
Storage temperature UL, max.
70  °C
Storage temperature UL, min.
-20  °C
Rated current Imax
40  A

Connection data

Connection to PLC
New PLC terminal block or hardwired

Ratings data

Max. current per channel
1  A

Insulation coordination (EN50178)

Surge voltage category
II

Classifications

ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
ECLASS 9.0
27-33-02-92
ECLASS 9.1
27-24-22-92
ECLASS 10.0
27-33-02-92
ECLASS 11.0
27-33-02-92
ECLASS 12.0
27-33-02-92
ECLASS 13.0
27-33-02-92
ECLASS 14.0
27-33-02-92
ECLASS 15.0
27-33-02-92
