WDK 2.5/D
Product image
WDK 2.5/D

WDK 2.5/D

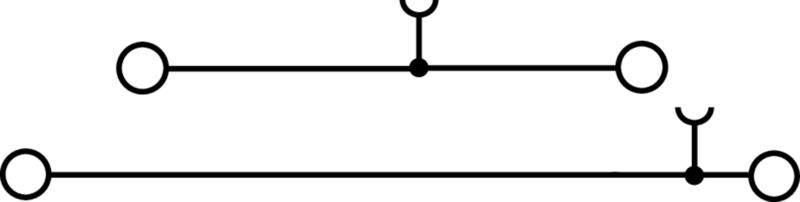

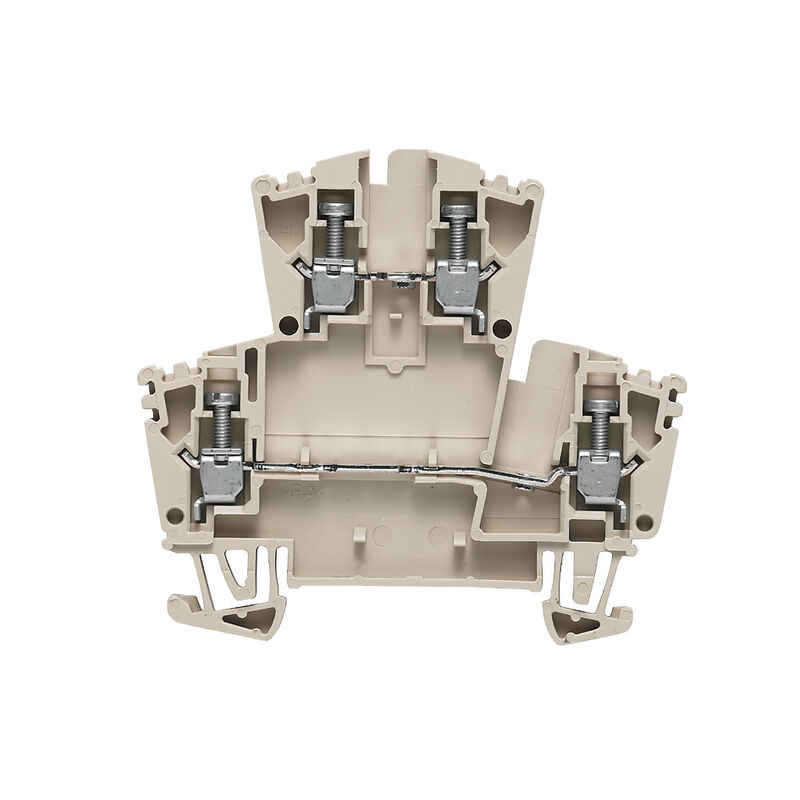

Component terminal block, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35

Ürün No. 1023200000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 28 İlgili ürünler 228
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Component Conductors for clamping (rated connection) Fuse terminals General Rating data Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Ausfuehrung
Component terminal block, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35
Best.-Nr.
1023200000
Art
WDK 2.5/D
GTIN (EAN)
4008190009380
Qty.
100 adet

Dimensions and weights

Tiefe
62,5 mm
Depth (inches)
2,461 inch
Depth including DIN rail
63 mm
Höhe
69,5 mm
Height (inches)
2,736 inch
Breite
5,1 mm
Width (inches)
0,201 inch
Net weight
11,9 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.305 kg CO2 eq.

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
2
Number of levels
2
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Component

Element type
Diode

Conductors for clamping (rated connection)

Anslutningstyp
Screw connection
Antal anslutningar
4
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,05 mm²
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0,05 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,05 mm²
Długość odizolowania
10 mm
IEC 60947-1 규격 게이지
A3
Torque level with DMS electric screwdriver
1
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,05 mm²
Вид соединения 2
Screw connection
결선 단면규격 AWG, 최대
AWG 26
결선 방향
on side
조임 토크, 최대
0,6 Nm
조임 토크, 최소
0,4 Nm

Fuse terminals

Indicación
Without LED

General

Sezione di collegamento cavo AWG, min.
AWG 26
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 26
장착 레일
TS 35
표준 규격
IEC 60947-7-1

Rating data

Rated cross-section
2,5 mm²
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
10 A
Current at maximum wires
24 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

Important note

Información de producto
The allowed continuous operating temperature must be observed

Classifications

ETIM 8.0
EC000903
ETIM 9.0
EC000903
ETIM 10.0
EC000903
ECLASS 14.0
27-25-01-14
ECLASS 15.0
27-25-01-14
