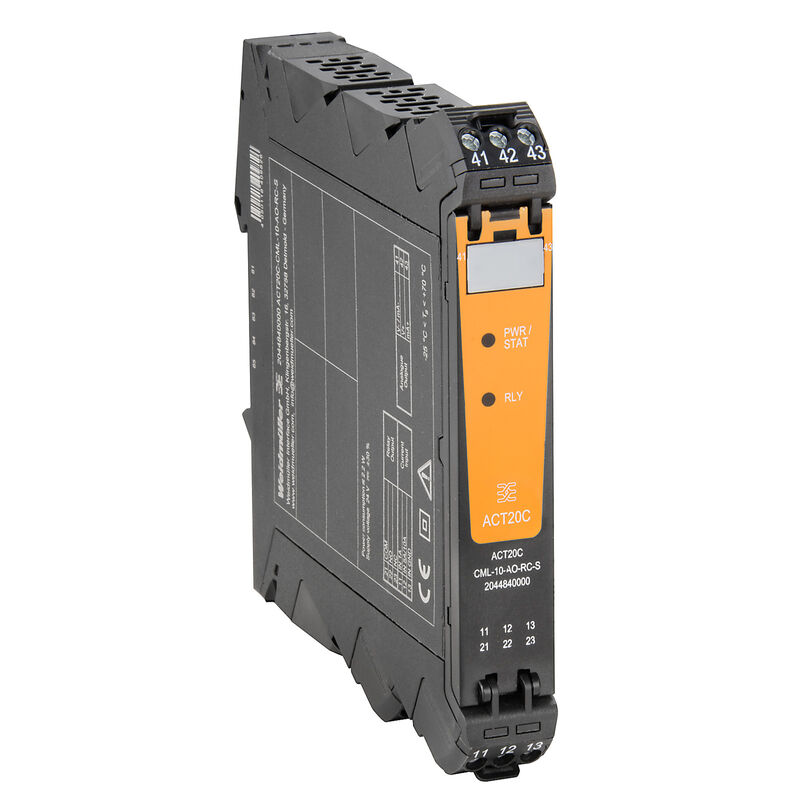

ACT20C-CML-10-AO-RC-S

Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay

Produkt ID 2044840000

Egenskaber

General ordering data

Version	Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay
Order No.	2044840000
Type	ACT20C-CML-10-AO-RC-S
GTIN (EAN)	4050118409826
Qty.	1 Styk

Dimensions and weights

Depth	113,6 mm
Depth (inches)	4,472 inch
Height	117,2 mm
Height (inches)	4,614 inch
Width	17,5 mm
Width (inches)	0,689 inch
Net weight	134 g

Temperatures

Storage temperature	-40 °C...85 °C
Humidity	5...95 %, no condensation

Probability of failure

SIL in compliance with IEC 61508	None
MTTF	130 a

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	2f6dd957-421a-46db-a0c2-cf1609156924

Communication

Configuration

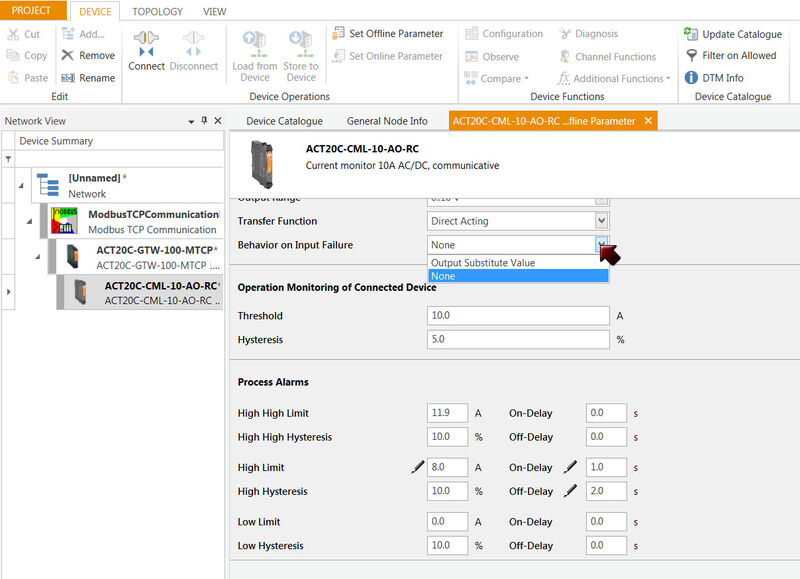

for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis

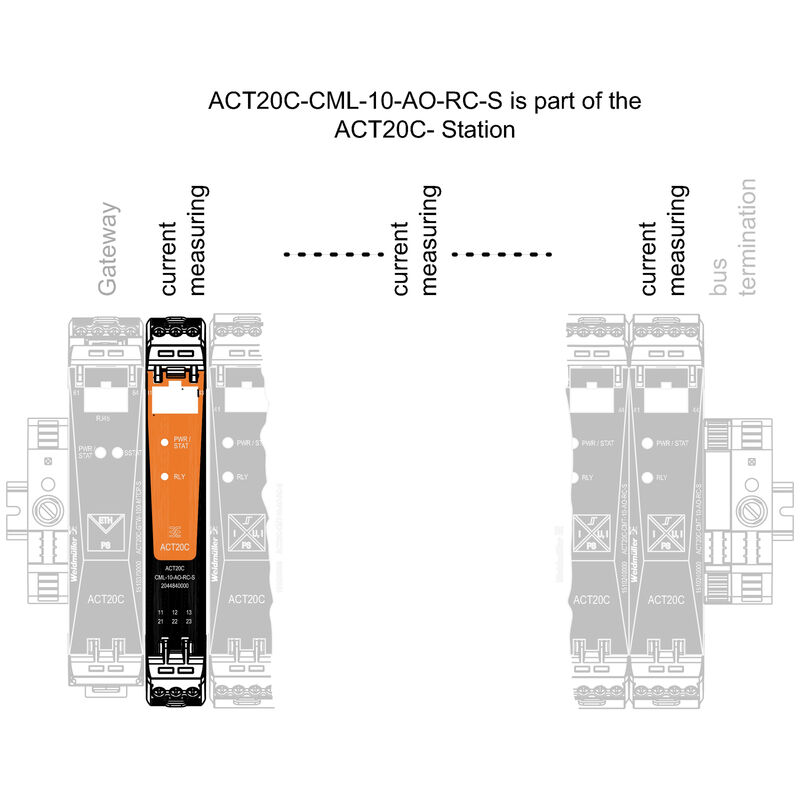

via gateway (ACT20C-GTW-100-MTCP-S)

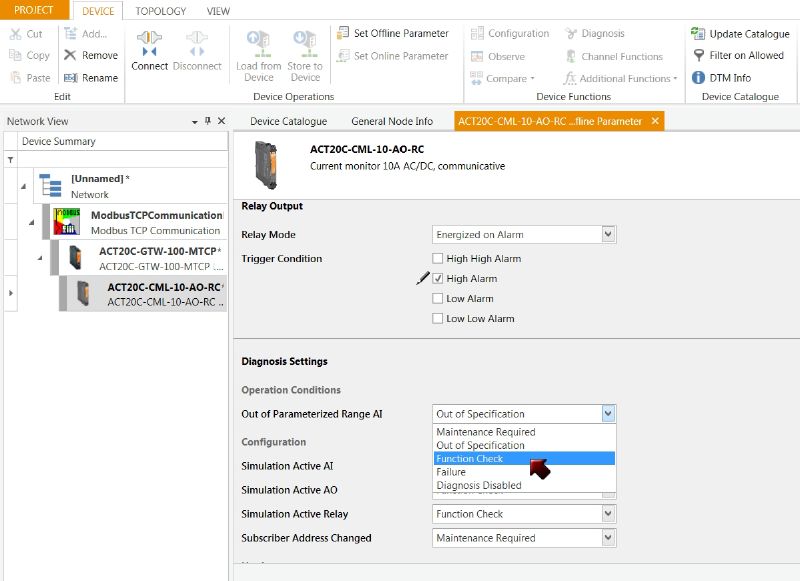

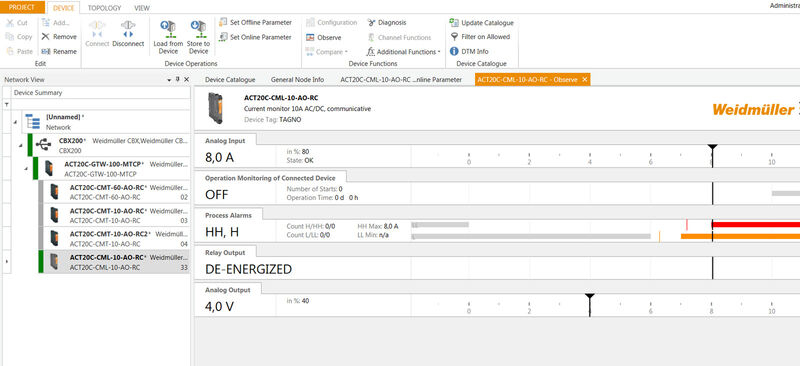

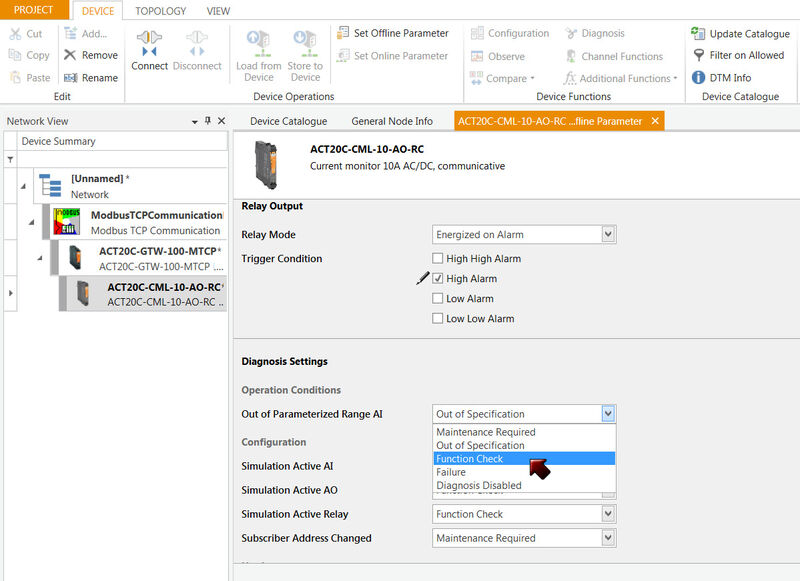

With FDT/DTM software

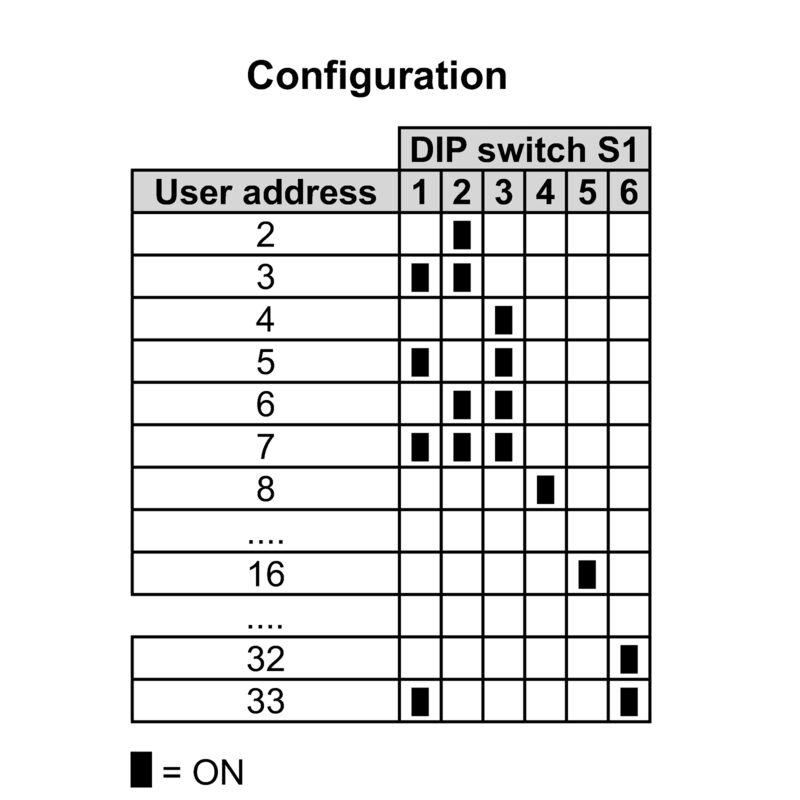

DIP switch and potentiometer

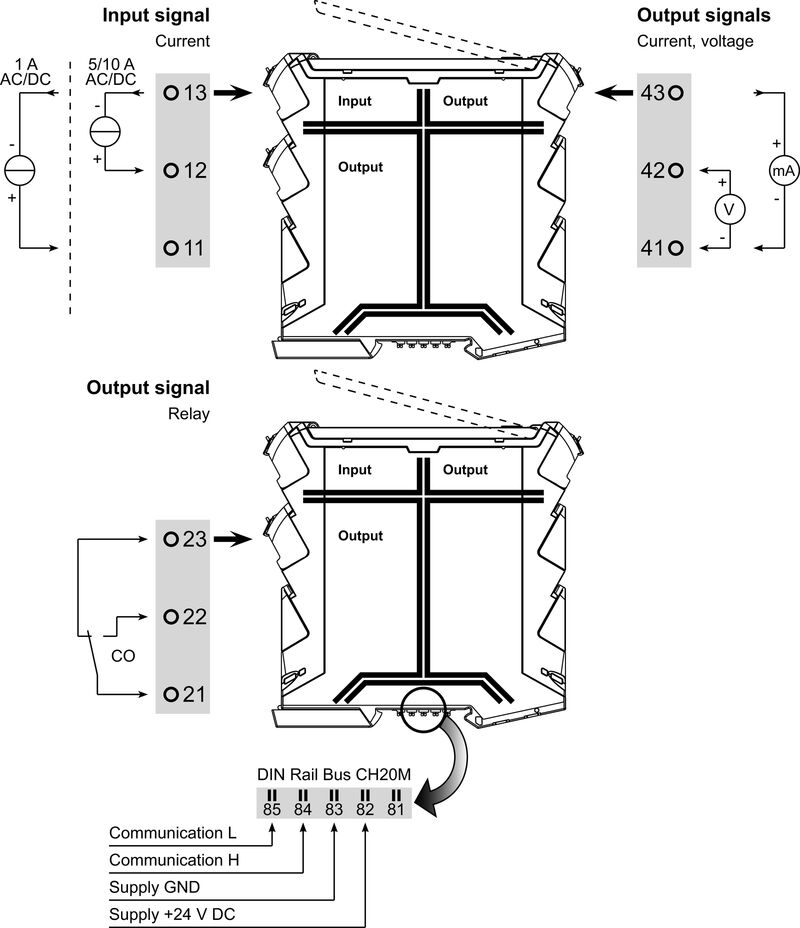

Input

Input frequency	AC: 15…400 Hz (true root mean square) AC: 50 Hz (arithmetic average)
Input measurement range	configurable 0…1/5/10 A AC (RMS) or DC
Input signal	Power cable can be connected to the terminals

Output

Load impedance current

≤ 600 Ω

Output (digital)

Max. switching voltage, AC	250 V
Max. switching voltage, DC	24 V
Rated switching current	2 A
Type	Relay, 1 CO contact Process alarms (4x) with hysteresis with alarm delay (configurable) 0…180 s

Output (analogue)

Load resistance current	≤ 600 Ω
Load resistance voltage	≥ 10 kΩ
Output current	Adjustable 0...20 mA 4...20 mA -20…+20 mA
Output voltage	Adjustable 0...10 V 2…10 V 0...5 V 1...5 V -5…+5 V -10...+10 V
Type (analogue output)	Voltage and current output (configurable)

alarm output

Switching current

5 A

General data

Accuracy	≤ ±0.3 % @ 1 A / 5 A ≤ ±0.6 % @ 10 A
Configuration	for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis via gateway (ACT20C-GTW-100-MTCP-S) With FDT/DTM software DIP switch and potentiometer
Galvanic isolation	4-way isolator; between input ⁄ output ⁄ supply ⁄ relay
Power consumption, max.	2,2 W
Protection degree	IP20
Rail	TS 35
Step response time	≤ 300 ms (RMS) ≤ 60 ms (AA)
Temperature coefficient	≤ ±100 ppm⁄K @ -25…+55 °C ≤ ±200 ppm/K @ +55…+70 °C
Voltage supply	24 V DC ± 30 %

Insulation coordination

EMC standards	IEC 61326-1
Galvanic isolation	4-way isolator; between input ⁄ output ⁄ supply ⁄ relay
Impulse withstand voltage	6 kV (1.2/50 µs)
Pollution severity	2
Rated voltage	300 V AC_rms
Surge voltage category	III
Test voltage	4 kV

Connection data

Type of connection	Screw connection
Tightening torque, min.	0,5 Nm
Tightening torque, max.	3,5 Nm
Clamping range, rated connection	1,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	2,5 mm²
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	2,5 mm²

Downloads

Approval/Certificate/Document of Conformity	[Certification DNV GL](https://mdcop.weidmueller.com/mediadelivery/asset/900_152118) [Certification UL](https://mdcop.weidmueller.com/mediadelivery/asset/900_207546) [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35446)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89471)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2044840000)
Software	[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364) [Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446)
User Documentation	[Application notes -- Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_38123) [Application notes -- Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_39939)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002475
ETIM 7.0	EC002475
ETIM 8.0	EC002475
ETIM 9.0	EC002475
ECLASS 9.0	27-21-01-23
ECLASS 9.1	27-21-01-23
ECLASS 10.0	27-21-01-23
ECLASS 11.0	27-21-01-23
ECLASS 12.0	27-21-01-23
ECLASS 13.0	27-21-01-23
ECLASS 14.0	27-21-01-23

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
