Egenskaber

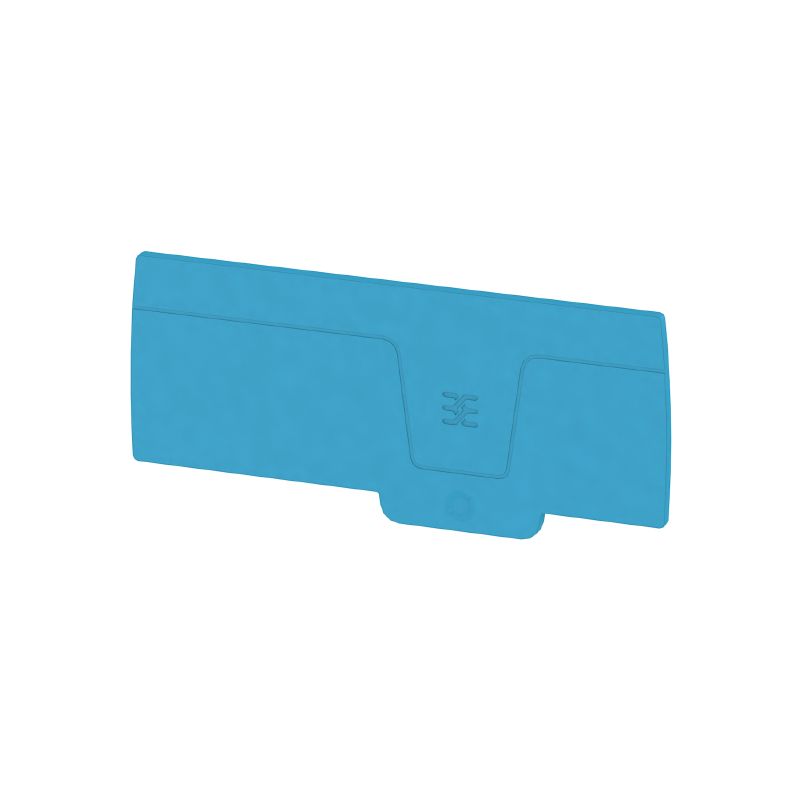

| Version | A-series, End plate |
| Order No. | 2490540000 |
| Type | AEP 3C 10/16 BL |
| GTIN (EAN) | 4050118501001 |
| Qty. | 20 Styk |
| Depth | 44,4 mm |
| Depth (inches) | 1,748 inch |
| Height | 100,23 mm |
| Height (inches) | 3,946 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 4,825 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66257) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2490540000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2490540000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2490540000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2494090000Pakningsenhed:20 Styk
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Produkt ID:2494080000Pakningsenhed:20 Styk
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
-
Produkt ID:2675050000Pakningsenhed:20 Styk
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Produkt ID:2674990000Pakningsenhed:25 Styk
PE terminal, PUSH IN, 10 mm², 1000 V, Green/yellow
-
Produkt ID:2490590000Pakningsenhed:25 Styk
PE terminal, PUSH IN, 10 mm², 1000 V, Green/yellow
-
Produkt ID:2674980000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, blue
-
Produkt ID:2674970000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, dark beige
-
Produkt ID:2675040000Pakningsenhed:20 Styk
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
-
Produkt ID:2675030000Pakningsenhed:20 Styk
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Produkt ID:2494020000Pakningsenhed:20 Styk
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Produkt ID:2490510000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, blue
-
Produkt ID:2490520000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, dark beige
-
Produkt ID:2819960000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, brown
-
Produkt ID:2819950000Pakningsenhed:25 Styk
Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, yellow
