Egenskaber

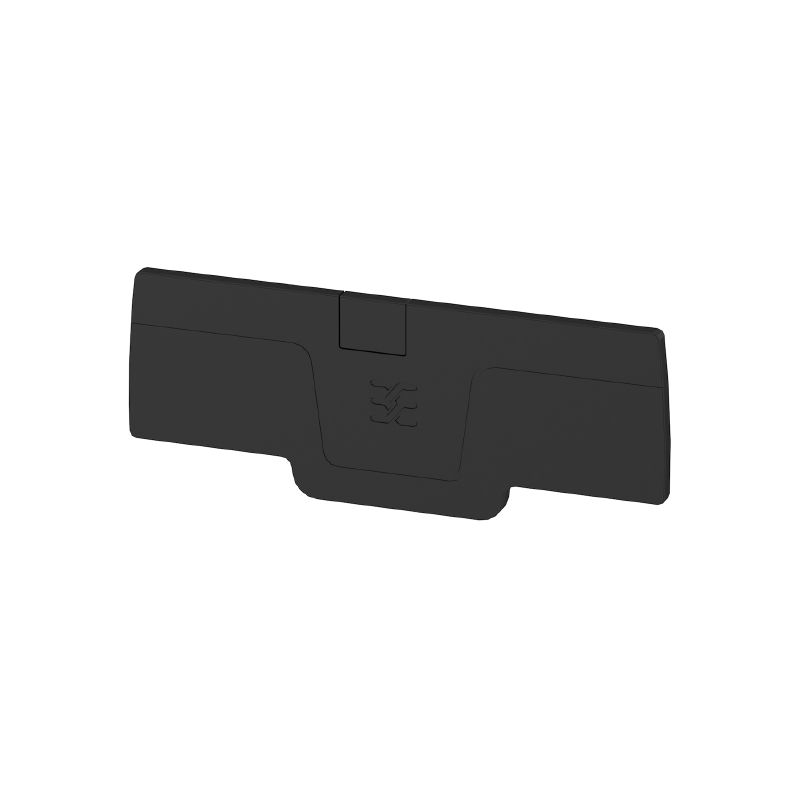

| Version | A-series, End plate |
| Order No. | 2486660000 |
| Type | AEP 4C 2.5 BK |
| GTIN (EAN) | 4050118497441 |
| Qty. | 50 Styk |
| Depth | 29,1 mm |
| Depth (inches) | 1,146 inch |
| Height | 75,55 mm |
| Height (inches) | 2,974 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 2,45 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Snap-on | Yes |
| With snap-in pegs | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39710) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2486660000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2486660000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2486660000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2799150000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, orange
-
Produkt ID:2799160000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, orange
-
Produkt ID:2674760000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, blue
-
Produkt ID:2674750000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
-
Produkt ID:2466600000Pakningsenhed:50 Styk
Fuse terminal, PUSH IN, 2.5 mm², 24 V, 10 A, black
-
Produkt ID:2466530000Pakningsenhed:50 Styk
Fuse terminal, PUSH IN, 2.5 mm², 400 V, 10 A, black
-
Produkt ID:2466610000Pakningsenhed:50 Styk
Fuse terminal, PUSH IN, 2.5 mm², 12 V, 10 A, black
-
Produkt ID:1521770000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, green
-
Produkt ID:1521730000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, yellow
-
Produkt ID:1521700000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, blue
-
Produkt ID:1521710000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, red
-
Produkt ID:2534740000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, Dark Blue
-
Produkt ID:1521720000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, orange
-
Produkt ID:2534750000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, brown
-
Produkt ID:1521820000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, black
-
Produkt ID:2003130000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, Light Grey
-
Produkt ID:1521790000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, white
-
Produkt ID:1521690000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
