Egenskaber
| Version | A-series, End plate |
| Order No. | 1990140000 |

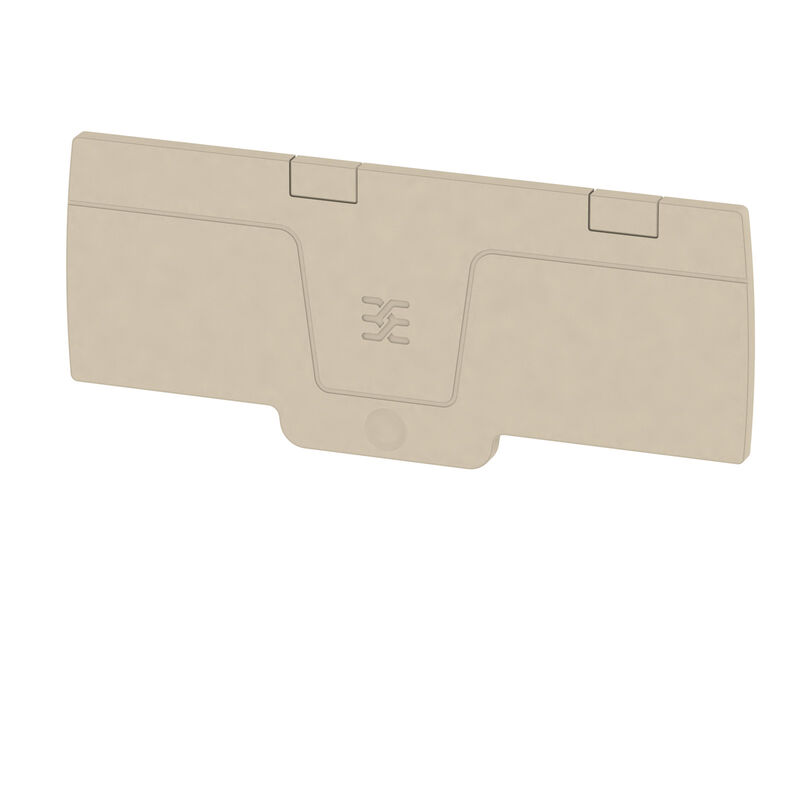

| Type | AEP AP13 |
| GTIN (EAN) | 4050118375152 |
| Qty. | 20 Styk |
| Depth | 39,75 mm |
| Depth (inches) | 1,565 inch |
| 94,7 mm | |
| Height (inches) | 3,728 inch |
| Width | 2,4 mm |
| Width (inches) | 0,094 inch |
| Net weight | 4,36 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Snap-on | Yes |
| With snap-in pegs | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65587) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1990140000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1990140000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1990140000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2675550000Pakningsenhed:50 Styk
Modular distribution terminals, PUSH IN, 1.5 mm², 250 V, 16 A, dark beige
-
Produkt ID:2675540000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 250 V, 41 A, dark beige
-
Produkt ID:2623910000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 250 V, 41 A, beige
-
Produkt ID:1988270000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 250 V, 41 A, dark beige
-
Produkt ID:1988260000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 250 V, 41 A, dark beige
-
Produkt ID:2623920000Pakningsenhed:50 Styk
Modular distribution terminals, PUSH IN, 1.5 mm², 250 V, 16 A, orange
-
Produkt ID:1988280000Pakningsenhed:50 Styk
Modular distribution terminals, PUSH IN, 1.5 mm², 250 V, 16 A, dark beige
Terminal BlocksTerminal blocks for the direct letteringApplication rangeControl voltage distribution for the direct letteringalternating6 mm² to 1.5 mm²
Terminal BlocksApplication rangeControl voltage distributionPUSH IN technologyalternating6 mm² to 1.5 mm²
