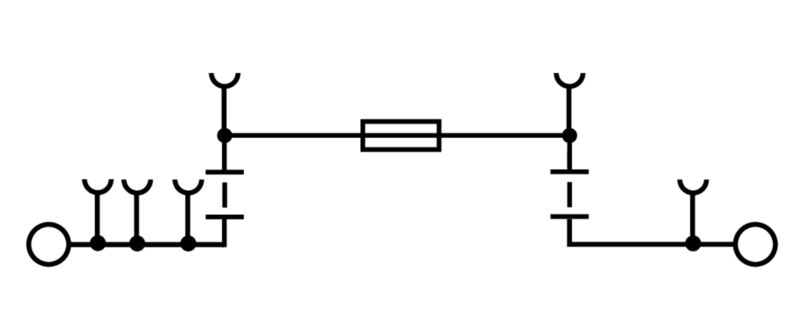

AFS 6 2C 6.3X32

Fuse terminal, PUSH IN, 6 mm², 500 V, 10 A, black

Produkt ID 2996020000

Version	Fuse terminal, PUSH IN, 6 mm², 500 V, 10 A, black
Order No.	2996020000
Type	AFS 6 2C 6.3X32
GTIN (EAN)	4099986886056
Qty.	50 Styk

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Insulating material	Wemid
Colour	black
Colour of operational elements	Bright orange
UL 94 flammability rating	V-0

End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Connection type, additional connection

PUSH IN

Blade size	0.8 x 4.0 mm
Clamping range, max.	10 mm²
Clamping range, min.	0,5 mm²
Connection cross-section, stranded, max.	10 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A5
Number of connections	2
Stripping length	12 mm
Twin wire-end ferrules, max.	2,5 mm²
Twin wire-end ferrules, min.	0,5 mm²
Type of connection	PUSH IN
Type of connection 2	PUSH IN
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

Cartridge fuse	6.3 x 32 mm (1/4 x 1 1/4")
Display	Without LED
Fuse holder (cartridge holder)	Pivoting
Leakage current, max.	0 µA
Operating voltage, max.	250 V
Type of voltage for indicator	AC/DC

Installation advice	TS 35
Rail	TS 35
Standards	IEC 60947-7-3
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 20

Rated cross-section	6 mm²
Rated voltage	500 V
Rated voltage to adjoining terminal	1.000 V
Rated DC voltage	1.000 V
Rated current	10 A
Current at maximum wires	10 A
Standards	IEC 60947-7-3
Volume resistance according to IEC 60947-7-x	0,78 mΩ
Power loss in accordance with IEC 60947-7-x	1,31 mW
Pollution severity	3
Surge voltage category	III
