Egenskaber

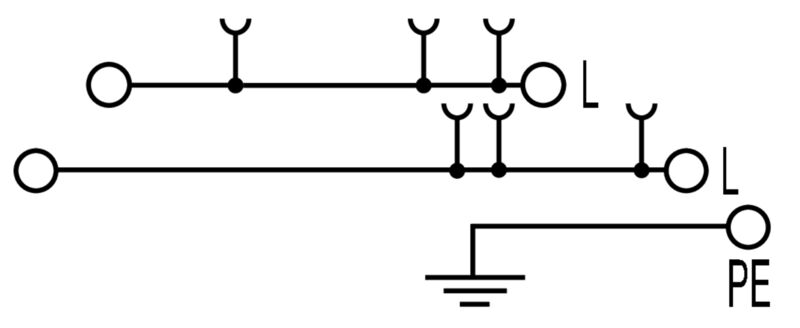

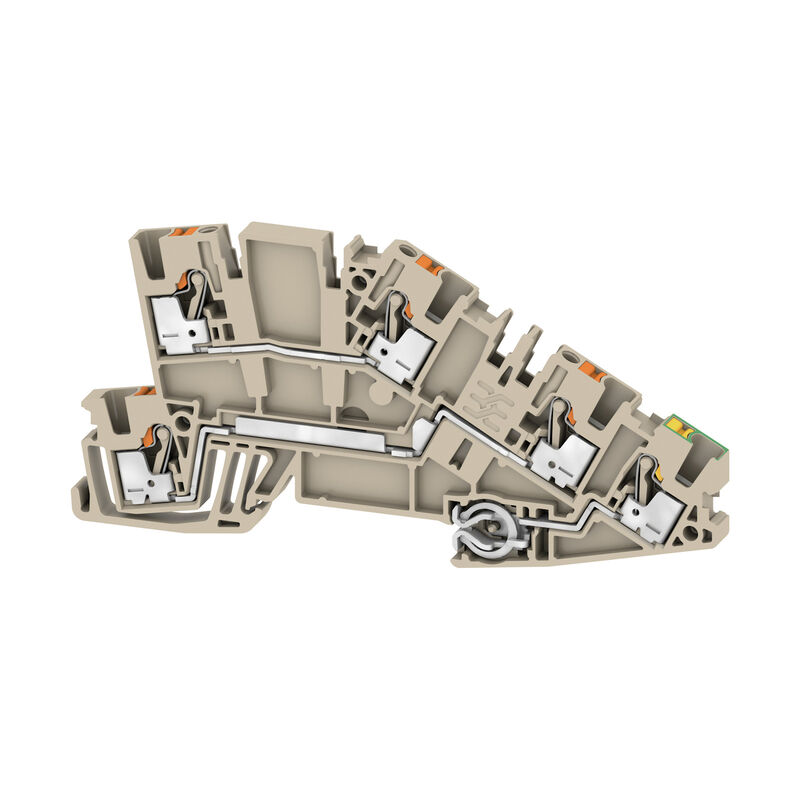

| Version | Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid |
| Order No. | 2669010000 |
| Type | AITB 2.5 L-L-PE |
| GTIN (EAN) | 4064675030591 |
| Qty. | 50 Styk |
| Depth | 50,1 mm |
| Depth (inches) | 1,972 inch |
| Height | 103 mm |
| Height (inches) | 4,055 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 17,76 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of potentials | 3 |
| Number of levels | 3 |
| Number of clamping points per level | 2 |
| Rail | TS 35 |
| N-function | No |
| PE function | Yes |
| PEN function | No |
| Open sides | right |
| Snap-on | Yes |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,14 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 5 |
| Stripping length | 10 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0,75 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 20 A |
| Current size C (CSA) | 20 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 (-7-2) |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 24 A |
| Current at maximum wires | 27 A |
| Standards | IEC 60947-7-1 (-7-2) |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Rated voltage (L / L) | 400 V |
| Rated voltage (L / N) | 250 V |
| Rated voltage (L / PE) | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 20 A |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Approval/Certificate/Document of Conformity |
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120)
[CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_252495) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_199381) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205716) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2669010000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2669010000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2669010000&norm=0) |
| Tender specification | [Ausschreibungstext AITB 2.5 L-L-PE](https://mdcop.weidmueller.com/mediadelivery/asset/900_246175) |
| User Documentation | [BPZL A-INSTA 2.5 mm² 3-tier](https://mdcop.weidmueller.com/mediadelivery/asset/900_229211) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001329 |
| ETIM 7.0 | EC001329 |
| ETIM 8.0 | EC001329 |
| ETIM 9.0 | EC001329 |
| ECLASS 9.0 | 27-14-11-25 |
| ECLASS 9.1 | 27-14-11-25 |
| ECLASS 10.0 | 27-14-11-25 |
| ECLASS 11.0 | 27-14-11-25 |
| ECLASS 12.0 | 27-14-11-25 |
| ECLASS 13.0 | 27-25-01-10 |
| ECLASS 14.0 | 27-25-01-10 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
