Egenskaber

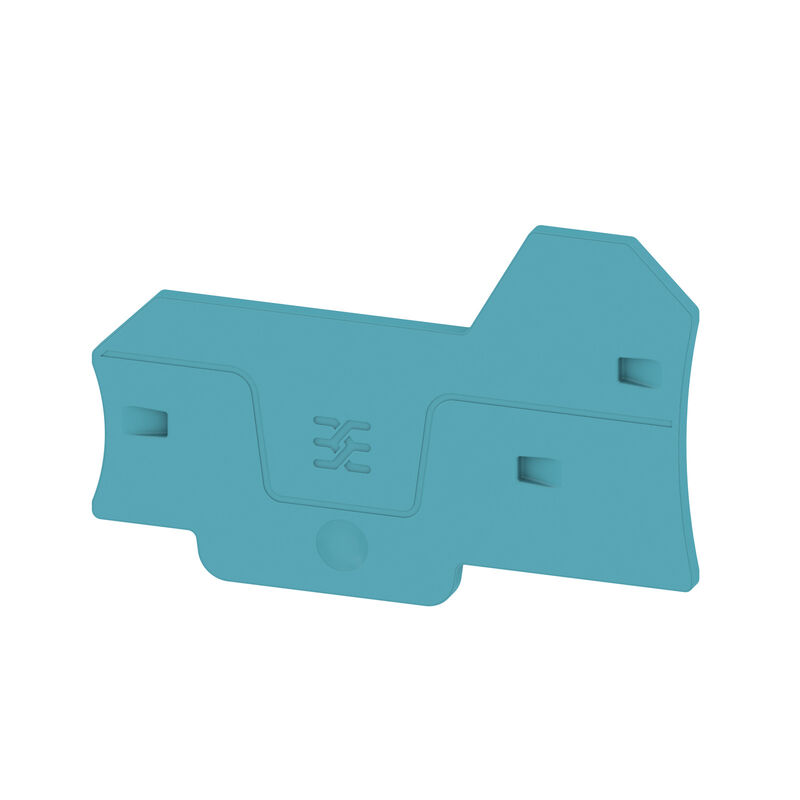

| Version | End plate (terminals), blue, Height: 69.6 mm, Width: 2.1 mm, V-0, Wemid |
| Order No. | 2871840000 |
| Type | ALEP 3C 4 BL |
| GTIN (EAN) | 4064675639961 |
| Qty. | 20 Styk |
| Depth | 45,3 mm |
| Depth (inches) | 1,783 inch |
| Height | 69,6 mm |
| Height (inches) | 2,74 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 2,486 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Snap-on | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_303681) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2871840000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2872090000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, brown, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872040000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, violet, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872030000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, green, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2871990000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, blue, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872000000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, Dark Blue, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872010000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, red, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2847720000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, dark beige, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872100000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, black/yellow, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872020000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, orange, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872050000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, black, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872080000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, Light Grey, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872070000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, yellow, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2872060000Pakningsenhed:50 Styk
Feed-through terminal block, PUSH IN, white, 4 mm², 32 A, 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:2847750000Pakningsenhed:50 Styk
PE terminal, PUSH IN, Green/yellow, 4 mm², 1000 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
