Egenskaber

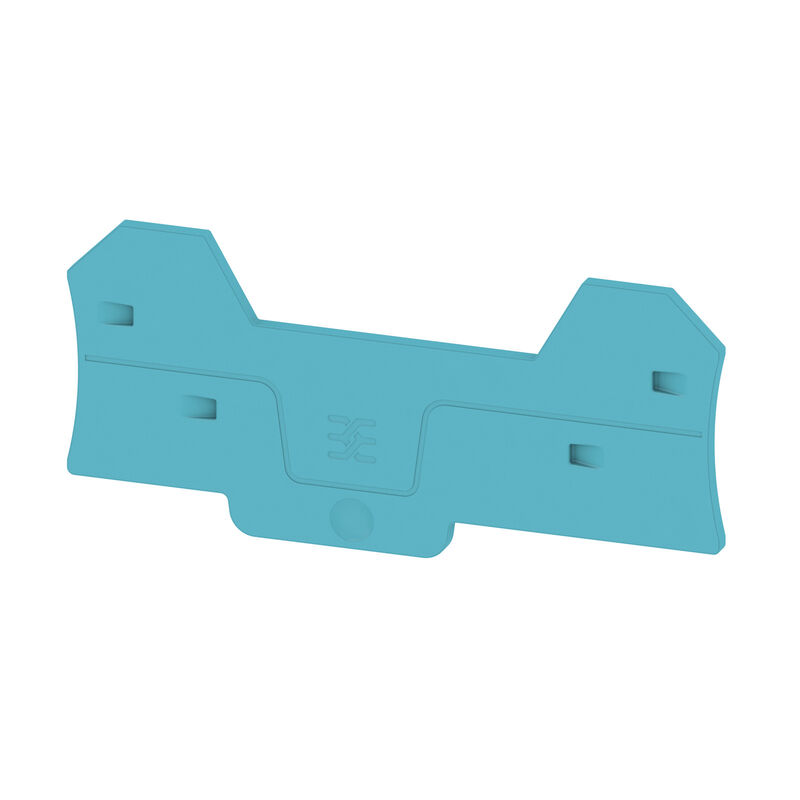

| Version | End plate (terminals), blue, Height: 88.9 mm, Width: 2 mm, V-0, Wemid |
| Order No. | 2898880000 |
| Type | ALEP DT 2.5 4C BL |
| GTIN (EAN) | 4064675904489 |
| Qty. | 20 Styk |
| Depth | 40,5 mm |
| Depth (inches) | 1,594 inch |
| Height | 88,9 mm |
| Height (inches) | 3,5 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 3,13 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Snap-on | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305165) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2898880000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2898720000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2898730000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
Terminal BlocksUniversal rangePUSH IN technologyA-SeriesModular test-disconnect terminal blocks1-tier2.5 mm²
