APG 2.5/4

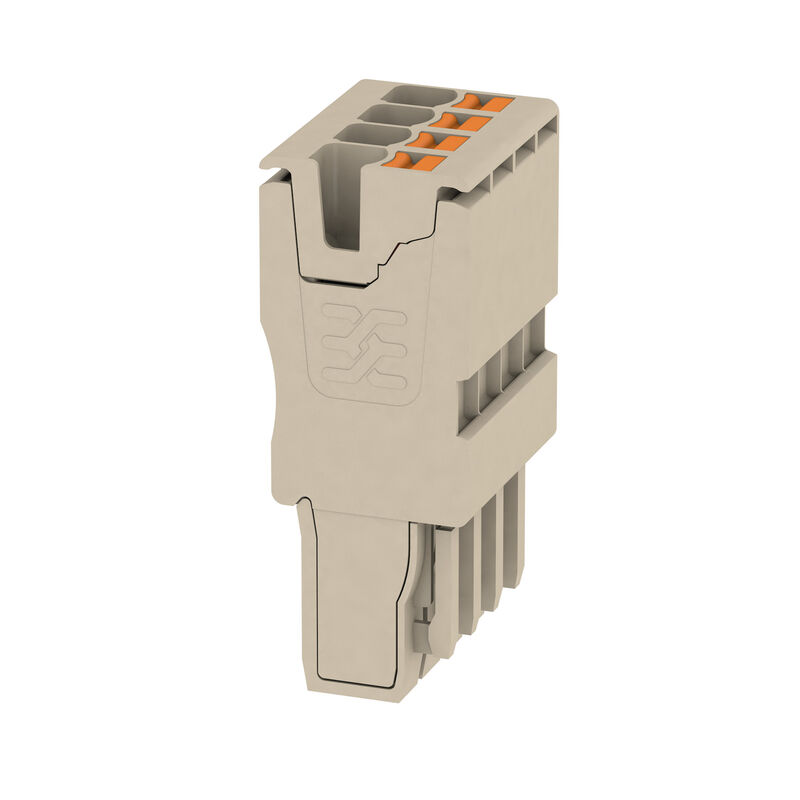

Product image
APG 2.5/4
APG 2.5/4

APG 2.5/4

Plug, 2.5 mm², 800 V, 24 A, Number of poles: 4, dark beige

Ürün No. 1513670000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 41 aksesuarıdır 19 İlgili ürünler 325
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Зажимаемые провода (расчетное соединение) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319215/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Plug, 2.5 mm², 800 V, 24 A, Number of poles: 4, dark beige
Order No.
1513670000
Type
APG 2.5/4
GTIN (EAN)
4050118321524
Кол.
25 adet

Dimensions and weights

Depth
42,5 mm
Depth (inches)
1,673 inch
Height
16,5 mm
Height (inches)
0,65 inch
Width
20,4 mm
Width (inches)
0,803 inch
순중량
13,3 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Materiale di base
Wemid
Colori
dark beige
Classe d'infiammabilità UL 94
V-0

System specifications

Количество независимых точек подключения
4
Number of levels
1

Зажимаемые провода (расчетное соединение)

2,5 mm²
Blade size
6 x 3,5 mm
Clamping range, min.
0,14 mm²
Connection direction
top
Měřidlo podle IEC 60947-1
A3
Number of connections
4
Průřez propojení AWG, max.
AWG 12
Section de raccordement du conducteur, souple, max.
2,5 mm²
Sezione di collegamento cavo, nucleo rigido, max.
2,5 mm²
Sezione di collegamento cavo, nucleo rigido, min.
0,14 mm²
Sezione di collegamento, semirigida, min.
0,14 mm²
Stripping length
10 mm
Type of connection
PUSH IN
Vezeték csatlakozási keresztmetszet, többeres, névleges csatlakozás, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²

CSA rating data

Corrente Gr B (CSA)
20 A
Corrente Gr C (CSA)
20 A
Corrente Gr D (CSA)
5 A
N° certificato (CSA)
200039-70089609
Sezione cavo max (CSA)
12 AWG
Sezione cavo min (CSA)
28 AWG
Tensione Gr B (CSA)
600 V
Tensione Gr C (CSA)
600 V
Tensione Gr D (CSA)
600 V

General

Number of poles
4
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28

Rating data

Sezione di dimensionamento
2,5 mm²
Номинальное напряжение
800 V
Tensione DC nominale
800 V
Corrente nominale
24 A
Ток при макс. проводнике
24 A
Normy
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Potenza dissipata secondo IEC 60947-7-x
0,77 W
Classe di sovratensione
III
Grado di lordura
3

UL rating data

Corrente Gr B (cURus)
20 A
Corrente Gr C (cURus)
20 A
Corrente Gr D (cURus)
5 A
Grandezza conduttore Factory wiring max (cURus)
12 AWG
Grandezza conduttore Factory wiring min (cURus)
28 AWG
Grandezza conduttore Field wiring max (cURus)
12 AWG
Grandezza conduttore Field wiring min (cURus)
28 AWG
N° certificato (cURus)
E60693
Tensione Gr B (cURus)
600 V
Tensione Gr C (cURus)
600 V
Tensione Gr D (cURus)
600 V

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
