Egenskaber
| Version | Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66 |
| Order No. | 2584680000 |

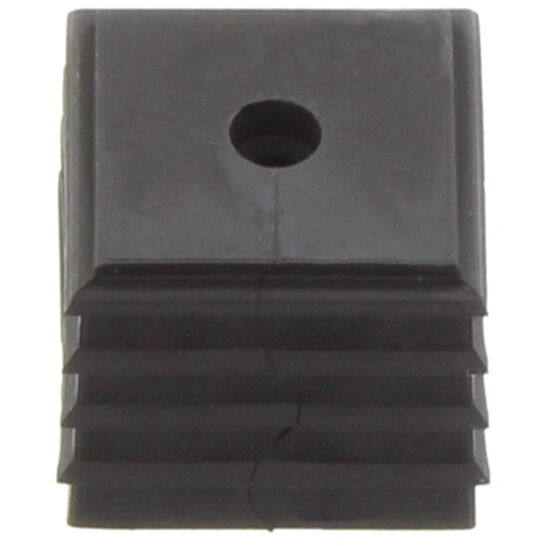

| Type | CABTITE SE 4-5 SML BK |
| GTIN (EAN) | 4050118616194 |
| Qty. | 10 Styk |
| Depth | 17,7 mm |
| Depth (inches) | 0,697 inch |
| Height | 20,3 mm |
| Height (inches) | 0,799 inch |
| Width | 20,3 mm |
| Width (inches) | 0,799 inch |
| Net weight | 6,2 g |
| Operating temperature | -40 °C...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Halogen | No |
| Material | TPE |
| Outer cable diameter, max. | 5 mm |
| Outer cable diameter, min. | 4 mm |
| Protection degree | IP66 |
| Sealing element | 1 small sealing element |
| Silicone | No |
| UL 94 flammability rating | HB |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Cable entry system](https://mdcop.weidmueller.com/mediadelivery/asset/900_252380) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72172) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2584680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2584680000) |
| User Documentation | [Cabtite Installation Instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_72923) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000879 |
| ETIM 7.0 | EC000879 |
| ETIM 8.0 | EC000879 |
| ETIM 9.0 | EC000879 |
| ECLASS 9.0 | 27-14-44-21 |
| ECLASS 9.1 | 27-14-44-21 |
| ECLASS 10.0 | 27-14-44-21 |
| ECLASS 11.0 | 27-14-44-21 |
| ECLASS 12.0 | 27-14-08-07 |
| ECLASS 13.0 | 27-14-08-07 |
| ECLASS 14.0 | 27-14-08-07 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
