Egenskaber

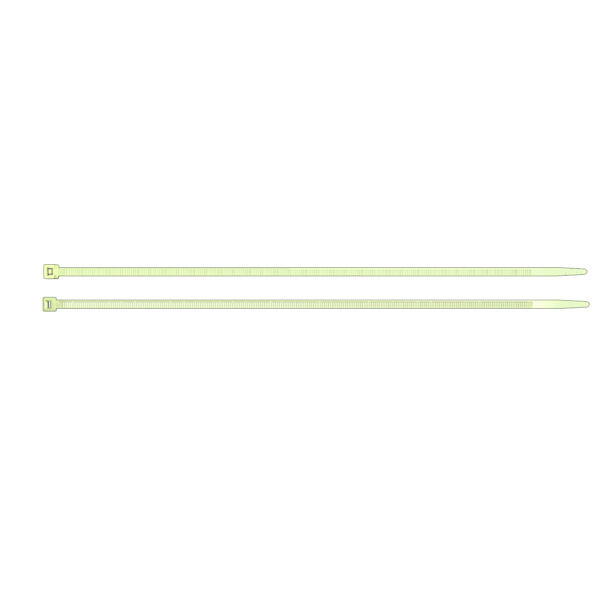

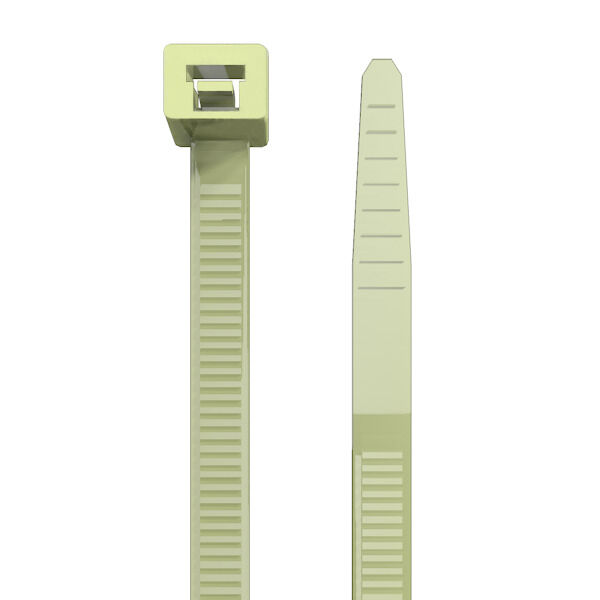

| Version | Cable ties, 2.5 x 98 mm, Polyamide 66, 80 N |
| Order No. | 2659430000 |
| Type | CB-HTR 98/2,5 NC |
| GTIN (EAN) | 4050118682892 |
| Qty. | 100 Styk |
| Height | 98 mm |
| Height (inches) | 3,858 inch |
| Width | 2,5 mm |
| Width (inches) | 0,098 inch |
| Net weight | 0,24 g |
| Operating temperature range | -40...125 °C |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Bundle diameter, max. | 21 mm |
| Bundle diameter, min. | 1 mm |
| Cable diameter, max. | 21 mm |
| For re-opening | No |
| Halogen | No |
| Material | Polyamide 66 |
| Operating temperature range, max. | 125 °C |
| Operating temperature range, min. | -40 °C |
| Tensile strength | 80 N |
| Tensile strength (Pound-force) | 18 lbf |
| UL 94 flammability rating | V-2 |
| UV-resistant | No |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_102723) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 | EC000046 |
| ETIM 8.0 | EC000046 |
| ETIM 9.0 | EC000046 |
| ECLASS 9.0 | 27-14-07-02 |
| ECLASS 9.1 | 27-14-07-02 |
| ECLASS 10.0 | 27-14-07-02 |
| ECLASS 11.0 | 27-14-07-02 |
| ECLASS 12.0 | 27-14-07-02 |
| ECLASS 13.0 | 27-14-07-02 |
| ECLASS 14.0 | 27-14-07-02 |
| Approvals |  |
| ROHS | Conform |
