Egenskaber
| Version | CUBESERIES, Cross-connector |
| Order No. | 3052660000 |

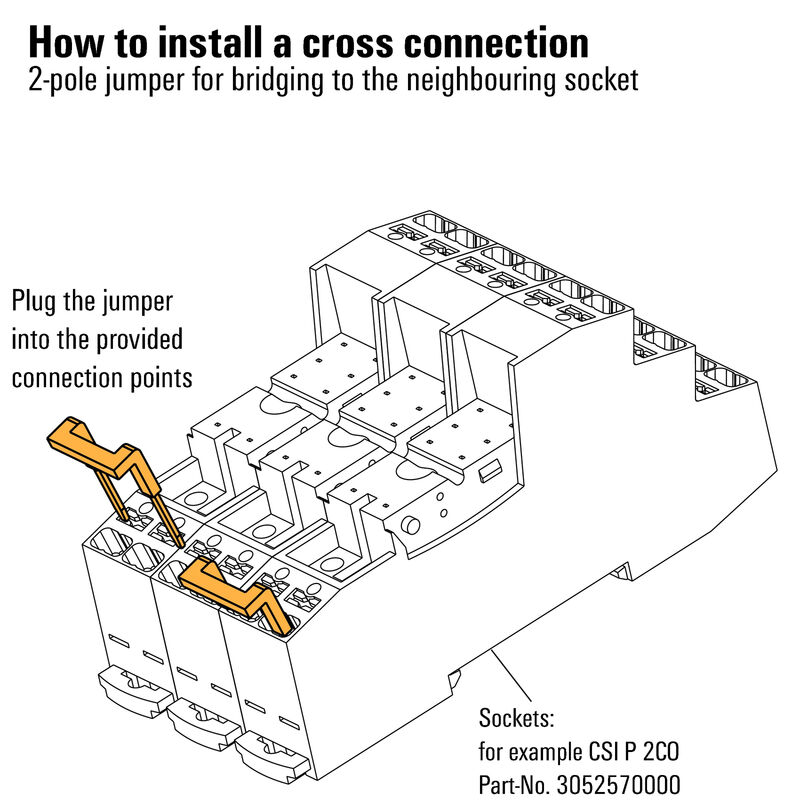

| Type | CXI CCP 2P BL |
| GTIN (EAN) | 4099987022484 |
| Qty. | 20 Styk |
| Net weight | 0,75 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated current | 10 A |
| Insulation | Yes |
| Touch-safe protection | Yes |
| Colour | blue |
| Number of cross-connected terminals | 2 |
| Number of poles | 2 |
| Type of mounting | Plugged |
| Version | cannot be cut to length |
| Rated current (UL) | 10 A |
| Version | cannot be cut to length |
| Colour | blue |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_321798) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:3052390000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052350000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052410000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052360000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052400000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052370000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052380000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 16 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052430000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052420000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052460000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052470000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052490000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052450000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052440000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 8 A, Plug-in connection, Test button available: No
-
Produkt ID:3052570000Pakningsenhed:20 Styk
CUBESERIES, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, PUSH IN
-
Produkt ID:3052540000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052500000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052550000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052510000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052560000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052530000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052520000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
-
Produkt ID:3052330000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052280000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052340000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052290000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052320000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052310000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No
-
Produkt ID:3052300000Pakningsenhed:10 Styk
CUBESERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No
