ELS 6/30 MC SDR 1CRDX16

ELS 6/30 MC SDR 1CRDX16

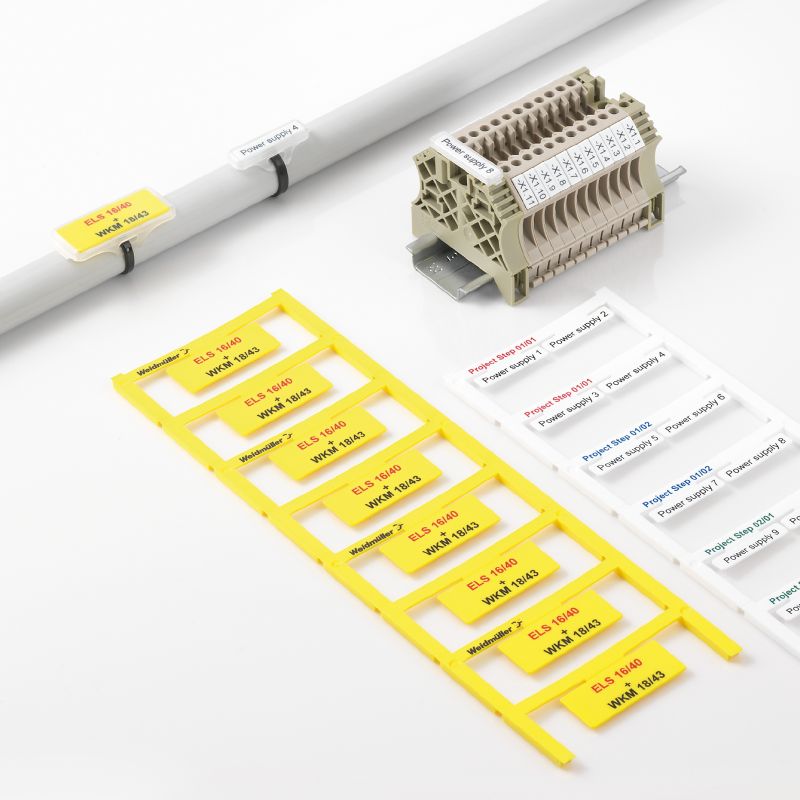

ELS, Insert markers, 7 - 115 mm, 30 x 6 mm, To customer specification

Produkt ID 1045660000
Download datablad Product Downloads Engineering Support
Tilbehør 2 Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Datos generales Segnafili e segnacavi Classifications

Approvals

ROHS
Conform

General ordering data

Version
ELS, Insert markers, 7 - 115 mm, 30 x 6 mm, To customer specification
Order No.
1045660000
Type
ELS 6/30 MC SDR
GTIN (EAN)
4032248779642
Qty.
16 Styk

Dimensions and weights

Depth
0,8 mm
Depth (inches)
0,031 inch
Height
30 mm
Height (inches)
1,181 inch
Width
6 mm
Width (inches)
0,236 inch
Net weight
0,69 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.011 kg CO2 eq.

Datos generales

Basic material
Polyamide 66
Colour
selon demande du client
Colour of printing
fekete
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
Nej
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Number per sheet
16
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Počet značek na kombinaci
1 MultiCard = Insert markers
Printed characters
Requires M-Print PRO File
Printing method
MC Laser
Type of printing
To customer specification
UL 94 flammability rating
V-2
Version
halogen-free
Width
6 mm

Segnafili e segnacavi

Conductor O.D.
7 - 115 mm
Conductor O.D., max.
115 mm
Conductor O.D., min.
7 mm
Halogen
Нет

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
