Egenskaber
| Order No. | 1986040000 |

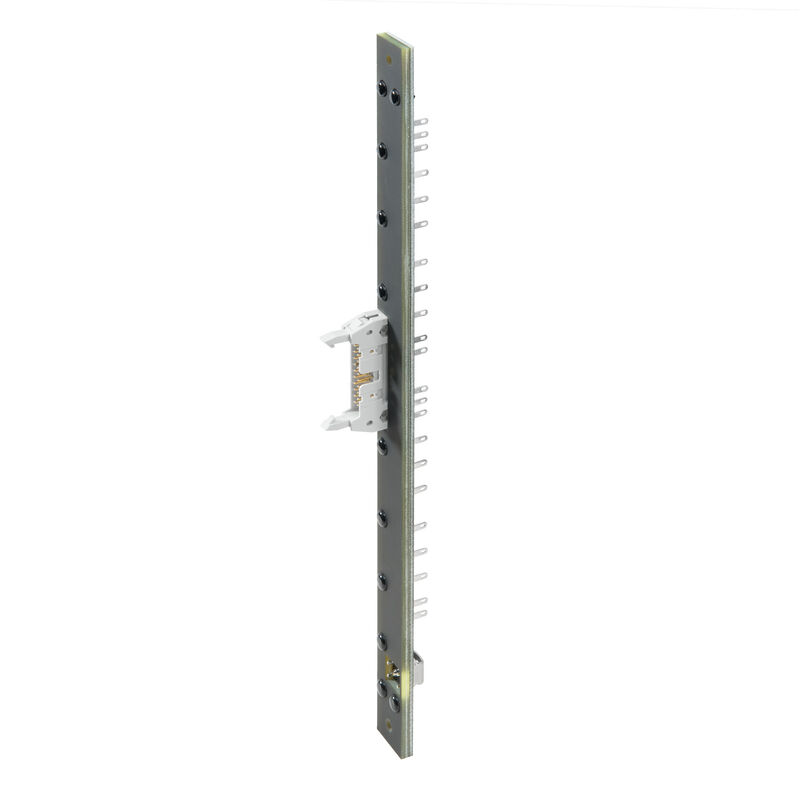

| Type | FAD S5135 HE20 16IO R |
| GTIN (EAN) | 4050118371130 |
| Qty. | 1 Styk |
| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 283 mm |
| Height (inches) | 11,142 inch |
| Width | 20 mm |
| Width (inches) | 0,787 inch |
| Net weight | 126 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9d5ff7ee-74dc-449b-a1db-a29604b9b3e9 |
| Connection (field side) | Plug-in connectors according to IEC 60603-13 / DIN 41651 20p |
| Operating voltage | 30 V AC / 60 V DC |
| Max. current per channel | 1 A |
| Max. current per byte | 2 A |
| Total operating current | 3 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | < 50 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Insulation test voltage AC | 0,35 kV |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153611) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1986040000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1986040000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002584 |
| ETIM 7.0 | EC002584 |
| ETIM 8.0 | EC002584 |
| ETIM 9.0 | EC002584 |
| ECLASS 9.0 | 27-33-02-92 |
| ECLASS 9.1 | 27-24-22-92 |
| ECLASS 10.0 | 27-33-02-92 |
| ECLASS 11.0 | 27-33-02-92 |
| ECLASS 12.0 | 27-33-02-92 |
| ECLASS 13.0 | 27-33-02-92 |
| Approvals |  |
| ROHS | Conform |
