FFH S1/32H F1 B RL
Product image

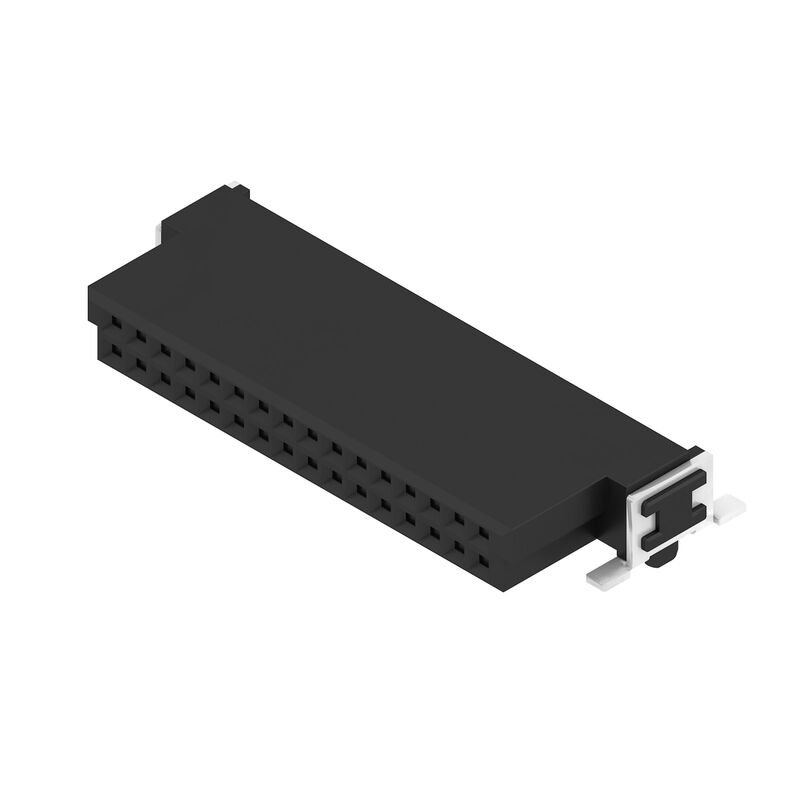

FFH S1/32H F1 B RL
Product image
FFH S1/32H F1 B RL
FFH S1/32H F1 B RL
FFH S1/32H F1 B RL
FFH S1/32H F1 B RL
Detailed drawing
FFH S1/32H F1 B RL
Derating curve
FFH S1/32H F1 B RL

FFH S1/32H F1 B RL

Dette produkt er snart ikke længere tilgængeligt.

Sidste ordre dato: /Date(1798671600000)/

PCB 플러그인 커넥터, 암형 헤더, SMD 용접 결선, 피치(mm)(P): 1.27 mm, 극 수: 32, 90°, Tape

Produkt ID 2747470000
Download datablad Engineering-support Produktdownloads
Modstykker 3 Anvendte produkter 9
Agréments 일반 주문 데이터 Dimensions et poids 환경 제품 규정 준수 Especificaciones del sistema Anyagjellemzők IEC規格に準拠した公称データ Rated data acc. to UL 1977 Csomagolás Ważna informacja Klassificeringar

Agréments

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

일반 주문 데이터

Version
PCB 플러그인 커넥터, 암형 헤더, SMD 용접 결선, 피치(mm)(P): 1.27 mm, 극 수: 32, 90°, Tape
Order No.
2747470000
Type
FFH S1/32H F1 B RL
GTIN (EAN)
4064675000785
Qty.
560 Styk
Product data
IEC: / 2.8 A
UL: 150 V
Packaging
Tape
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1798671600000)/

Dimensions et poids

Depth
10.9 mm
Depth (inches)
0.429 inch
Height
3.7 mm
Высота (в дюймах)
0.146 inch
Width
25.4 mm
Width (inches)
1 inch
Net weight
4.021 g

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

Especificaciones del sistema

Transmission rate
3.125 Gbit/s
Product family
OMNIMATE Signal - Board-to-Board
Type of connection
Соединение с платой
Mounting onto the PCB
SMD solder connection
Pitch in mm (P)
1.27 mm
Pitch in inches (P)
0.05 "
Outgoing elbow
90°
Number of poles
32
Number of solder pins per pole
1
Coplanarity:
0.1 mm
Number of rows
1
Pin series quantity
2
Protection degree
IP20
Volume resistance
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0.6 N
Pulling force/pole, max.
0.6 N

Anyagjellemzők

Insulating material
LCP
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Insulation resistance
≥ 10¹⁰ Ω
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Cu-alloy
Contact surface
Gold over nickel
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-55 °C
Operating temperature, max.
125 °C

IEC規格に準拠した公称データ

Rated current, min. number of poles (Tu=20°C)
2.8 A
Clearance, min.
0.4 mm
Creepage distance, min.
0.4 mm

Rated data acc. to UL 1977

Reference to approval values
Specifications are maximum values, details - see approval certificate.
Rated voltage (UL 1977) (obsolete)
150 V

Csomagolás

Packaging
Tape
VPE length
350 mm
VPE width
340 mm
VPE height
135 mm

Ważna informacja

IPC conformity
Zgodność: produkty są projektowane, wytwarzane oraz dostarczane zgodnie z uznanymi normami międzynarodowymi, właściwości produktów są zgodne z gwarantowanymi w karcie katalogowej lub ich jakość wykonania jest zgodna z wymogami klasy 2 wg IPC-A-610. Na życzenie mogą być ocenione dalsze wymagania dotyczące produktów.

Klassificeringar

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
