Egenskaber
| Version | Interface, RS, 1-wire, Tension-clamp connection |
| Order No. | 1222990000 |

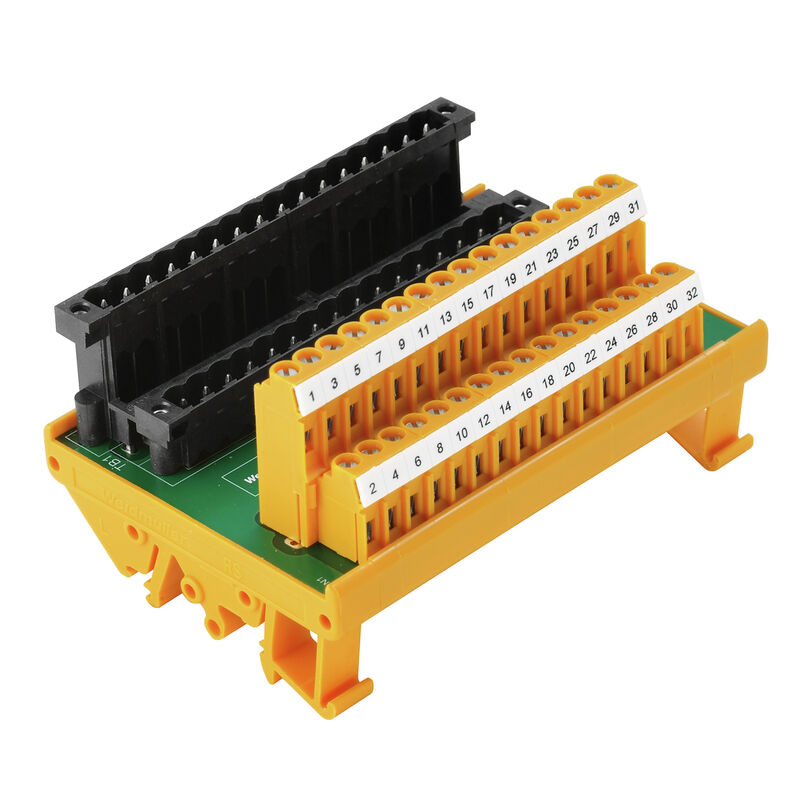

| Type | FTA-C300-16AO-SH-Z |
| GTIN (EAN) | 4050118006278 |
| Qty. | 1 Styk |
| Available until | 20.05.2014 |
| Depth | 56 mm |
| Depth (inches) | 2,205 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 105 mm |
| Width (inches) | 4,134 inch |
| Net weight | 153,12 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2e4a427f-c282-4ebf-8ee2-8af7c9348f4e |
| Operating temperature UL, max. | 50 °C |
| Operating temperature UL, min. | -25 °C |
| Rated current IN | 1 A |
| Rated voltage UN | 250V AC / 350 V DC |
| LED status display per channel | No |
| Disconnection per channel | No |
| Voltage point of measurement | No |
| Current-measuring testpoint | No |
| Type of test point | No |
| Switch | No |
| Fuse per channel | No |
| LED status of the supply voltage | No |
| Power supply fuse | No |
| Connection (field side) | LM2NZF 5.08mm |
| Connection on control side | SLDV-THR 5.08 |
| Number of poles (control side) | 32-pole female |
| Protective earth connection | M4 round terminal |
| Wiring system | 1-wire |
| Operating voltage | 250 V AC / 350 V DC |
| Max. current per channel | 1 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | <250 V AC |
| Surge voltage category | II |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 2 kV |
| Insulation test voltage AC | 1,2 kV |
| Clamping range, max. | 2,5 mm² |
| Clamping range, min. | 0,13 mm² |
| Flexible with sleeve, max. | 1,5 mm² |
| Flexible with sleeve, min. | 0,25 mm² |
| Flexible, max. H05(07) V-K | 1,5 mm² |
| Flexible, min. H05(07) V-K | 0,2 mm² |
| Max. wire cross-section, AWG | AWG 14 |
| Min. wire cross-section, AWG | AWG 24 |
| Sleeve with plastic collar, max. | 1,5 mm² |
| Solid, max. H05(07) V-U | 2,5 mm² |
| Solid, min. H05(07) V-U | 0,2 mm² |
| Stripping length | 7,5 mm |
| Type of connection | Tension-clamp connection |
| Type of connection | Tension-clamp connection |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 2,5 mm² |
| Solid, min. H05(07) V-U | 0,2 mm² |
| Solid, max. H05(07) V-U | 2,5 mm² |
| Flexible, min. H05(07) V-K | 0,2 mm² |
| Flexible, max. H05(07) V-K | 1,5 mm² |
| Flexible with sleeve, max. | 1,5 mm² |
| Flexible with sleeve, min. | 0,25 mm² |
| Ferrule with plastic collar, max. | 1,5 mm² |
| Wire cross-section, min. AWG | AWG 14 |
| Wire cross-section, max. AWG | AWG 24 |
| Stripping length | 7,5 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E141197 |
