Egenskaber

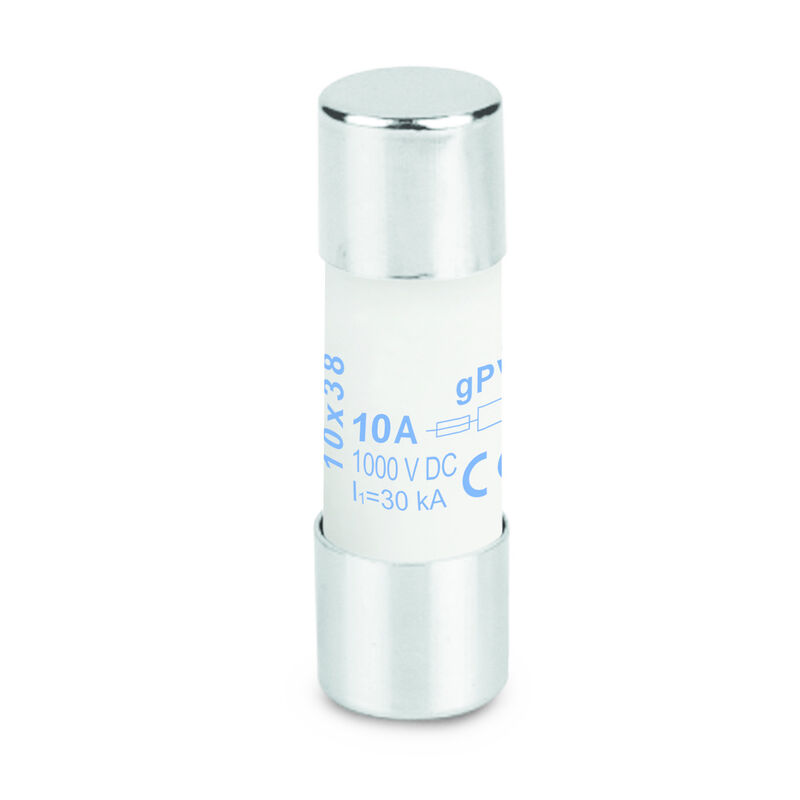

| Version | Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 10 A |
| Order No. | 2783230000 |
| Type | FUSE 10X38 10A 1000 VDC GPV |
| GTIN (EAN) | 4064675059950 |
| Qty. | 10 Styk |
| Depth | 10 mm |
| Depth (inches) | 0,394 inch |
| Height | 38 mm |
| Height (inches) | 1,496 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Diameter | 10,3 mm |
| Net weight | 0,8 g |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40°C ... 80°C |
| Fuse-link standard |
IEC 60269-1
IEC 60269-6 gPV (EN 60269-6) |
| Current | 10 A |
| Rated DC voltage | 1.000 V |
| Rated breaking capacity | 30 kA |
| Contact material | silver-plated |
| Power dissapation, max. | 2,2 W |
| Approval/Certificate/Document of Conformity | [CE-Declaration_10x38_gPV_Fuses](https://mdcop.weidmueller.com/mediadelivery/asset/900_306923) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ROHS | Conform |
