GWDR M50-PO

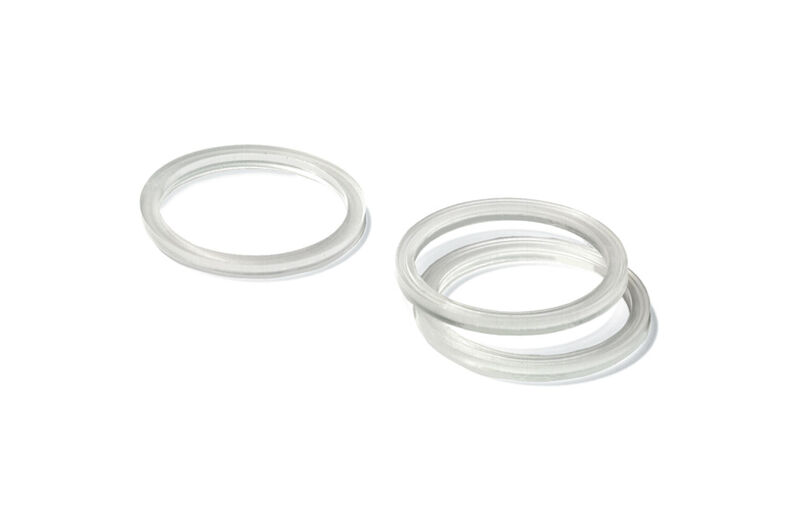

Similar to illustration
GWDR M50-PO

GWDR M50-PO

GWDR PO (flat gasket - polyethylene), Sealing ring, M 50, Polyethylene

Produkt ID 1777980000
Download datablad Engineering Support Product Downloads
Er tilbehør til 6 Anvendte produkter 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Informacje ogólne Classifications

Approvals

ROHS
Conform

General ordering data

Változat
GWDR PO (flat gasket - polyethylene), Sealing ring, M 50, Polyethylene
Order No.
1777980000
Tipo
GWDR M50-PO
GTIN (EAN)
4032248158249
Qty.
50 Styk

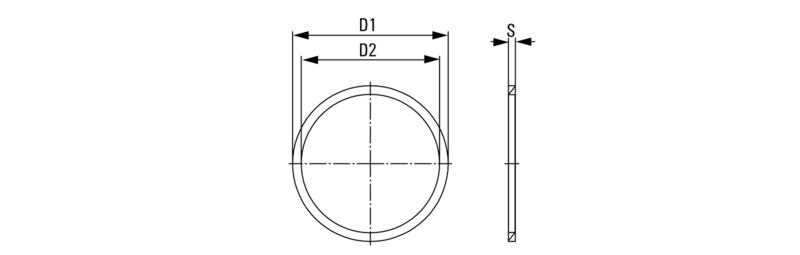

Dimensions and weights

Height
2 mm
Height (inches)
0,079 inch
Net weight
0,9 g

Temperatures

Temperatura de servicio
-30 °C...90 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Informacje ogólne

Basic material
Полиэтилен
Cable gland
M 50
Diameter of sealing ring
56 mm
External thread
M 50
Innendurchmesser D2
50 mm
Number of wires
1
O.D.
56 mm
Operating temperature range, max.
90 °C
Operating temperature range, min.
-30 °C
Pitch of thread
1,5 mm
Sealing
PE-HD
Silicone
Yes
Thickness
2 mm
Vnitřní závit
M 50

Classifications

ETIM 8.0
EC001181
ETIM 9.0
EC001181
ETIM 10.0
EC001181
ECLASS 14.0
27-43-03-19
ECLASS 15.0
27-43-03-19
