Egenskaber

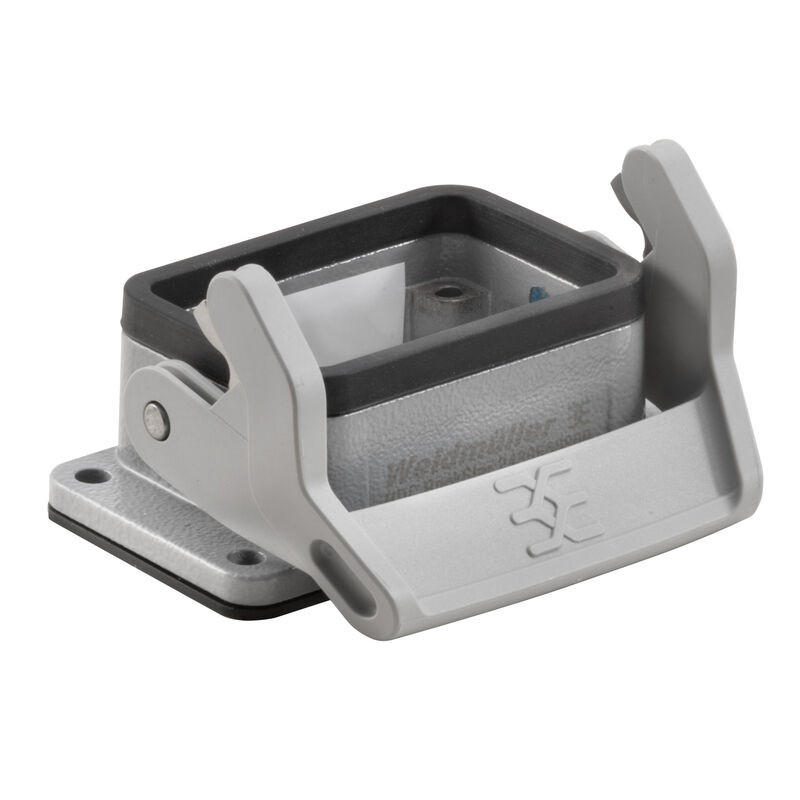

| Version | HDC enclosures, Size: 3, Protection degree: IP65 (in plugged condition), Bulkhead housing, End-locking clamp, lower side, Standard, without cover |
| Order No. | 2488560000 |
| Type | HDC 06B ALU N |
| GTIN (EAN) | 4050118541502 |
| Qty. | 1 Styk |
| Height | 29,3 mm |
| Height (inches) | 1,154 inch |
| Width | 64 mm |
| Width (inches) | 2,52 inch |
| Mounting dimension - height | 32 mm |
| Mounting dimension - width | 70 mm |
| Net weight | 82 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| Chemical resistance |
|
| Height of housing B | 29 mm |
| Width housing C | 43 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element |
Polyamide
Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 1,2 Nm |
| BG | 3 |
| Clamp version | End-locking clamp |
| Colour (RAL) | RAL 7035 |
| Design | Standard |
| Design of cover | without cover |
| Design of housing | Bulkhead housing |
| Design of locking system | End-locking clamp, lower side |
| Sealing | NBR |
| Size | 3 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 1,2 Nm |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Product information | When mounting the housings, make sure that the flat gasket is correctly seated. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72301) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2488560000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2488560000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Technical Documentation | [Customer drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_45060) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
