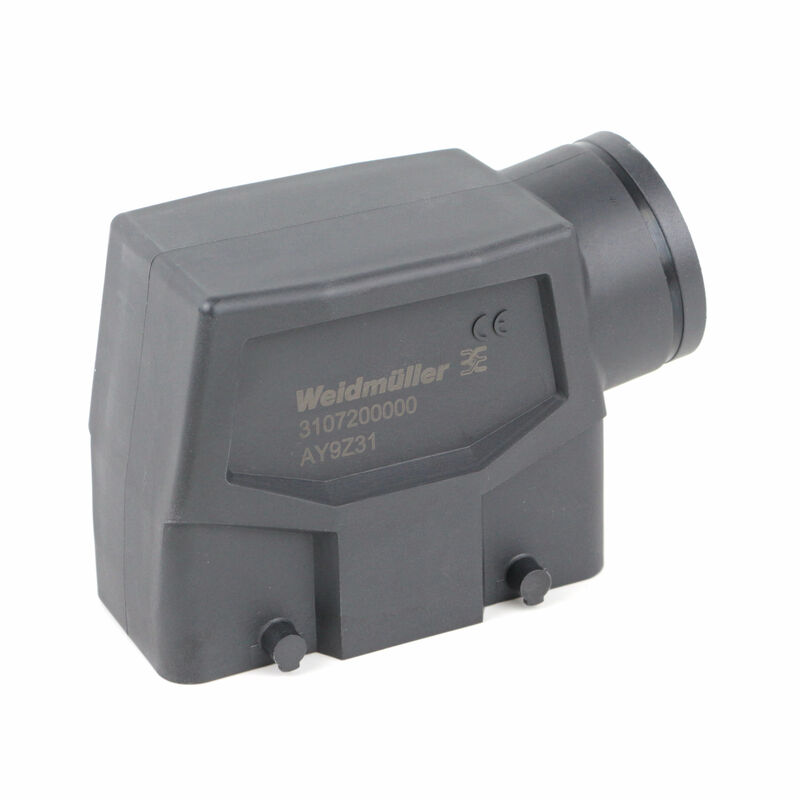

HDC 40D TSBU 1M32 BP
HDC 40D TSBU 1M32 BP

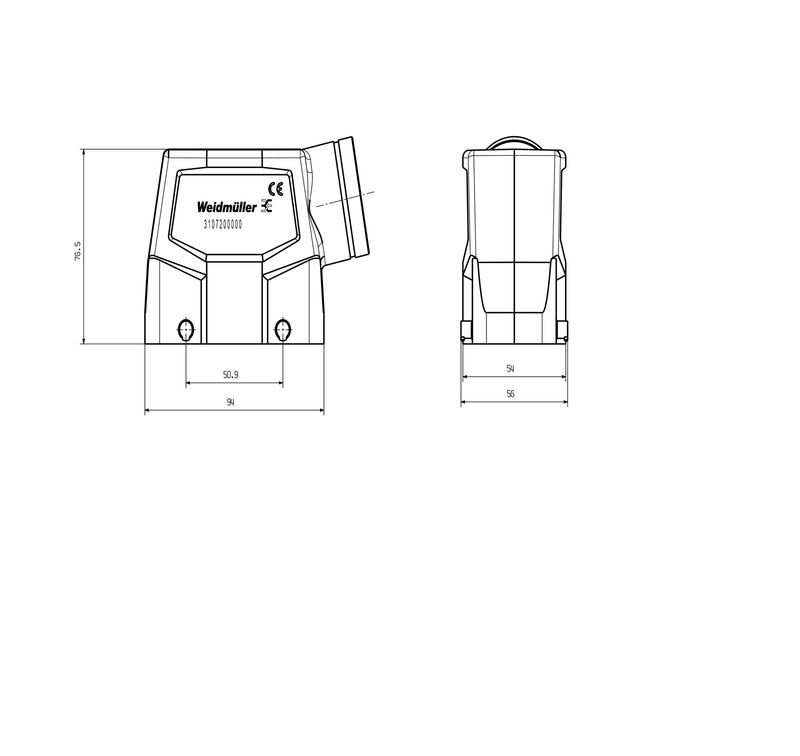

Drawing

HDC 40D TSBU 1M32 BP

HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 32, M 40

Product ID 3107200000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 6 Is accessoire van 3 Verwante producten 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 32, M 40
Order No.
3107200000
Type
HDC 40D TSBU 1M32 BP
GTIN (EAN)
4099987172127
Qty.
1 items

Dimensions and weights

Depth
94 mm
Depth (inches)
3,701 inch
Height
76,5 mm
Height (inches)
3,012 inch
Width
56 mm
Width (inches)
2,205 inch
Length
94 mm
Length (inches)
3,701 inch
Net weight
175 g

Temperatures

Ambient temperature
-40 °C…125 °C
Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Cable entry
w. thread
Total length housing
56 mm

General data

IP65
in plugged condition
Surface finish
untreated
UL 94 flammability rating
V-0

Version

BG
6
Colour (RAL)
RAL 9005
Dimensiones de las entradas de cable
M 32
M 40
External thread
M 32
Felső kábelbevezetések száma
0
Forma konstrukcyjna
high
Internal thread
M 32
Numero entrate cavo laterali
1
Protection
without cover
Rozmiar instalacji
6
Suitable for ModuPlug®
Yes
Tätning
no sealing
Top part/bottom part/lid
upper part
Исполнение скобы
Side-locking clamp
Кабельный вход
w. thread
Тип
Plug
결선 유형
Heavy-duty connector
잠금 시스템 디자인
Side-locking clamp on lower side
하우징 디자인
Cable entry from side
Plug housing

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
