Egenskaber

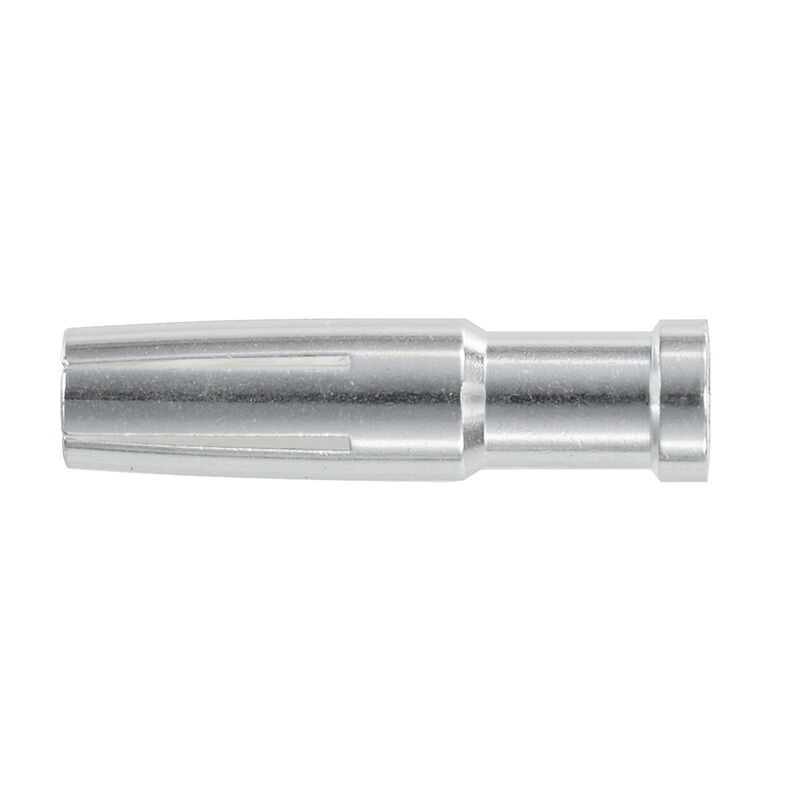

| Version | Heavy-duty connectors, Crimp contact, MixMate, Female, Conductor cross-section, max.: 2.5, turned, Copper alloy |
| Order No. | 1002960000 |
| Type | HDC C HX BM2.5AG |
| GTIN (EAN) | 4032248697243 |
| Qty. | 25 Styk |
| Diameter | 6 mm |
| Net weight | 2,704 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
| Conductor cross-section, max. | 2,5 mm² |
| Contact diameter, male Ø | 4 mm |
| Contact material | Copper alloy |
| Cross-section for connected wire | 2.5 mm² |
| Material | Copper alloy |
| Plugging cycles | ≥ 500 |
| Production methods | turned |
| Stripping length, rated connection | 8 mm |
| Surface finish | silver |
| Type | Female |
| Type of connection | Crimp connection |
| Version insert | MixMate |
| Volume resistance | ≤1 mΩ |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_68079) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1002960000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1002960000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ROHS | Conform |
