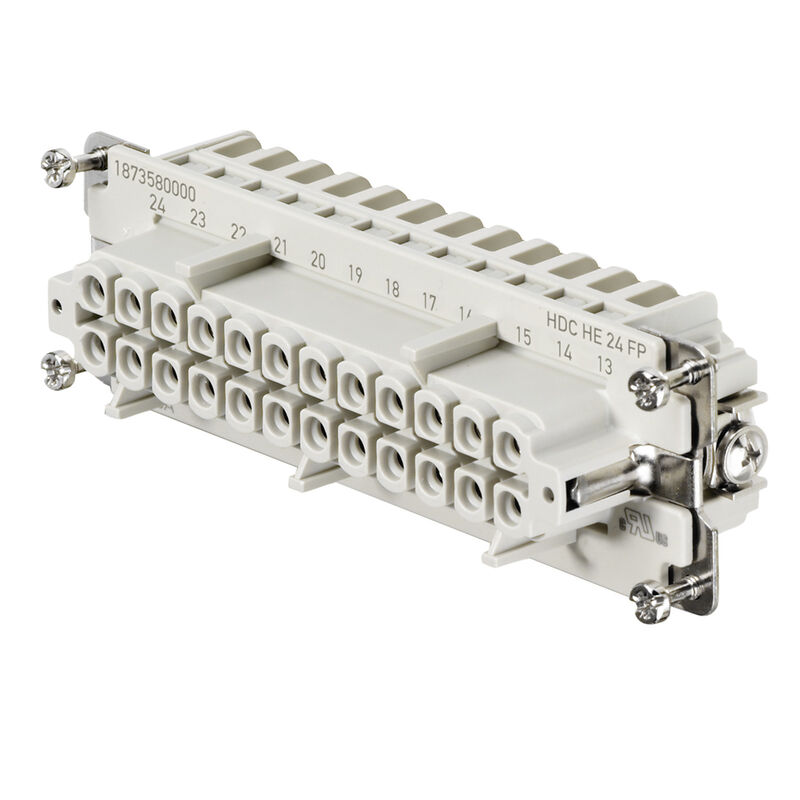

HDC HE 24 FP
HDC HE 24 FP
HDC HE 24 FP

HDC HE 24 FP

HDC insert, Female, 500 V, 16 A, Number of poles: 24, PUSH IN, Installation size: 8

Produkt ID 1873580000
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Er tilbehør til 15 Enkeltdel til 4 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Rating data IECEx/ATEX Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E310075

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 24, PUSH IN, Installation size: 8
Order No.
1873580000
Type
HDC HE 24 FP
GTIN (EAN)
4032248458196
Qty.
1 Styk

Dimensions and weights

Depth
111 mm
Depth (inches)
4.37 inch
Height
33.8 mm
Height (inches)
1.331 inch
Width
34 mm
Width (inches)
1.339 inch
Net weight
99.44 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
33.8 mm
Total length base
111 mm
Width
34 mm

General data

Basic material
Copper alloy
Bassa fumosità sec. EN 45545-2
Yes
BG
8
Colour
beige
Corriente nominal (DIN EN 61984)
16 A
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Number of poles
24
Number of signal contacts
0
Névleges áramerősség (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    19 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    16 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12.5 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    9.8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Sobretensión de choque nominal (DIN EN 61984)
6 kV
Surface finish
Silver passivated
Tightening torque, max. PE connection
1.5 Nm
Tightening torque, min. PE connection
1.2 Nm
Type
Female
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ
№ силовых контактов
24

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV24ATEX9197X
Certificate No. (IECEX)
IECEXTUR24.0077X
Current (ATEX)
3 A
Current (IECEX)
3 A
Max. voltage (ATEX)
250 V
Max. voltage (IECEX)
250 V
Wire cross section max. (ATEX)
4 mm²
Wire cross section max. (IECEX)
4 mm²

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1.5 Nm
Tightening torque, min. PE connection
1.2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

Anslutningstyp
PUSH IN
Avisoleringslängd nominellt
10 mm
Basic material
Copper alloy
BG
8
Conductor cross-section, max.
2.5 mm²
Conductor cross-section, min.
0.5 mm²
Installationsstorlek
8
Klingmått slits (skruvanslutning)
SD 0.5 x 3.0
Surface finish
Silver passivated
Volume resistance
≤2 mΩ
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm²
Wire cross-section, solid, max.
2.5 mm²
Wire cross-section, solid, min.
0.5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
