HSS-HF 3.2-6.4 EL Y30M
HSS-HF 3.2-6.4 EL Y30M

HSS-HF 3.2-6.4 EL Y30M

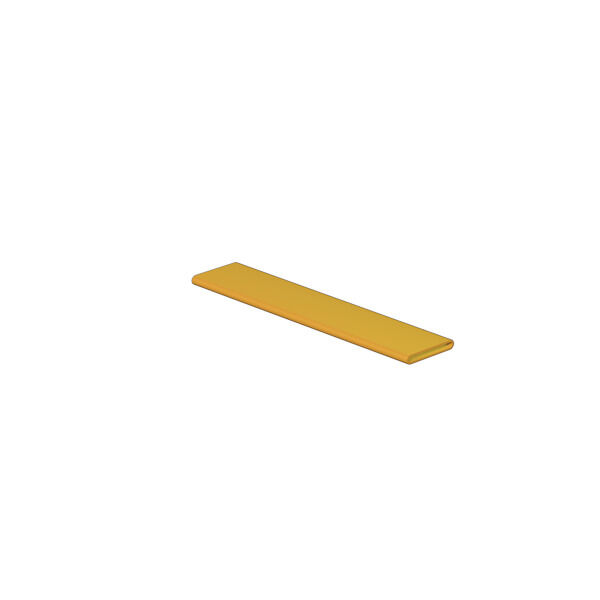

Conductor and cable markers, 3.2 - 6.4 mm, yellow

Product ID 1513180000
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Toebehoren 5 Verwante producten 39
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 3.2 - 6.4 mm, yellow
Order No.
1513180000
Type
HSS-HF 3.2-6.4 EL Y30M
GTIN (EAN)
4050118321012
Qty.
1 items

Dimensions and weights

Depth
0,9 mm
Depth (inches)
0,035 inch
Width
10,7 mm
Width (inches)
0,421 inch
Length
30.000 mm
Length (inches)
1.181,1 inch
Net weight
404 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Caractères imprimés
without
Color
yellow
Einsatztemperaturbereich, max.
105 °C
Halógenos
No
Longitud
30.000 mm
Matériau de base
Polyolefine
Operating temperature range, min.
-55 °C
stampante compatibile
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Typ tisku
neutral
Width
10,7 mm
Üzemi hőmérsékleti tartomány
-55...105 °C
롤당 수
1

Conductor and cable markers

Conductor cross-section, max.
6 mm²
Conductor cross-section, min.
1,5 mm²
Conductor O.D.
3.2 - 6.4 mm
Conductor O.D., max.
6,4 mm
Conductor O.D., min.
3,2 mm
Cross-section for connected wire
1.5 - 6 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

Important note

Product information

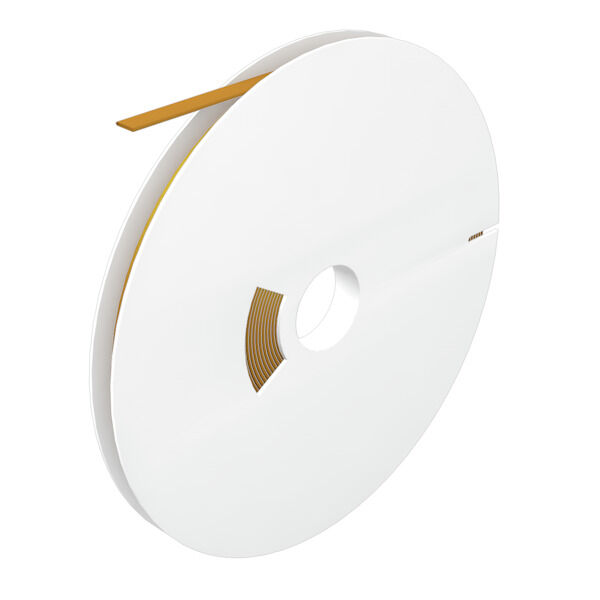

External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
