Egenskaber

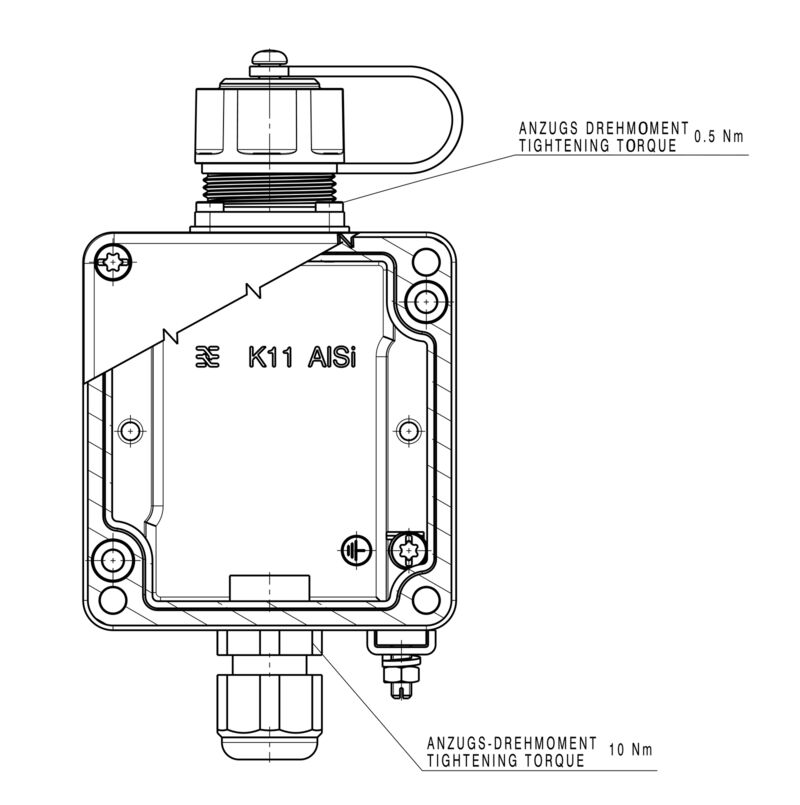

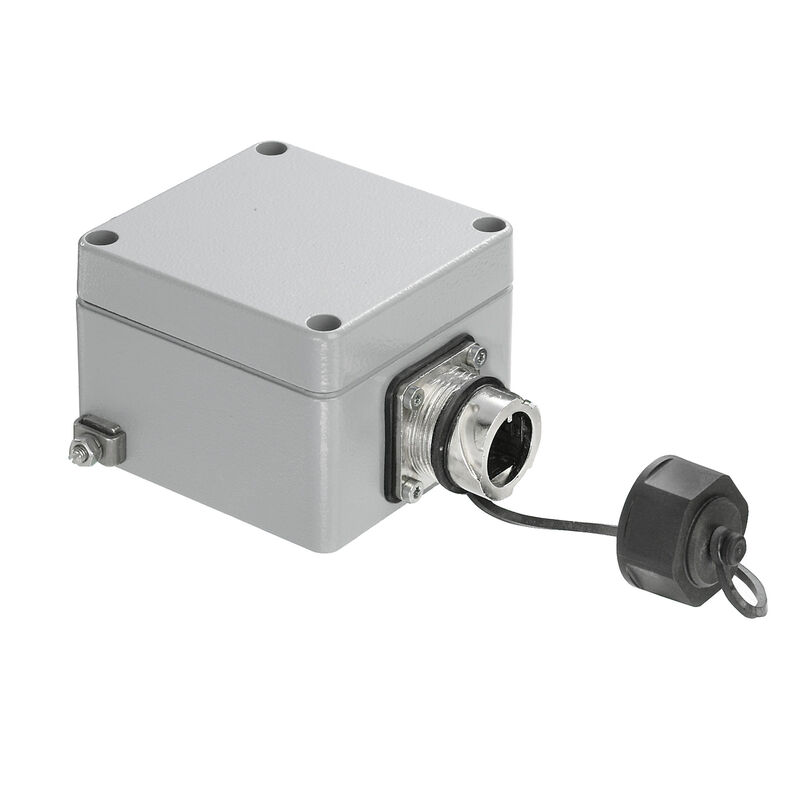

| Version | Junction box, IP67, Variant 1, 1 port, straight |
| Order No. | 1966300000 |
| Type | IE-OM-V01M-K11-1S |
| GTIN (EAN) | 4032248658497 |
| Qty. | 1 Styk |

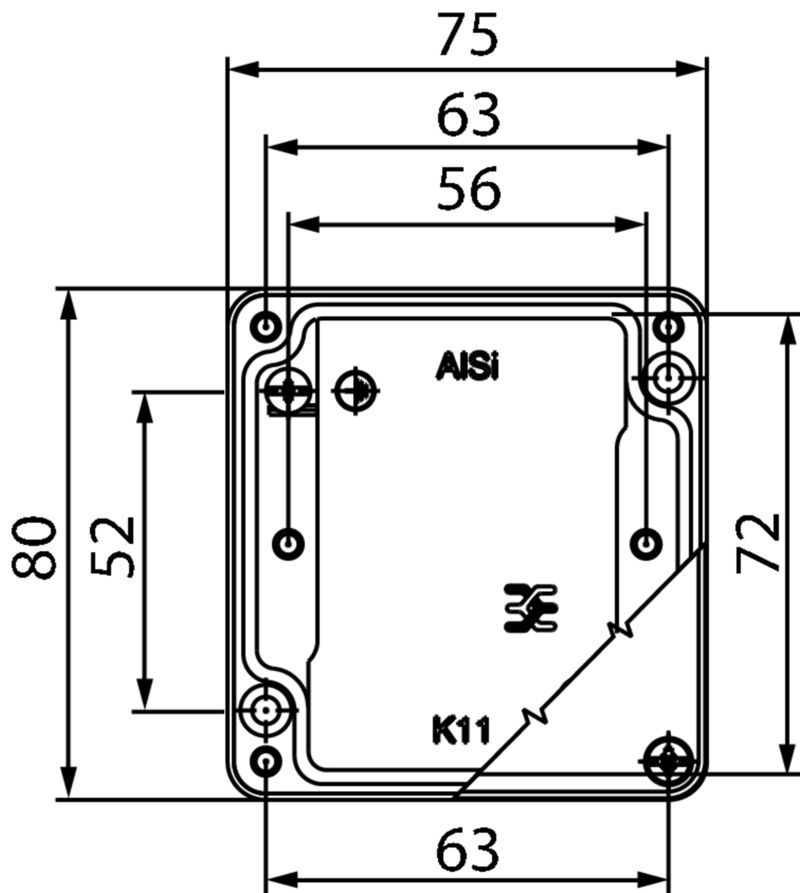

| Depth | 57 mm |
| Depth (inches) | 2,244 inch |
| Width | 75 mm |
| Width (inches) | 2,953 inch |
| Length | 140 mm |
| Length (inches) | 5,512 inch |
| Net weight | 460 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | e3782e8e-7b94-417d-a6f7-ac548c86df93 |
| Colour | grey |
| Housing main material | AL-Si 12 |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Type of mounting |
Floor-mounted
Wall mounting |
| Connector standard | IEC 61076-3-106 Var. 1 |
| Approval/Certificate/Document of Conformity | [GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167098) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1966300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1966300000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 7.0 | EC002597 |
| ETIM 8.0 | EC002597 |
| ETIM 9.0 | EC002597 |
| ECLASS 9.1 | 27-44-03-18 |
| ECLASS 10.0 | 27-44-03-18 |
| ECLASS 11.0 | 27-44-03-18 |
| ECLASS 12.0 | 27-44-03-18 |
| ECLASS 13.0 | 27-44-03-18 |
| ECLASS 14.0 | 27-44-03-18 |
| ROHS | Conform |
