Egenskaber
| Version | Cover hood (terminal), Polyamide 66 |
| Order No. | 0502960000 |

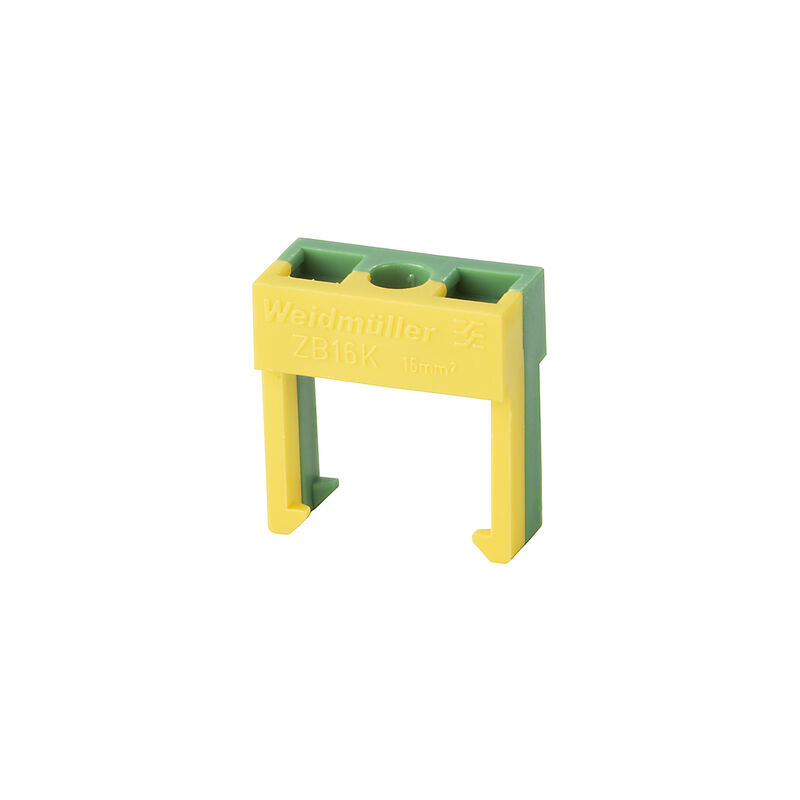

| Type | IK 16/ZB16 GG |
| GTIN (EAN) | 4008190113438 |
| Qty. | 50 Styk |
| Depth | 20 mm |
| Depth (inches) | 0,787 inch |
| Height | 19 mm |
| Height (inches) | 0,748 inch |
| Width | 9 mm |
| Width (inches) | 0,354 inch |
| Net weight | 1,18 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Insulating material | PA |
| Colour | silver |
| UL 94 flammability rating | V-2 |
| Version | for busbar 10 x 3 mm |
| Number of connections | 1 |
| TS 35 offset | 39 mm |
| Operating temperature range, max. | 100 °C |
| Pollution severity | 3 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0502960000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1368700000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, dark beige, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, E16
-
Produkt ID:0178220000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 16 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 10 x 38 mm
-
Produkt ID:0501500000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, dark beige, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 25
-
Produkt ID:0225820000Pakningsenhed:10 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 6.3 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
-
Produkt ID:1368720000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, E16
-
Produkt ID:0501620000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
