Egenskaber

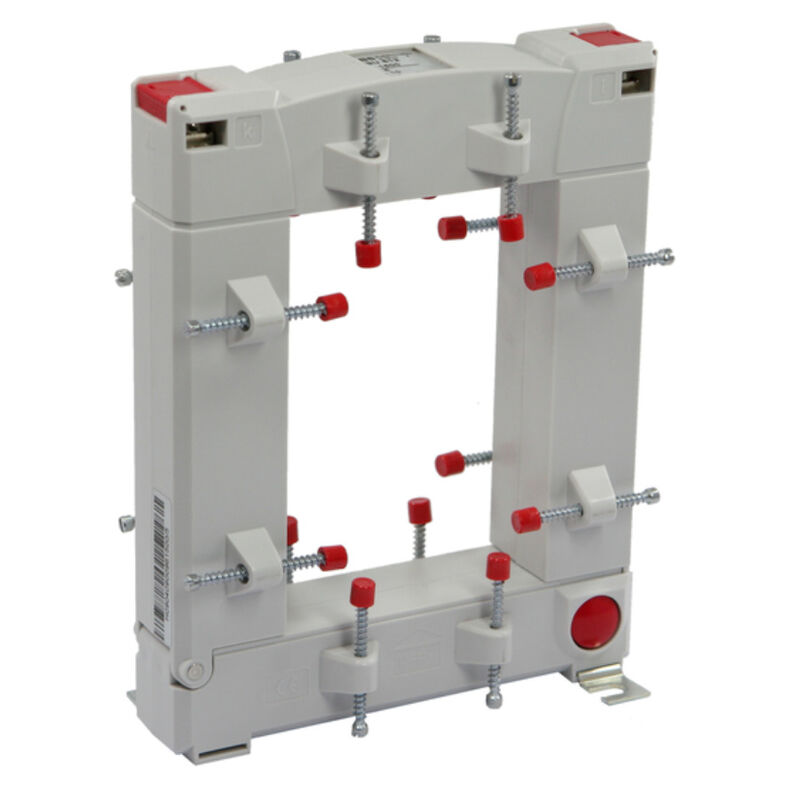

| Version | Primary current: 1000 A, Secondary current max.: 5 A, Load: 5 VA, Tolerance class: 0,5, Split-core current transformer |
| Order No. | 2753430000 |
| Type | KCMA-8-1000-5A-5VA-0.5 |
| GTIN (EAN) | 4050118896565 |
| Qty. | 1 Styk |
| Depth | 58 mm |
| Depth (inches) | 2,283 inch |
| Height | 198 mm |
| Height (inches) | 7,795 inch |
| Width | 155 mm |
| Width (inches) | 6,102 inch |
| Net weight | 1.300 g |
| Operating temperature | -5 °C...40 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Type of conductor | Insulated conductor only |
| Round conductor | 80 mm |
| Rail | 80 x 120 mm |
| Installation location | Indoor use |
| Load | 5 VA |
| Primary current | 1.000 A |
| Secondary current | 0...5 A |
| Tolerance class | 0,5 |
| Manufacturer | MBS AG |
| Cable length | 0,5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current Ithermal | 1.2 x Irated |
| Standard |
IEC 61869-1: 2007
IEC 61869-2: 2012 |
| Tolerance class | 0,5 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_256202) |
| User Documentation |
[Device description -- Betriebsanleitung deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_35948)
[Device description -- Instruction sheet english](https://mdcop.weidmueller.com/mediadelivery/asset/900_93111) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ROHS | Conform |
