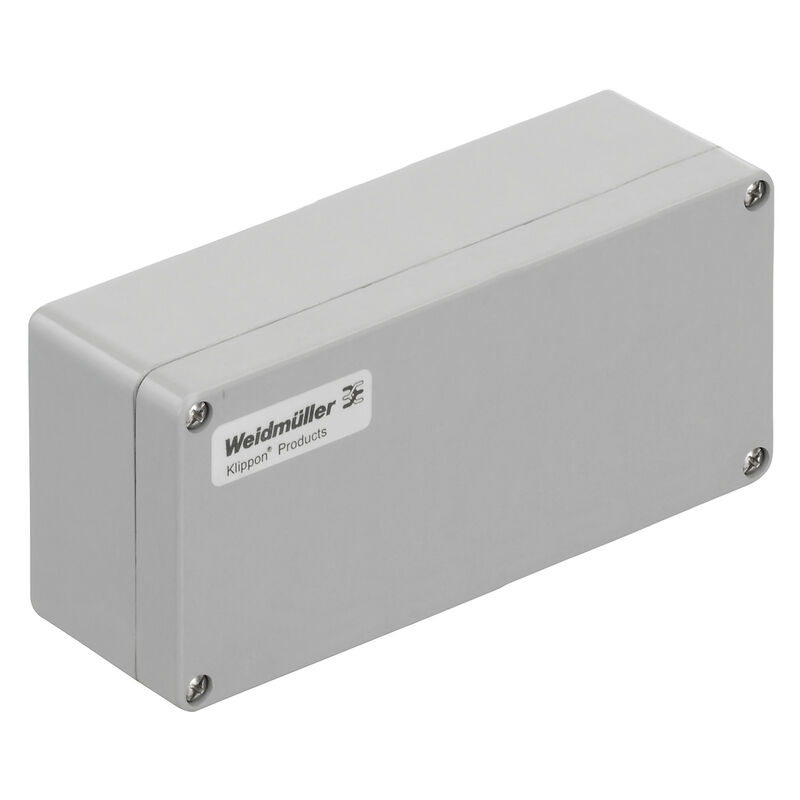

KLIPPON POK 081906

Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 190 mm, Depth: 55 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey

Produkt ID 1305840000

Egenskaber

General ordering data

Version	Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 190 mm, Depth: 55 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
Order No.	1305840000
Type	KLIPPON POK 081906
GTIN (EAN)	4050118104875
Qty.	1 Styk

Dimensions and weights

Depth	55 mm
Depth (inches)	2,165 inch
Height	75 mm
Height (inches)	2,953 inch
Height of lowest version	55 mm
Width	190 mm
Width (inches)	7,48 inch
Mounting dimension - height	45 mm
Mounting dimension - width	178 mm
Net weight	454 g

Temperatures

Operating temperature

-40 °C...100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	afb385d0-c52b-4449-8502-203596817ab0

Cable glands, left

M12	1
M16	1
M20	1

Cable glands, right

M12	1
M16	1
M20	1

Cable glands, top/bottom

M12	14
M16	6
M20	5
M25	4

Certificate numbers enclosure

Approval conditions	cULus LR DNV
Certificate no. (cULus)	E256877
Certificate No. (DNV)	TAE00002R2
Declaration of Conformatiy No. (DoC LVD)	DE PS2401 160412 001ISS02

General information

Access opening: height	66,12 mm
Access opening: width	181,12 mm
Areas of use	Harbour facilities Machine construction Process industry Transportation
Enclosure attachment	Installation through the housing rear wall Fixing lugs
Flange plate	No
Impact resistance	5 J version standard
Lid	Yes
Lid attachment	Slotted/Phillips screws
Material	Glass fibre-reinforced polyester
Material thickness of cover	3,7 mm
Material thickness of enclosure	4,44 mm
Max. payload	5,7 kg
Number of lid screws	4
Operating temperature, max.	100 °C
Operating temperature, min.	-40 °C
Protection class (UL)	Type 4 Type 4X
Protection degree	IP66
Seal material	Chloroprene
Standards	DIN EN 62208 - Empty enclosure standard DIN 4102-12
Surface finish	untreated polished
Torque for lid screws	2,5 Nm
UL 94 flammability rating	V-0

horizontal assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x26
WDU 4 / ZDU 4	1x22

vertical assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	*
WDU 4 / ZDU 4	*

Important note

Product information

The fire rating up to E60 acc. to DIN 4102-12 depends on concrete configurations / installations (details see “Declaration of Manufacturer” in “Downloads”)

Downloads

Approval/Certificate/Document of Conformity	[14_20001](https://mdcop.weidmueller.com/mediadelivery/asset/900_157728) [TAE00002R2](https://mdcop.weidmueller.com/mediadelivery/asset/900_157729) [MPA NRW Certificate - fire rated assembled boxes acc. to DIN 4102-12](https://mdcop.weidmueller.com/mediadelivery/asset/900_207499) [EU Declaration of Conformity - Klippon POK Empty Enclosures IND - DoC DE PS2401 160412 001ISS02](https://mdcop.weidmueller.com/mediadelivery/asset/900_40373) [UKCA Declaration of Conformity - Klippon POK Empty Enclosures IND - UKCA DE PS2401 220623 000ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319949)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54068)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1305840000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1305840000)
Tender specification	[Klippon POK 081906_1305840000_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_56648) [Klippon POK 081906_1305840000_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_56674)
User Documentation	[Assembly guidelines - empty enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_40376)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[MB KLIPPON ENCL.TECN EN](http://download.weidmueller.com/asset/download/file/39472) [FL KLIPPON POK EN](http://download.weidmueller.com/asset/download/file/38243) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172)

Classifications

ETIM 6.0	EC000261
ETIM 7.0	EC000261
ETIM 8.0	EC000261
ETIM 9.0	EC000261
ECLASS 9.0	27-18-01-01
ECLASS 9.1	27-18-92-90
ECLASS 10.0	27-18-01-01
ECLASS 11.0	27-18-01-01
ECLASS 12.0	27-18-01-01
ECLASS 13.0	27-18-01-01
ECLASS 14.0	27-18-01-01

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E256877
