MPC 07/12/12 TRSP
Similar to illustration
Abbildung ähnlich
MPC 07/12/12 TRSP

MPC 07/12/12 TRSP

MPC (polycarbonate empty enclosure), Empty enclosure, straight, Height: 75 mm, Width: 125 mm, Depth: 125 mm, Basic material: Polycarbonate, untreated, Light Grey, Transparent

Produkt ID 9535220000
Download datablad Engineering-support Produktdownloads
Tilbehør 12 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, right Cable glands, top/bottom Certificate numbers enclosure Allmänna uppgifter horizontal assembly vertical assembly Classifications

Approvals

ROHS
Conform

General ordering data

Version
MPC (polycarbonate empty enclosure), Empty enclosure, straight, Height: 75 mm, Width: 125 mm, Depth: 125 mm, Basic material: Polycarbonate, untreated, Light Grey, Transparent
Order No.
9535220000
Type
MPC 07/12/12 TRSP
GTIN (EAN)
4032248009572
Qty.
1 Styk

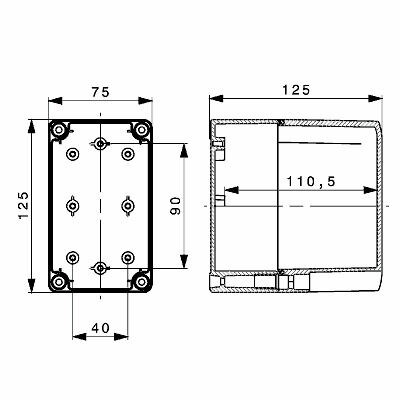

Dimensions and weights

Depth
125 mm
Depth (inches)
4,921 inch
Height
75 mm
Height (inches)
2,953 inch
Width
125 mm
Width (inches)
4,921 inch
Net weight
301 g

Temperatures

Operating temperature
-50 °C...130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, right

M12
4
M16
3
M20
3

Cable glands, top/bottom

M12
1
M16
1
M20
1

Certificate numbers enclosure

Declaration of Conformatiy No. (DoC LVD)
DoC DE PS2420 201008 001ISS00

Allmänna uppgifter

Access opening: width
121,5 mm
Fixation de montage
thanks to self-tapping screws
Flange plate
No
Ház kiegészítő
Holes 4.5 mm
Impact resistance
IK08
Lid attachment
4 polyamide crosshead screws
Material básico
Polycarbonate
Material de la junta
Polyurethane
Material thickness
3,5 mm
Návod k instalaci
Screw mounting
Oberfläche
untreated
Operating temperature, max.
130 °C
Operating temperature, min.
-50 °C
Protection degree
IP66
IP67
Torque for lid screws
0,8 Nm
Крышка
Yes
Отверстие для доступа, высота
71,5 mm
Применение
Building systems and technology
Transportation
Packaging industry
Machine construction
리드 스크류의 수
4

horizontal assembly

Number of DIN rails and terminals (10 mm², horizontal)
1x6
WDU 16 / ZDU 16
1x1
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x13
WDU 35 / ZDU 35
1x1
WDU 4 / ZDU 4
1x11
WDU 6 / ZDU 6
1x8

vertical assembly

WDU 10 / ZDU 10
1x6
WDU 16 / ZDU 16
1x5
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x13
WDU 35 / ZDU 35
1x4
WDU 4 / ZDU 4
1x11
WDU 6 / ZDU 6
1x8

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
