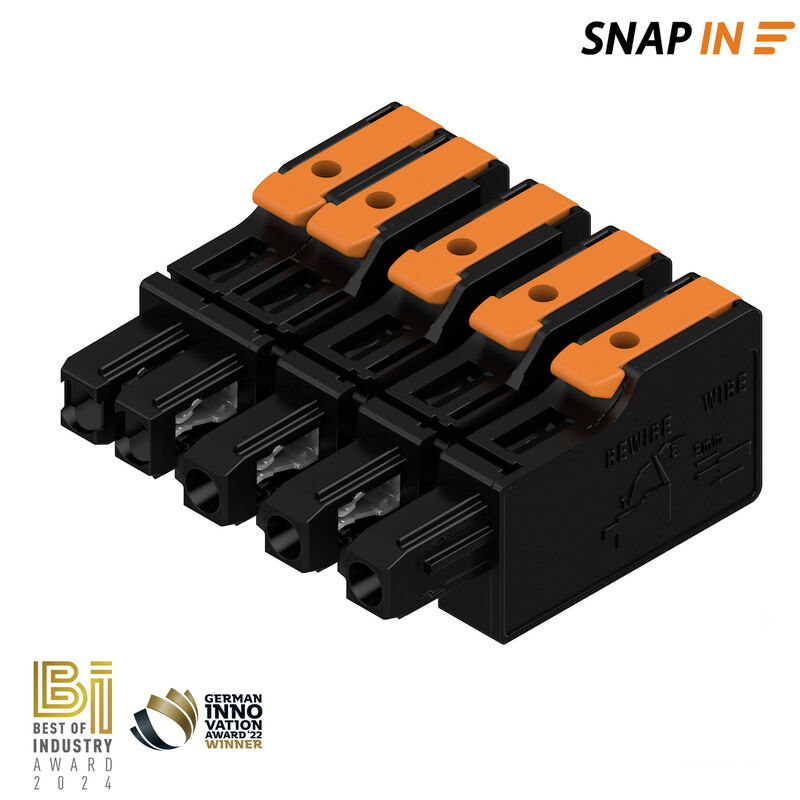

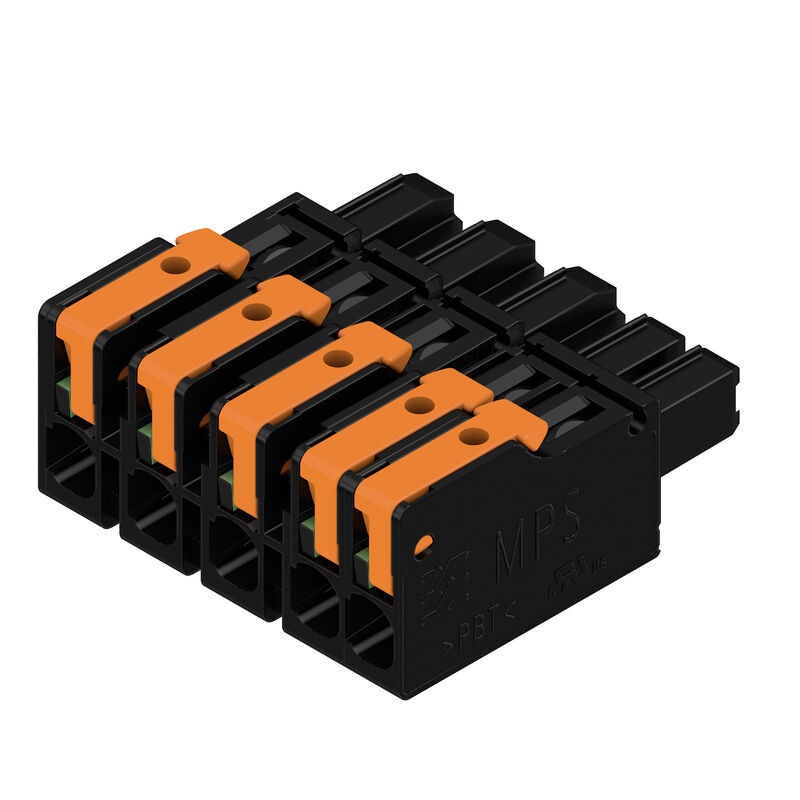

MPS 7S/03-5/02 S TN B B

PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 5, Box

Produkt ID 8000078345

Egenskaber

General ordering data

Version	PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 5, Box
Order No.	8000078345
Type	MPS 7S/03-5/02 S TN B B
GTIN (EAN)	4064675622086
Qty.	54 Styk
Product data	IEC: 1000 V / 34.6 A / 0.5 - 4 mm² UL: / 18.5 A / AWG 20 - AWG 12
Packaging	Box

Dimensions and weights

Depth	34,95 mm
Depth (inches)	1,376 inch
Height	15,5 mm
Height (inches)	0,61 inch
Net weight	13,094 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System Parameters

Product family	OMNIMATE 4.0
Type of connection	Field connection
Wire connection method	SNAP IN
Pitch in mm (P)	7,5 mm
Conductor outlet direction	180°
Number of poles	5
L1 in mm	15 mm
L1 in inches	0,591 "
L2 in mm	5 mm
L2 in inch	0,197 "
Number of rows	1
Pin series quantity	1
Rated cross-section	2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470	IP 20
Stripping length	9 mm
Stripping length tolerance	min.: 8 mm max.: 10 mm
Plugging cycles	≥ 25
Plugging force/pole, max.	9 N
Pulling force/pole, max.	8 N

Material data

Insulating material	PBT GF
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Storage temperature, min.	-25 °C
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	125 °C

Conductors suitable for connection

Clamping range, min.	0,34 mm²
Clamping range, max.	4 mm²
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section AWG, max.	AWG 12
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	2,5 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,34 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,34 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2,5 mm²
Outer diameter of insulation, max.	4 mm
Clampable conductor	Cross-section for conductor connection: nominal: 0,34 mm² wire end ferrule: Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9025770000 Cross-section for conductor connection: nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9025870000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9004050000 Cross-section for conductor connection: nominal: 0,75 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9025860000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0542500000 Cross-section for conductor connection: nominal: 1 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9025950000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0282800000 Cross-section for conductor connection: nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0635100000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0186500000 Cross-section for conductor connection: nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9019160000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9004080000
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	34,6 A
Rated current, max. number of poles (Tu=20°C)	29,1 A
Rated current, min. number of poles (Tu=40°C)	30,7 A
Rated current, max. number of poles (Tu=40°C)	25,9 A
Rated voltage for surge voltage class / pollution degree II/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/2	1.000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group F / UL 1059)	1.000 V
Rated current (Use group B / UL 1059)	18,5 A
Rated current (Use group C / UL 1059)	18,5 A
Rated current (Use group D / UL 1059)	10 A
Rated current (Use group F / UL 1059)	18,5 A
Wire cross-section, AWG, min.	AWG 20
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Technical data - hybrid (power)

Number of poles (Power)	3
Number of rows (Power)	1
Pitch in mm (Power)	7,5 mm
Pitch in inches (Power)	0,295 "
Contact material (Power)	CuSn
Contact surface (Power)	tinned
Clamping range, min. (Power)	0,5 mm²
Clamping range, max. (Power)	4 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Power)	0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max. (Power)	2,5 mm²
Wire cross-section, AWG, min. (Power)	AWG 20
Wire cross-section, AWG, max. (Power)	AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Power)	2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max. (Power)	0,5 mm²
Flexible, min. H05(07) V-K (Power)	0,5 mm²
Flexible, max. H05(07) V-K (Power)	4 mm²
Solid, min. H05(07) V-U (Power)	0,5 mm²
Solid, max. H05(07) V-U (Power)	2,5 mm²
Outside diameter of the insulation, max. (Power)	4 mm
Stripping length (Power)	9 mm
Rated current (Use group B / UL 1059) (Power)	18,5 A
Rated current (Use group C / UL 1059) (Power)	18,5 A
Rated current (Use group D / UL 1059) (Power)	10 A
Rated current, min. number of poles (Tu=20°C) (Power)	34,6 A
Rated current, max. number of poles (Tu=20°C) (Power)	29,1 A
Rated current, min. number of poles (Tu=40°C) (Power)	30,7 A
Rated current, max. number of poles (Tu=40°C) (Power)	25,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Power)	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Power)	4 kV
Rated voltage (Use group B / UL 1059) (Power)	600 V
Rated voltage (Use group C / UL 1059) (Power)	600 V
Rated voltage (Use group D / UL 1059) (Power)	600 V
Rated voltage for surge voltage class / pollution degree II/2 (Power)	1.000 V
Rated voltage for surge voltage class / pollution degree III/2 (Power)	1.000 V
Rated voltage for surge voltage class / pollution degree III/3 (Power)	630 V
Clearance distance, min. (Power)	9,96 mm

Technical data - hybrid (signal)

Number of poles (Signal)	2
Pitch in mm (Signal)	5 mm
Pitch in inches (Signal)	0,197 "
Contact material (Signal)	CuSn
Contact surface (Signal)	tinned
Clamping range, min. (Signal)	0,5 mm²
Clamping range, max. (Signal)	4 mm²
Wire cross-section, AWG, min. (Signal)	AWG 20
Wire cross-section, AWG, max. (Signal)	AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Signal)	0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max. (Signal)	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Signal)	0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max. (Signal)	2,5 mm²
Flexible, min. H05(07) V-K (Signal)	0,5 mm²
Flexible, max. H05(07) V-K (Signal)	4 mm²
Solid, min. H05(07) V-U (Signal)	0,5 mm²
Solid, max. H05(07) V-U (Signal)	2,5 mm²
Outside diameter of the insulation, max. (Signal)	4 mm
Stripping length (Signal)	9 mm
Rated current (Use group B / UL 1059) (Signal)	18,5 A
Rated current (Use group C / UL 1059) (Signal)	18,5 A
Rated current (Use group D / UL 1059) (Signal)	10 A
Rated current, min. number of poles (Tu=20°C) (Signal)	26,8 A
Rated current, max. number of poles (Tu=20°C) (Signal)	19,7 A
Rated current, min. number of poles (Tu=40°C) (Signal)	23,1 A
Rated current, max. number of poles (Tu=40°C) (Signal)	16,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Signal)	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Signal)	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/3 (Signal)	4 kV
Rated voltage (Use group B / UL 1059) (Signal)	600 V
Rated voltage (Use group C / UL 1059) (Signal)	600 V
Rated voltage (Use group D / UL 1059) (Signal)	600 V
Rated voltage for surge voltage class / pollution degree II/2 (Signal)	400 V
Rated voltage for surge voltage class / pollution degree III/2 (Signal)	320 V
Rated voltage for surge voltage class / pollution degree III/3 (Signal)	250 V
Clearance distance, min. (Signal)	7,5 mm
Creepage distance, min. (Signal)	7,5 mm

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Rated current related to rated cross-section & min. No. of poles.

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Wire end ferrule without plastic collar to DIN 46228/1

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[CoC_cURus_E60693_MPS_MHS_202207.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_313337) [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_255778)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000078345)
User Documentation	[Assembly instructions MPS 7S/5 EN DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_177970)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002638
ETIM 7.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
ECLASS 9.0	27-44-03-09
ECLASS 9.1	27-44-03-09
ECLASS 10.0	27-44-03-09
ECLASS 11.0	27-46-02-02
ECLASS 12.0	27-46-03-02
ECLASS 13.0	27-46-03-02
ECLASS 14.0	27-46-03-02

Approvals

Approvals	![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
