Egenskaber

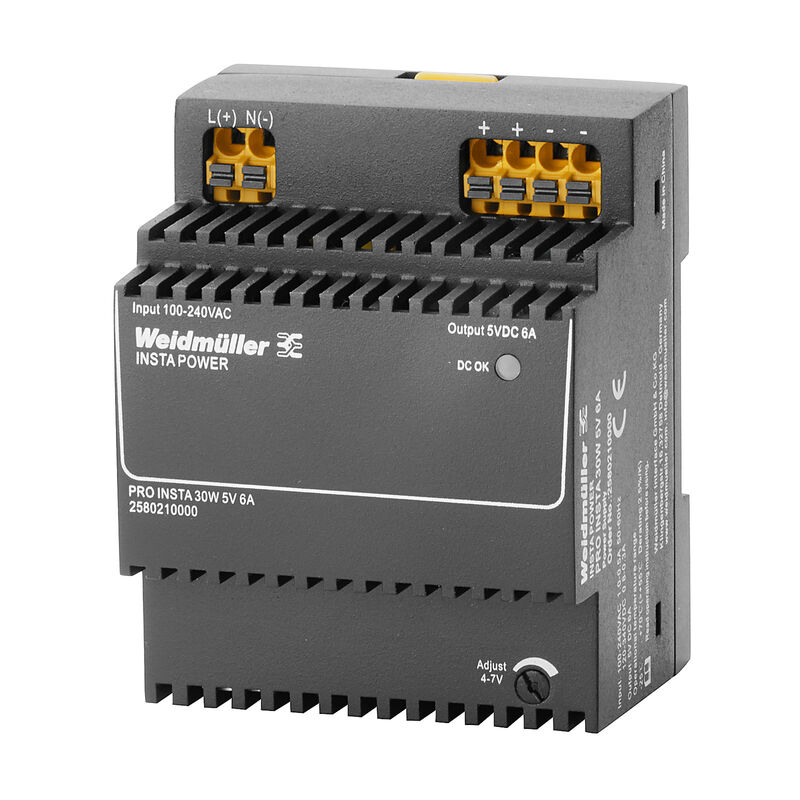

| Version | Power supply, switch-mode power supply unit, 5 V |
| Order No. | 2580210000 |
| Type | PRO INSTA 30W 5V 6A |
| GTIN (EAN) | 4050118590937 |
| Qty. | 1 Styk |
| Depth | 60 mm |
| Depth (inches) | 2,362 inch |
| Height | 90 mm |
| Height (inches) | 3,543 inch |
| Width | 72 mm |
| Width (inches) | 2,835 inch |
| Net weight | 256 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Lead monoxide 1317-36-8 |
| SCIP | d62541f7-8058-4336-b693-7303c8b40800 |
| AC current consumption | 0.5 A @ 230 V AC / 1.0 A @ 100 V AC |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
| Connection system | PUSH IN with actuator |
| DC current consumption | 0.2 A @ 370 V DC / 0.5 A @ 120 V DC |
| DC input voltage range | 95…370 V DC |
| Frequency range AC | 45…65 Hz |
| Input fuse (internal) | Yes |
| Inrush current | max. 40 A |
| Nominal power consumption | 36,6 VA |
| Rated input voltage | 110...240 V AC / 120...340 V DC |
| Recommended back-up fuse |
2 A / DI, safety fuse 6 A, Char. B, circuit breaker 2...4 A, Char. C circuit breaker |
| Wire connection method | PUSH IN with actuator |
| Capacitive load | unrestricted |
| Connection system | PUSH IN |
| Continuous output current @ UNominal |

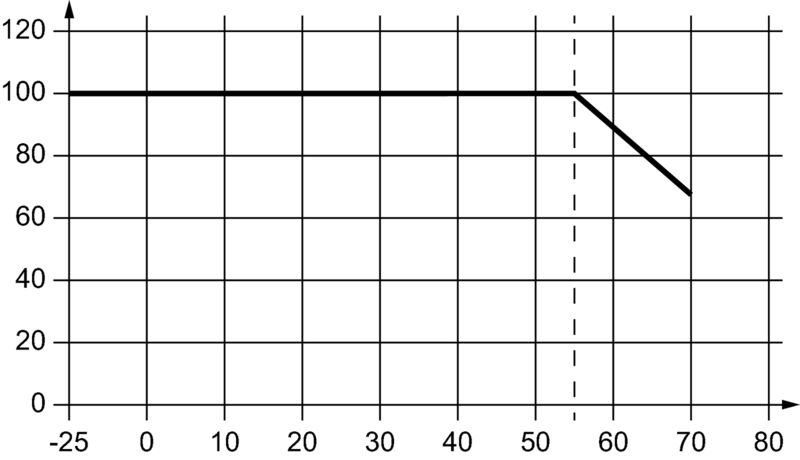

6 A @ 55 °C
3.75 A @ 70 °C |
| Nominal output current for Unom | 6 A @ 55 °C |
| Output current, max. | 6 A |
| Output power | 30 W |
| Output voltage, max. | 7 V |
| Output voltage, min. | 4 V |
| Output voltage, note | (adjustable via potentiometer on front) |
| Ramp-up time | ≤ 100 ms |
| Rated output voltage | 5 V DC ± 2 % |
| Residual ripple, breaking spikes | < 50 mVss @ UNenn, Full Load |
| Wire connection method | PUSH IN with actuator |
| Degree of efficiency | 82 % |
| Housing version | Plastic, protective insulation |
| Mounting position, installation notice | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| MTBF |
|
| Power loss, idling | 0,45 W |
| Power loss, nominal load | 5,4 W |
| Protection against reverse voltages from the load | 8…10 V DC |
| Protection degree | IP20 |
| Short-circuit protection |
Yes
internal |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
EN 61000-4-11 (Dips) |
| Limiting of mains voltage harmonic currents |
EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
EN 61000-4-11 (Dips) |
| Noise emission in accordance with EN55032 | Class B |
| Shock resistance IEC 60068-2-27 | 15 g In all directions |
| Vibration resistance IEC 60068-2-6 | 2.3 g |
| Insulation voltage input / earth | 3,5 kV |
| Insulation voltage output / earth | 0,5 kV |
| Insulation voltage, input/output | 4 kV |
| Pollution severity | 2 |
| Protection class | II |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage |
SELV acc. to IEC 60950-1
PELV according to EN 60204-1 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 24 |
| Conductor cross-section, flexible , min. | 0,25 mm² |
| Conductor cross-section, rigid , max. | 2,5 mm² |
| Conductor cross-section, rigid , min. | 0,25 mm² |
| Connection system | PUSH IN with actuator |
| Number of terminals | 2 (L,N) |
| Wire connection cross section, flexible (input), max. | 2,5 mm² |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 24 |
| Conductor cross-section, flexible , max. | 2,5 mm² |
| Conductor cross-section, flexible , min. | 0,25 mm² |
| Conductor cross-section, rigid , max. | 2,5 mm² |
| Conductor cross-section, rigid , min. | 0,25 mm² |
| Connection system | PUSH IN |
| Number of terminals | 4 (++ / --) |
| LED green | Operating voltage OK |
