RCMKIT-I 115VAC 4CO LD
RIDERSERIES RCM, Relay module, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 6 A, Screw connection, Test button available: Yes
Egenskaber
| Version | RIDERSERIES RCM, Relay module, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 6 A, Screw connection, Test button available: Yes |
| Order No. | 8921050000 |
| Type | RCMKIT-I 115VAC 4CO LD |
| GTIN (EAN) | 4032248692286 |
| Qty. | 10 Styk |
| Depth | 78,3 mm |
| Depth (inches) | 3,083 inch |
| Height | 77 mm |
| Height (inches) | 3,031 inch |
| Width | 27,2 mm |
| Width (inches) | 1,071 inch |
| Net weight | 100,05 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage | 115 V AC |
| Rated current AC | 10.5 mA |
| Power rating | 1.36 VA |
| Coil resistance | 4845 Ω ± 12 % |
| Status indicator | red LED |
| Rated switching voltage | 240 V AC |
| Continuous current | 6 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power |
1 mA @ 24 V
10 mA @ 12 V 100 mA @ 5 V |

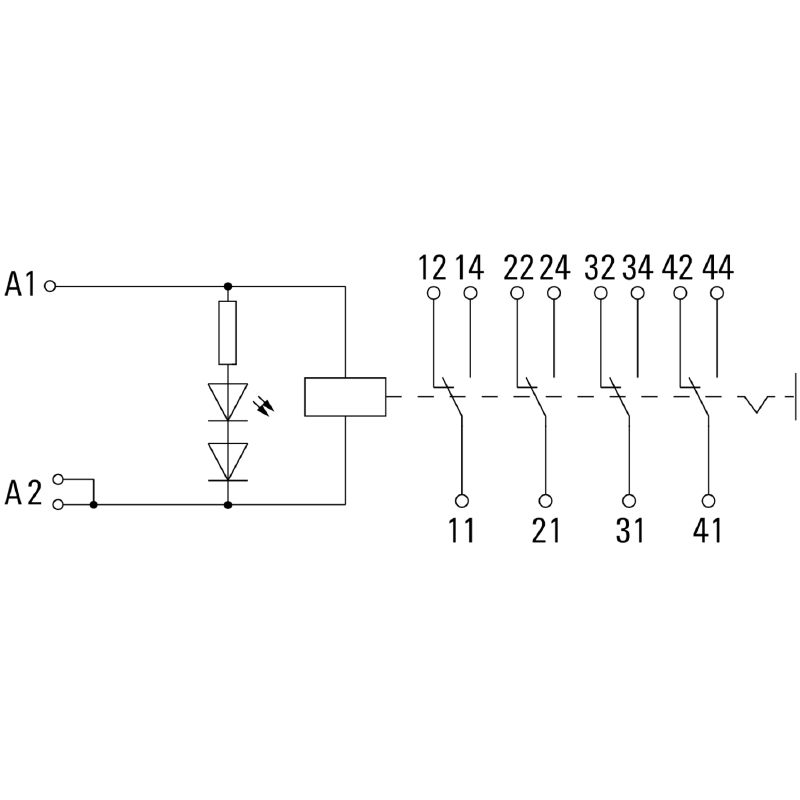

| Inrush current | 12 A / 20 ms |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 144 W @ 24 V |
| Switch-on delay | ≤ 15 ms |
| Switch-off delay | ≤ 10 ms |
| Contact type | 4 CO contact (AgNi) |
| Mechanical service life |
AC coil 20 x 106 switching cycles
DC coil 30 x 106 switching cycles |
| Rail | TS 35 |
| Test button available | Yes |
| Version of test button |
Lockable test button
Momentary test button |
| Mechanical switch position indicator | Yes |
| Colour | black |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 4 mm |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2 kVeff / 1 min |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (CSA) relay | 249409-2426937 |
| Certificate no. (CSA) base | 249409-2295474 |
| Certificate No. (DNV) | TAA000011A |
| Certificate no. (cURus) relay | E522350 |
| Certificate no. (cURus) base | E223759 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,7 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 1 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire cross-section, solid, min. | 1 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 1 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1,5 mm² |
| Blade size | size PZ1 |
| Product information | IP20 without connected conductor at complete opened clamping yoke connection. |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35408) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55226) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8921050000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8921050000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |    |
| ROHS | Conform |
