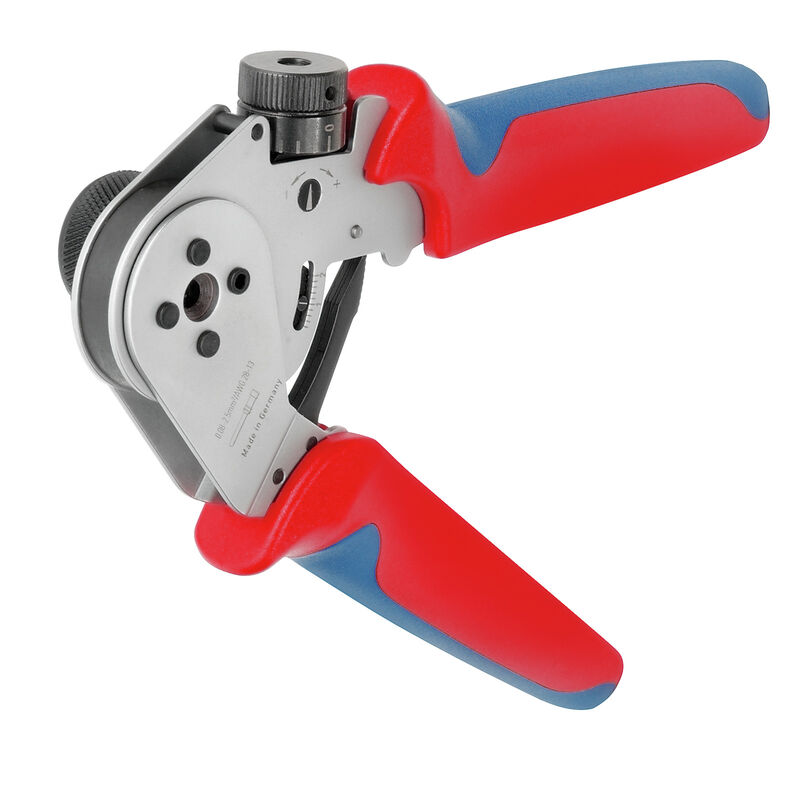

SAI M23 CRIMPING TOOL 2

Pressing tool for signal contacts, 4-indent crimp

Produkt ID 1203960000

Egenskaber

General ordering data

Version	Pressing tool for signal contacts, 4-indent crimp
Order No.	1203960000
Type	SAI M23 CRIMPING TOOL 2
GTIN (EAN)	4050118000764
Qty.	1 Styk

Dimensions and weights

Length	175 mm
Length (inches)	6,89 inch
Net weight	478 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	Lead 7439-92-1
SCIP	7baf363e-d867-435e-844e-c01f32ebf146

Technical data

Version

Mechanical, without interchangeable inserts

Description of contact

Conductor cross-section, max. AWG	AWG 13
Conductor cross-section, min. AWG	AWG 28
Type of contact	Turned contacts

tool data crimping

Crimping type/profile	4-indent crimp
Wire end ferrules cross-section, max.	2,5 mm²
Wire end ferrules cross-section, min.	0,14 mm²

Downloads

Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000168
ETIM 7.0	EC000168
ETIM 8.0	EC000168
ETIM 9.0	EC000168
ECLASS 9.0	21-04-38-11
ECLASS 9.1	21-04-38-11
ECLASS 10.0	21-04-38-11
ECLASS 11.0	21-04-38-11
ECLASS 12.0	21-04-38-11
ECLASS 13.0	21-04-38-11
ECLASS 14.0	21-04-38-11

Tilbehør

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts1.5 mm

SAI-M23-KSC-1.5-0.14-1

Produkt ID:

1170220000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-1.5-.14-.56

Produkt ID:

1170230000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-1.5-.56-1.0

Produkt ID:

1170240000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts1 mm

SAI-M23-KBC-0.34/1.00

Produkt ID:

1170180000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-1.00-1.5

Produkt ID:

1170210000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-0.08/0.56

Produkt ID:

1995860000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-1.00-1.5

Produkt ID:

1170170000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-0.14/1.00

Produkt ID:

1170150000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-0.08/0.56

Produkt ID:

1170140000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts2 mm

SAI-M23-KBC-2-0.75-2.5

Produkt ID:

1170260000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-2-0.75-2.5

Produkt ID:

1170250000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

Er tilbehør til

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts1 mm

SAI-M23-KBC-1.00-1.5

Produkt ID:

1170210000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-0.08/0.56

Produkt ID:

1995860000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-1.00-1.5

Produkt ID:

1170170000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-0.34/1.00

Produkt ID:

1170180000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-0.14/1.00

Produkt ID:

1170150000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-0.08/0.56

Produkt ID:

1170140000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsPowerCrimp contacts1 mm

SAI-M23-KSC-LS-0.25-1.0

Produkt ID:

1170390000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-LS-0.25-1.0

Produkt ID:

1995830000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsSignalInserts without contacts

SAI-M23-BE-19

Produkt ID:

1170130000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-19

Produkt ID:

1170120000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-7

Produkt ID:

1170040000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-7

Produkt ID:

1170030000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-9

Produkt ID:

1170060000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-12-G

Produkt ID:

1296730000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-9

Produkt ID:

1170050000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-17

Produkt ID:

1170110000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-6

Produkt ID:

1170020000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-17

Produkt ID:

1170100000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-16

Produkt ID:

1170080000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-16

Produkt ID:

1170090000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-BE-12

Produkt ID:

1995850000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-6

Produkt ID:

1170000000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

SAI-M23-SE-12

Produkt ID:

1170070000

Pakningsenhed:

1 Styk

Sensor/Actuator plug-in connector, Insert

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsPowerCrimp contacts2 mm

SAI-M23-KSC-L-2.5-4.0

Produkt ID:

1170410000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-L-0.75/2.50

Produkt ID:

1995820000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-L-2.5-4.0

Produkt ID:

1170420000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-L-0.75-2.5

Produkt ID:

1170400000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts1.5 mm

SAI-M23-KBC-1.5-.14-.56

Produkt ID:

1170230000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-1.5-.56-1.0

Produkt ID:

1170240000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KSC-1.5-0.14-1

Produkt ID:

1170220000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

ConnectorsCircular ConnectorsM23 connectorsSignalCrimp contacts2 mm

SAI-M23-KSC-2-0.75-2.5

Produkt ID:

1170250000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads

SAI-M23-KBC-2-0.75-2.5

Produkt ID:

1170260000

Pakningsenhed:

50 Styk

Sensor/Actuator plug-in connector, Crimp contact

Datablad Downloads
