SAI-M23-GS-L-7/17
Similar to illustration
SAI-M23-GS-L-7/17

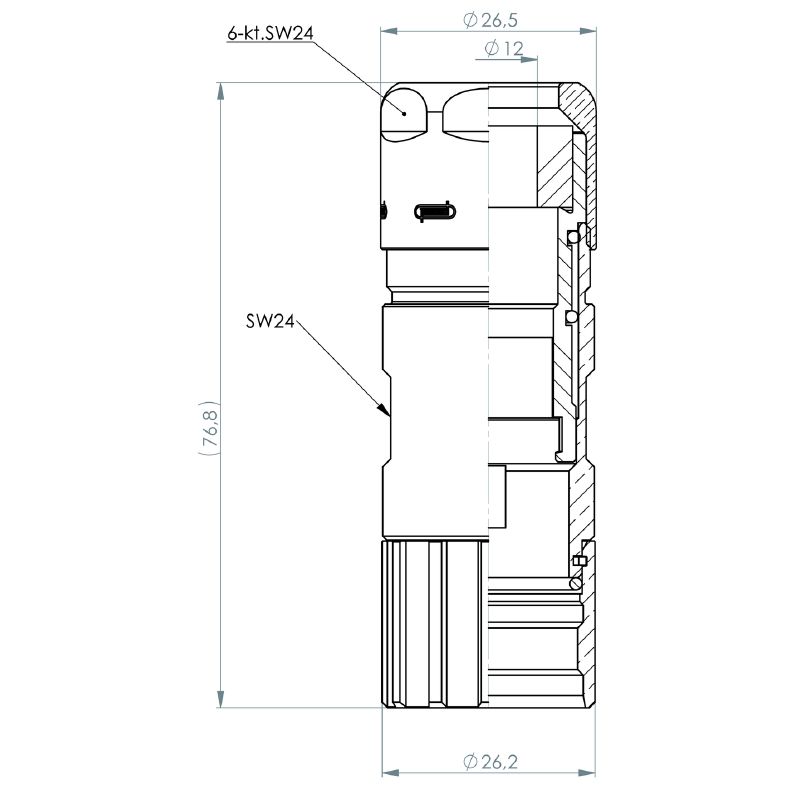

Dimensioned drawing

SAI-M23-GS-L-7/17

This product will soon be unavailable.

Last order date: /Date(1798671600000)/

Sensor/Actuator plug-in connector, Empty enclosure

ID výrobku 1995800000
Stáhnout datový list Engineering Support Product Downloads
Accessories 4 Is accessory of 4 Related products 4
Approvals General ordering data Abmessungen und Gewichte Environmental Product Compliance Technical data customisable plug-in connectors Klasifikace

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Shoda
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E344862

General ordering data

Version
Sensor/Actuator plug-in connector, Empty enclosure
Order No.
1995800000
Type
SAI-M23-GS-L-7/17
GTIN (EAN)
4032248925667
Qty.
1 Styk
Lieferstatus
Dieser Artikel ist demnächst nicht mehr lieferbar.
Datum der letzten Bestellung
/Date(1798671600000)/

Abmessungen und Gewichte

Nettogewicht
94.81 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical data customisable plug-in connectors

Cable diameter, max.
17 mm
Cable diameter, min.
7 mm
Housing main material
Copper-zinc alloy
Plugging cycles
> 1000
Pollution severity
3
Protection degree
IP67
IP69K
Shield connection
Yes
Temperature range of housing
-40…+125 °C

Klasifikace

ETIM 8.0
EC003556
ETIM 9.0
EC003556
ETIM 10.0
EC003556
ECLASS 14.0
27-44-02-24
ECLASS 15.0
27-44-02-24
