Egenskaber
| Version | Sensor/Actuator plug-in connector, Crimp contact |
| Order No. | 1170220000 |

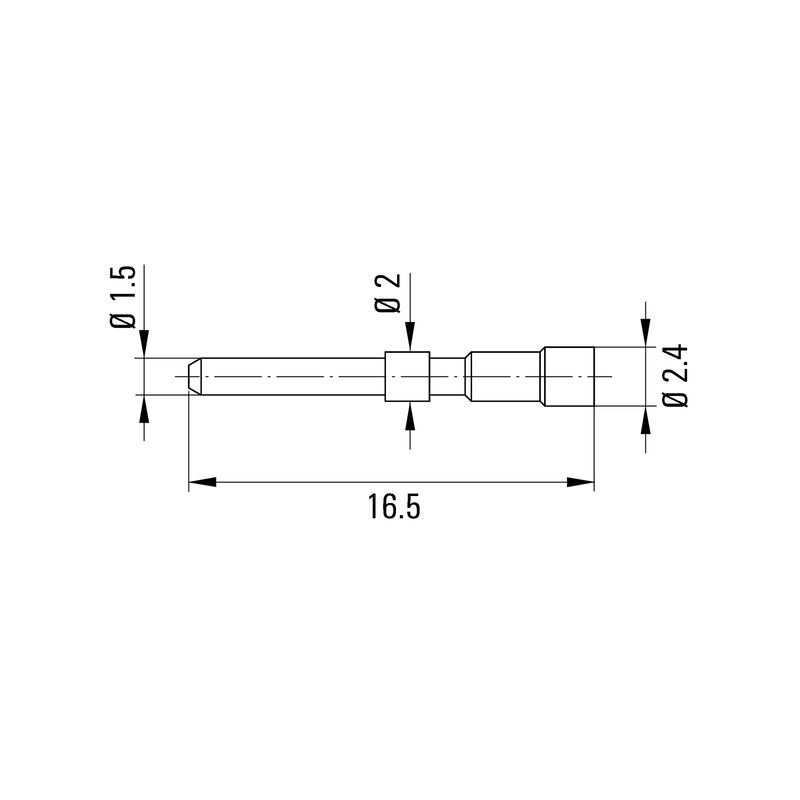

| Type | SAI-M23-KSC-1.5-0.14-1 |
| GTIN (EAN) | 4032248962204 |
| Qty. | 50 Styk |
| Net weight | 0,3 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Conductor cross-section, max. | 1 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Contact material | Copper-Zinc alloy |
| Contact surface | Gold-plated |
| Insulation strength | > 1010 Ω |
| Plugging cycles | > 1000 |
| Type of connection | Crimp connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102255) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1170220000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E344862 |
Tilbehør
-
Produkt ID:1203840000Pakningsenhed:1 Styk
Pressing tool for signal and power contacts, 4-indent crimp
-
Produkt ID:1203960000Pakningsenhed:1 Styk
Pressing tool for signal contacts, 4-indent crimp
ToolsCrimping toolsMiscellaneous crimping tools......for M23
Er tilbehør til
-
Produkt ID:1203840000Pakningsenhed:1 Styk
Pressing tool for signal and power contacts, 4-indent crimp
-
Produkt ID:1203960000Pakningsenhed:1 Styk
Pressing tool for signal contacts, 4-indent crimp
-
Produkt ID:1170120000Pakningsenhed:1 Styk
Sensor/Actuator plug-in connector, Insert
ToolsCrimping toolsMiscellaneous crimping tools......for M23
ConnectorsCircular ConnectorsM23 connectorsSignalInserts without contacts
