Egenskaber
| Version | Protected component assemblies, SAI Active, Accessories, Sensor/Actuator plug-in connector |
| Order No. | 1955340000 |

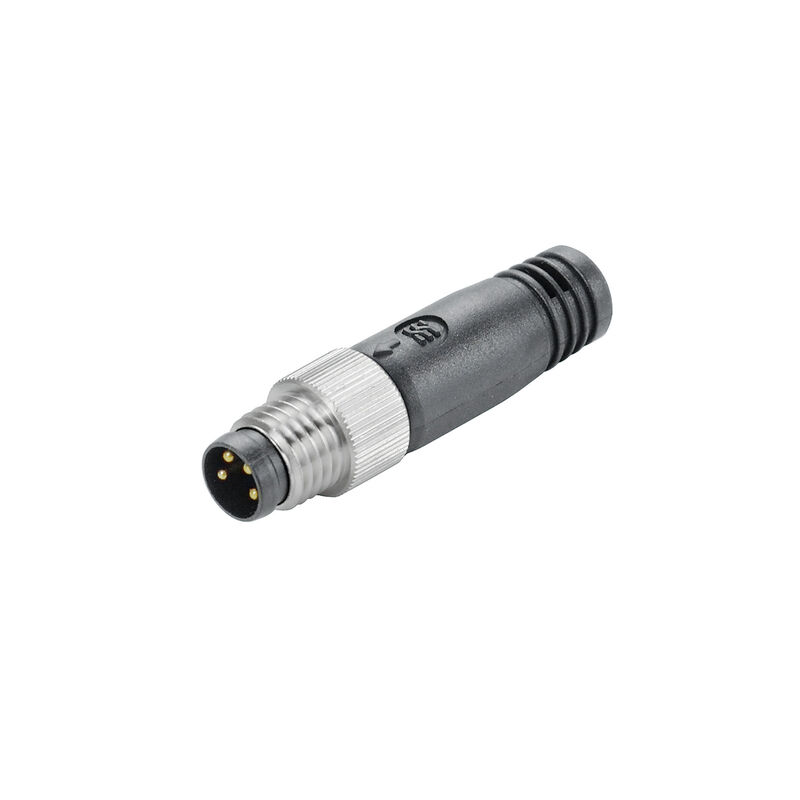

| Type | SAIEND CAN M8 4P |
| GTIN (EAN) | 4032248633821 |
| Qty. | 1 Styk |
| Net weight | 5 g |
| Operating temperature | -25 °C...85 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Number of poles | 4 |
| Connection thread | M8 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Version | pin, straight |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253901) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1955340000) |
| Product Change Notification | [Technical change to 3 to 5-pole unshielded M12 cord sets](https://mdcop.weidmueller.com/mediadelivery/asset/900_318301) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000448 |
| ETIM 7.0 | EC000448 |
| ETIM 8.0 | EC000448 |
| ETIM 9.0 | EC000448 |
| ECLASS 9.0 | 19-07-04-03 |
| ECLASS 9.1 | 19-17-01-90 |
| ECLASS 10.0 | 19-07-04-03 |
| ECLASS 11.0 | 19-07-04-03 |
| ECLASS 12.0 | 19-07-04-03 |
| ECLASS 13.0 | 19-07-04-03 |
| ECLASS 14.0 | 19-07-04-03 |
| Approvals |   |
| ROHS | Conform |
