SAIL-M12BW-4-3.0V
SAIL-M12BW-4-3.0V
Rozměrový výkres
Angled socket
SAIL-M12BW-4-3.0V
Schéma pólů
M12 = A-coded
SAIL-M12BW-4-3.0V
Wiring diagram
SAIL-M12BW-4-3.0V
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-4-3.0V

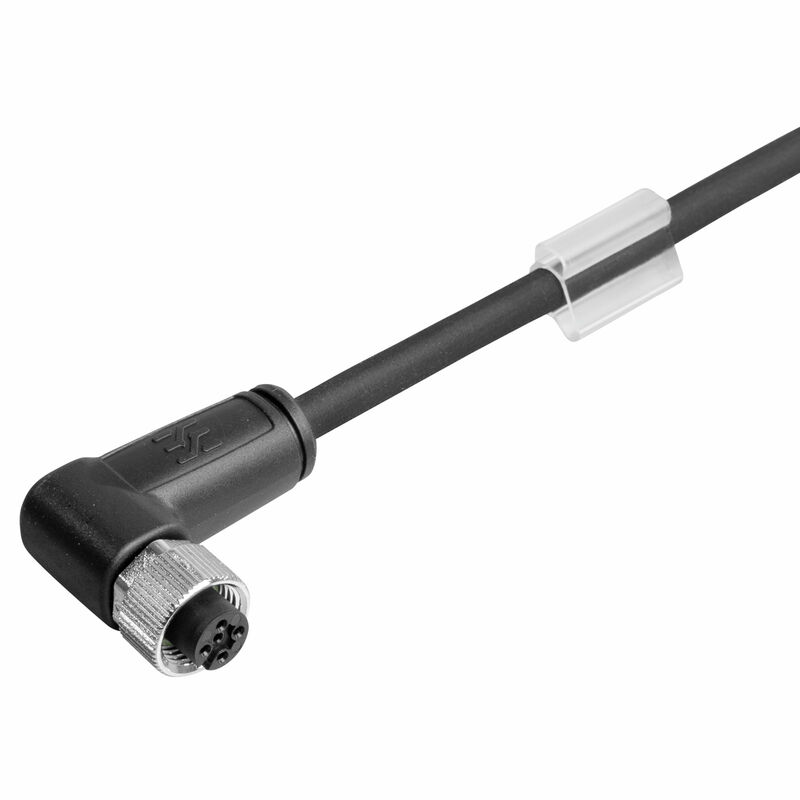

센서/액추에이터 라인, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 3 m, 소켓, 꺾임, 차폐: 아니요, LED: 아니요, 외피 재질: PVC, 할로겐: 예

Tuotteen tunnus 1925640300
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 11
승인 일반 주문 데이터 Dimensions and weights 환경 제품 규정 준수 Technical specifications for cable General technical data Electrical properties General standards Standards Mâle gauche Mâle droite Klassificeringar

승인

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

일반 주문 데이터

Ausfuehrung
센서/액추에이터 라인, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 3 m, 소켓, 꺾임, 차폐: 아니요, LED: 아니요, 외피 재질: PVC, 할로겐: 예
Order No.
1925640300
Art
SAIL-M12BW-4-3.0V
GTIN (EAN)
4032248570287
Qty.
1 items

Dimensions and weights

Net weight
134 g

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 존재
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Außendurchmesser
5.3 mm ± 0.2 mm
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
3 m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
Yes
Hybrid cable
No
Insulation
PVC
Number of wires
4
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Polzahl
4
Resistance to oils
IEC 60811:404 규격 적합
Resistance to spread of flame
in accordance with IEC 60332-1
VW-1
Resistant to welding beads
아니요
Sheath material
PVC
Sheathing colour
검정
Shielded
아니요
Suitable for cable carriers
아니요
Temperaturbereich, bewegt
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
아니요
Zesítěné vyzařování
아니요

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
스크류된 경우
Temperature range of housing
-25…+85 °C
Threaded ring material
주조 아연
Tightening torque
M12: 0.8 - 1.2 Nm
Version
소켓, 꺾임

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Mâle gauche

Plug left
M12, Codage A, Nombre de pôles.: 4, Contact femelle, Coudé à 0°, Prise mâle, non blindé

Mâle droite

Plug right
Szabad vezetékvég

Klassificeringar

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
