SAIL-M12GM12G-3-10U
SAIL-M12GM12G-3-10U
Dimensioned drawing
Male, straight
SAIL-M12GM12G-3-10U
Dimensioned drawing
Straight socket
SAIL-M12GM12G-3-10U
Pole scheme
Male
SAIL-M12GM12G-3-10U
Pole scheme
Socket
SAIL-M12GM12G-3-10U
Wiring diagram
Schaltbild

SAIL-M12GM12G-3-10U

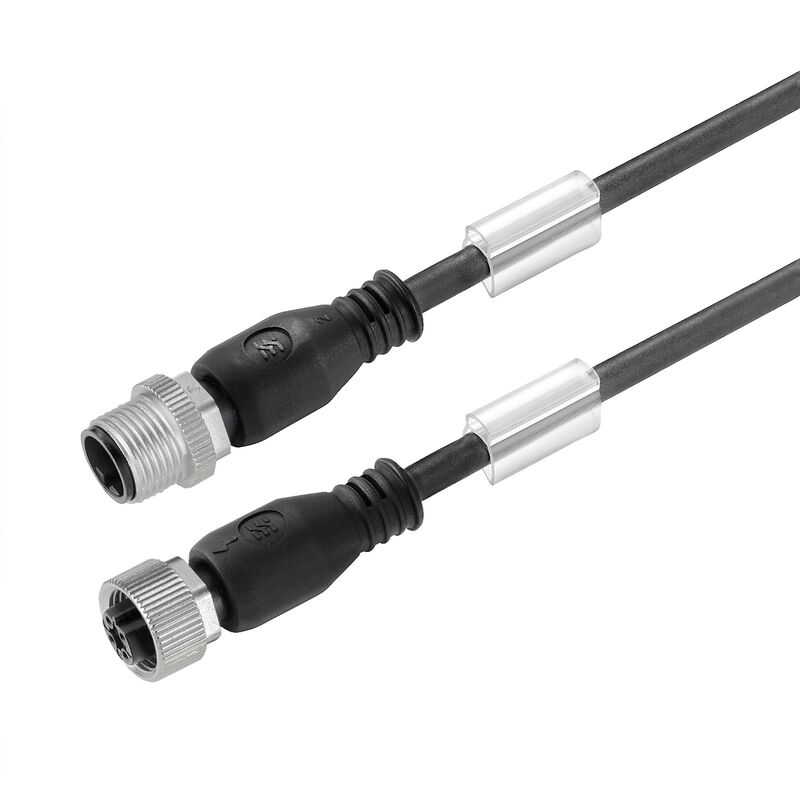

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 9457231000
Download datablad Product Downloads Engineering Support
Tilbehør 6 Anvendte produkter 82
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Сертификаты
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Версия
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457231000
Typ
SAIL-M12GM12G-3-10U
GTIN (EAN)
4032248230143
Qty.
1 Styk

Dimensions and weights

Net weight
255 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Colour coding
brown
blue
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Kábelhossz
10 m
Köpeny színe
black
LABS-free
Yes
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Resistenza agli olii
in accordance with IEC 60811:404
Sheath material
PUR
Shielded
No
Speed
5 m/s
Temperature range, stationary
-40...80 °C
Torsion resistance
360 °/m
Welding spark resistance
No
Zakres temperatur, zmienny, min. / maks.
-25...80 °C
Длина скручивания
1 m
Количество контактов
3
Наружный диаметр
4.3 mm ± 0.2 mm
케이블 캐리어에 적합
Yes

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, straight

Electrical properties

Nominal voltage
250 V
Сопротивление изоляции
108 Ω

General standards

Connector standard
IEC 61076-2-101
Nº de certificat (cULus)
E307231

Standards

Conector norma
IEC 61076-2-101
Resistencia a vibraciones e impactos conforme a
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
