SAIL-M12W-T-5.0H
SAIL-M12W-T-5.0H
Dimensioned drawing
SAIL-M12W-T-5.0H
Pole scheme
Plug
SAIL-M12W-T-5.0H
Wiring diagram
SAIL-M12W-T-5.0H
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12W-T-5.0H

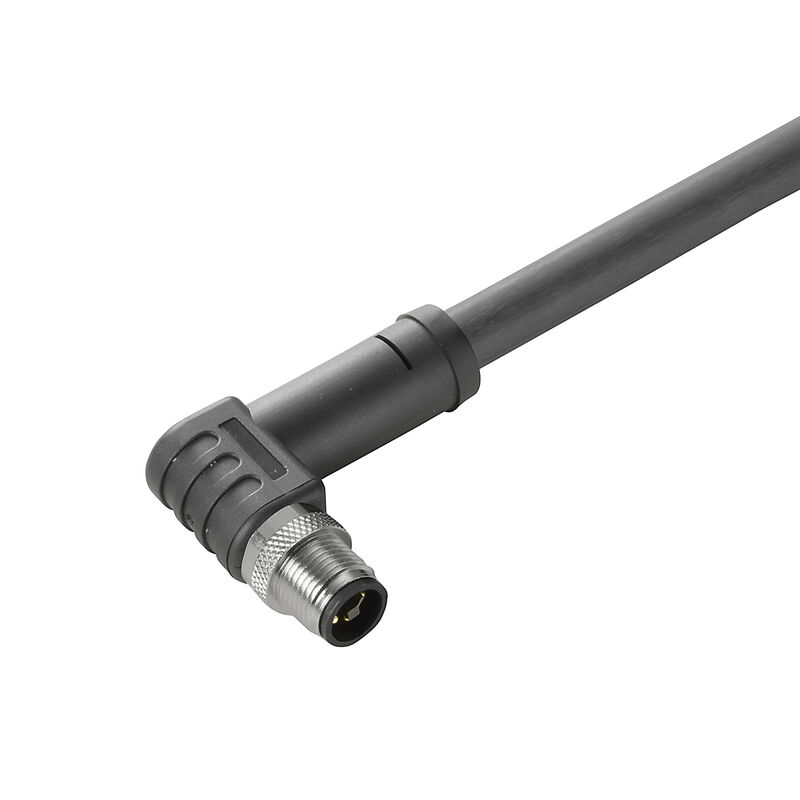

전원 케이블, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 5 m, 핀, 90°, 차폐: 아니요, 외피 재질: PUR, 할로겐: 아니요

Produkt ID 2050710500
Download datablad Engineering Support Product Downloads
Anvendte produkter 4
Omologazioni 일반 주문 데이터 Dimensions and weights 환경 제품 규정 준수 Technical specifications for cable General technical data Elektrické vlastnosti General standards Standards Classifications

Omologazioni

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

일반 주문 데이터

Version
전원 케이블, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 5 m, 핀, 90°, 차폐: 아니요, 외피 재질: PUR, 할로겐: 아니요
Order No.
2050710500
Type
SAIL-M12W-T-5.0H
GTIN (EAN)
4050118441987
Qty.
1 Styk

Dimensions and weights

Net weight
300 g

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 존재
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
5 m
Colour coding
black
blue
white
brown
Configurable cable length
No
Core cross-section
2,5 mm²
Halogen
Ne
Insulation
PP
Irradiation crosslinked
Nein
Number of poles
4
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
11 mm ± 0.4 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-40...90 °C
Temperature range, stationary
-50...90 °C
Welding spark resistance
Nem

General technical data

AF size
13 mm
Coding
T-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
Nominal current
12 A
Nominal voltage
63 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 1.0 Nm
Version
Mâle, coudé

Elektrické vlastnosti

Insulation resistance
108 Ω
Nominal voltage
63 V

General standards

Certificate no. (cULus)
E310075
Connector standard
IEC 61076-2-111

Standards

Connector standard
IEC 61076-2-111

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
