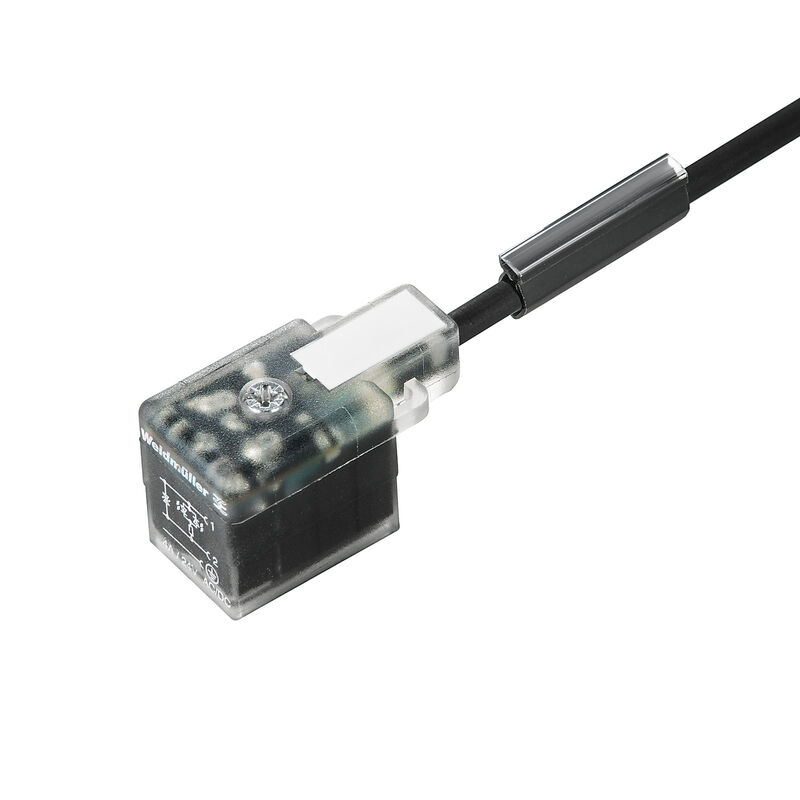

SAIL-VSB-15U

Valve cable (assembled), One end without connector - valve plug, Industrial design B (11 mm), Cable length: 15 m, PUR, black

Produkt ID 9457931500

Version	Valve cable (assembled), One end without connector - valve plug, Industrial design B (11 mm), Cable length: 15 m, PUR, black
Order No.	9457931500
Type	SAIL-VSB-15U
GTIN (EAN)	4050118150803
Qty.	1 Styk

Net weight

462 g

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Acceleration	5 m/s²
Bending cycles	2 Mio
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	15 m
Colour coding	brown blue Green/yellow
Core cross-section	0,5 mm²
Halogen	No
Insulation	PP
Number of poles	3
Outside diameter	4.6 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	200 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-50...80 °C
Torsion resistance	0 °/m
Welding spark resistance	No

All valve plugs are fitted with protective circuits	Zener diode
Coding	Industrial design B (11 mm)
Contact surface	tinned
LED	Yes
Protection degree	IP67 when screwed in
Rated current	4 A
Rated voltage	24 V
Temperature range of housing	-25…+80 °C
Tightening torque	Mounting screw M3: 0.4 Nm
Version	One end without connector - valve plug

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167254)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9457931500)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
