Egenskaber
| Version | Fuse terminal, Screw connection, medium yellow, 10 mm², 16 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 10 x 38 mm |
| Order No. | 0178220000 |

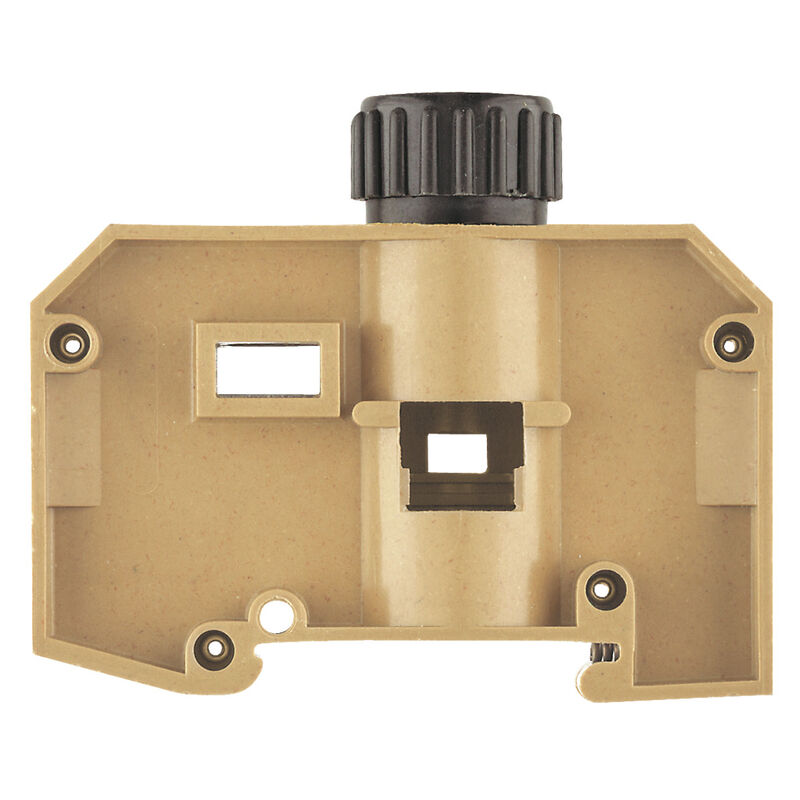

| Type | SAKS 4/35 USA |
| GTIN (EAN) | 4008190095987 |
| Qty. | 20 Styk |
| Depth | 65 mm |
| Depth (inches) | 2,559 inch |
| Depth including DIN rail | 66 mm |
| Height | 75 mm |
| Height (inches) | 2,953 inch |
| Width | 24 mm |
| Width (inches) | 0,945 inch |
| Net weight | 79,35 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | KrG |
| Colour | medium yellow |
| UL 94 flammability rating |
V-0
5VA |
| Version |
Screw connection
Fuse cartridge for screwable cross-connection One end without connector |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 10 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 14 mm |
| Tightening torque, max. | 2,4 Nm |
| Tightening torque, min. | 1,2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 12400-188 |
| Current size B (CSA) | 30 A |
| Current size C (CSA) | 30 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 22 AWG |
| Type of voltage for indicator | AC/DC |
| Cartridge fuse | 10 x 38 mm |
| Display | Without LED |
| Fuse holder (cartridge holder) | for screw fixing |
| Operating voltage, max. | 400 V |
| Type of voltage for indicator | AC/DC |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Rated current | 16 A |
| Current at maximum wires | 30 A |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 30 A |
| Voltage size C (UR) | 600 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36641) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0178220000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| ECLASS 14.0 | 27-25-01-13 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
