Egenskaber

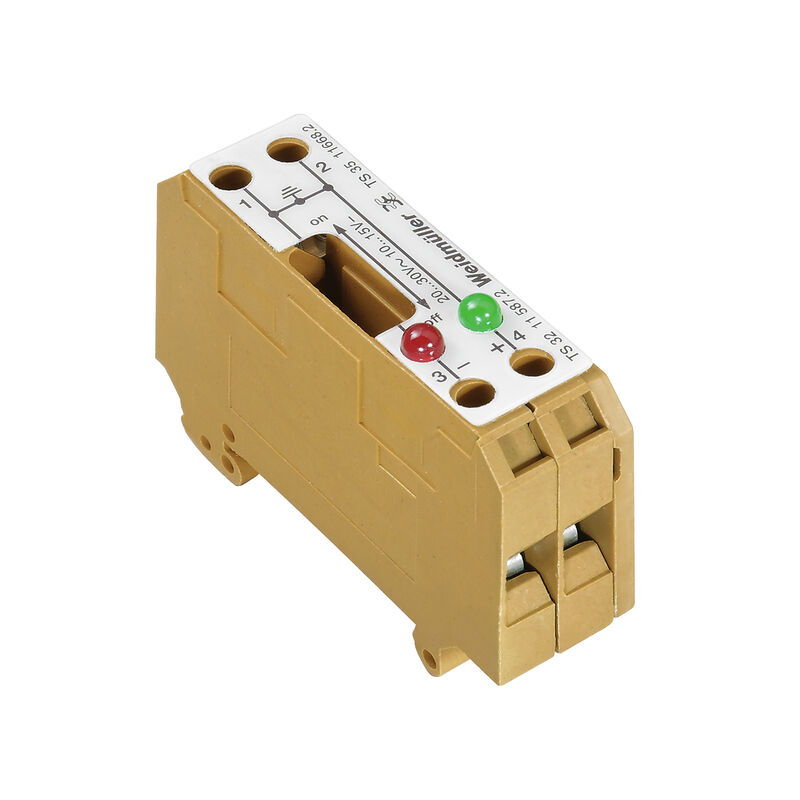

| Version | Test-disconnect terminal, Screw connection, medium yellow, 6 mm², 27 A, 30 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG |
| Order No. | 1166820000 |
| Type | SAKT E/35 2LD 30VAC |
| GTIN (EAN) | 4008190048082 |
| Qty. | 5 Styk |
| Depth | 52,5 mm |
| Depth (inches) | 2,067 inch |
| Height | 65 mm |
| Height (inches) | 2,559 inch |
| Width | 16 mm |
| Width (inches) | 0,63 inch |
| Net weight | 64,28 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 999cd67e-471e-4085-8dba-1342fcea86de |
| Material | KrG |
| Colour | medium yellow |
| UL 94 flammability rating |
V-0
5VA |
| Version |
Screw connection
Special terminal longitudinal isolator with LED for screwable cross-connection |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 4 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Installation advice | Direct mounting |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 4.0 x 0.8 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping screw | M 3.5 |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Rated cross-section | 6 mm² |
| Rated voltage | 30 V |
| Rated AC voltage | 30 V |
| Rated DC voltage | 15 V |
| Rated current | 27 A |
| Current at maximum wires | 27 A |
| Volume resistance according to IEC 60947-7-x | 0,78 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1,31 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36391)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284528) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204233) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1166820000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1166820000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| Approvals |   |
| ROHS | Conform |
