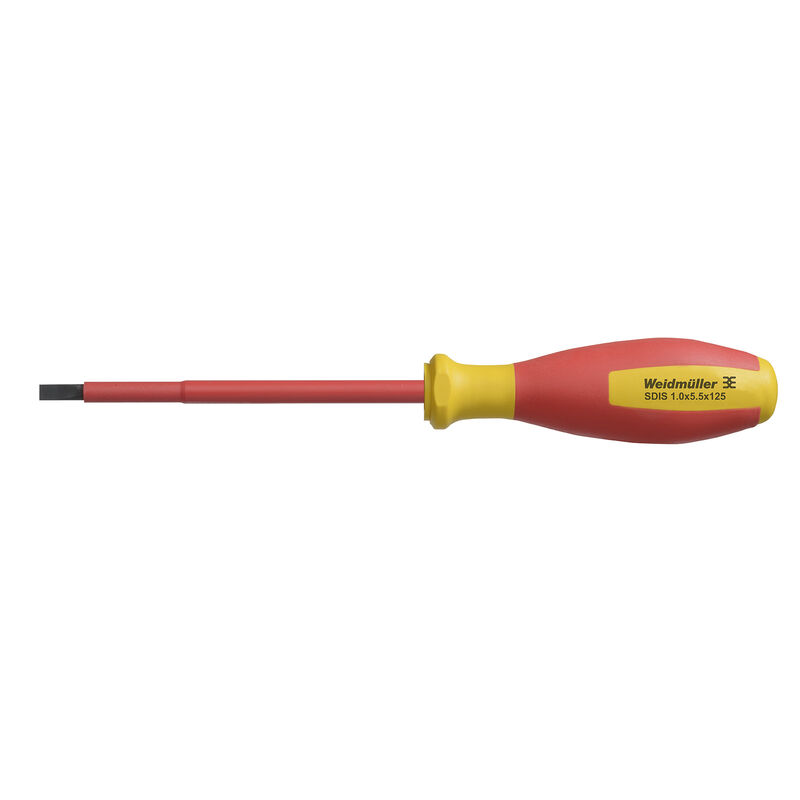

SDIS 1.0X5.5X125

Screwdriver, Blade width (B): 5.5 mm, Blade length: 125 mm, Blade thickness (A): 1 mm

Produkt ID 2749850000

Egenskaber

General ordering data

Version	Screwdriver, Blade width (B): 5.5 mm, Blade length: 125 mm, Blade thickness (A): 1 mm
Order No.	2749850000
Type	SDIS 1.0X5.5X125
GTIN (EAN)	4050118897050
Qty.	1 Styk

Dimensions and weights

Length	240 mm
Length (inches)	9,449 inch
Net weight	97 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	Lead 7439-92-1
SCIP	b28ab223-64ec-44cf-adb0-4dd6ebcae141

Technical data

Description of article	VDE-insulated screwdriver with slotted blade 1.0x5.5x125
Version	straight

Screwing tools

Blade length	125 mm
Blade thickness (A)	1 mm
Blade type	B
Blade width (B)	5,5 mm
Form	Slotted

Downloads

Catalogues

[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000158
ETIM 7.0	EC000158
ETIM 8.0	EC000158
ETIM 9.0	EC000158
ECLASS 9.0	21-04-04-07
ECLASS 9.1	21-04-04-07
ECLASS 10.0	21-04-04-07
ECLASS 11.0	21-04-04-07
ECLASS 12.0	21-04-04-07
ECLASS 13.0	21-04-04-07
ECLASS 14.0	21-04-04-07

Approvals

ROHS

Conform
