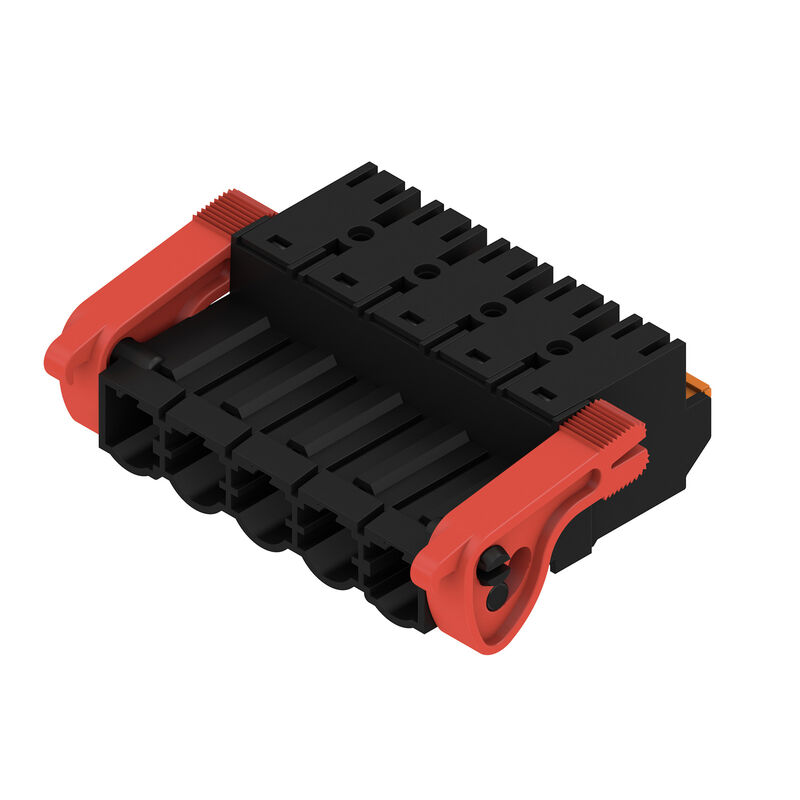

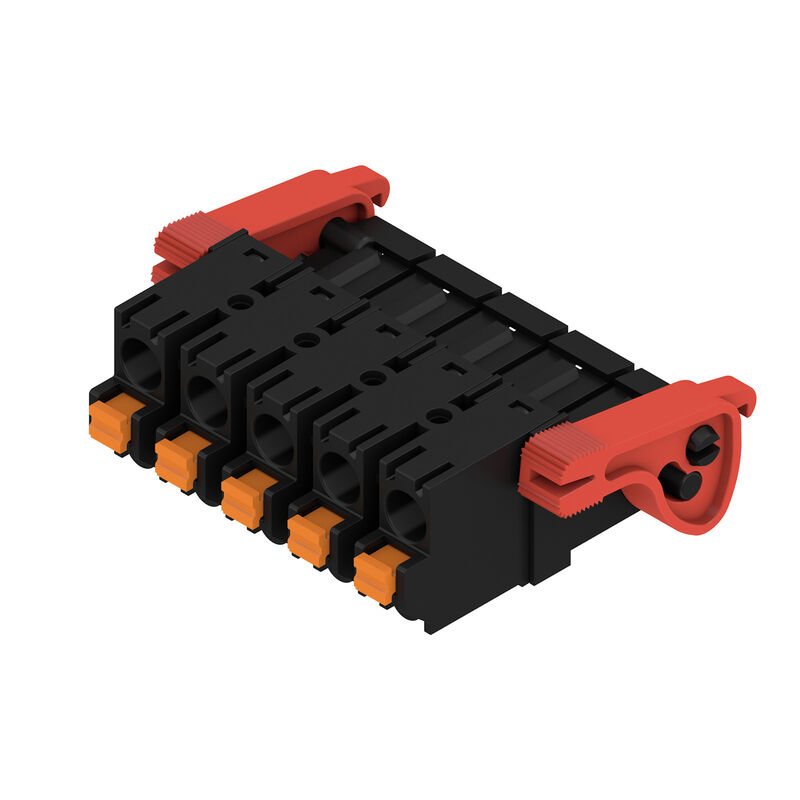

SLF 7.62HP/05/180LR SN BK BX

PCB plug-in connector, male plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box

Produkt ID 1043780000

Egenskaber

General ordering data

Version	PCB plug-in connector, male plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box
Order No.	1043780000
Type	SLF 7.62HP/05/180LR SN BK BX
GTIN (EAN)	4032248775354
Qty.	36 Styk
Product data	IEC: 1000 V / 24 A / 0.5 - 2.5 mm² UL: 600 V / 20 A / AWG 20 - AWG 12
Packaging	Box

Dimensions and weights

Depth	34,75 mm
Depth (inches)	1,368 inch
Height	15,1 mm
Height (inches)	0,594 inch
Width	46,98 mm
Width (inches)	1,85 inch
Net weight	19,494 g

Environmental Product Compliance

REACH SVHC	/
RoHS Compliance Status	Compliant without exemption

System Parameters

Product family	OMNIMATE Power - series BL/SL 7.62HP
Type of connection	Field connection
Wire connection method	PUSH IN with actuator Tension-clamp connection
Pitch in mm (P)	7,62 mm
Pitch in inches (P)	0,3 "
Conductor outlet direction	180°
Number of poles	5
L1 in mm	30,48 mm
L1 in inches	1,2 "
Number of rows	1
Pin series quantity	1
Rated cross-section	2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470	IP 20
Volume resistance	≤5 mΩ
Can be coded	Yes
Stripping length	10 mm
Tightening torque for screw flange, min.	0,15 Nm
Tightening torque for screw flange, max.	0,25 Nm
Screwdriver blade	0.6 x 3.5
Screwdriver blade standard	DIN 5264
Plugging cycles	25

Material data

Insulating material	PBT
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	IIIa
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Layer structure of plug contact	2...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	100 °C
Temperature range, installation, min.	-25 °C
Temperature range, installation, max.	100 °C

Conductors suitable for connection

Clamping range, min.	0,08 mm²
Clamping range, max.	2,5 mm²
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section AWG, max.	AWG 14
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	2,5 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	1,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.8 mm x 2.0 mm
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9025870000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9004050000 Cross-section for conductor connection: Type: fine-wired nominal: 0,75 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9025860000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0542500000 Cross-section for conductor connection: Type: fine-wired nominal: 1 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 9019100000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0282800000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0635100000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 0186500000
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P) Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	24 A
Rated current, max. number of poles (Tu=20°C)	24 A
Rated current, min. number of poles (Tu=40°C)	23,8 A
Rated current, max. number of poles (Tu=40°C)	21 A
Rated voltage for surge voltage class / pollution degree II/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/3	630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV
Short-time withstand current resistance	3 x 1s with 180 A
Clearance, min.	10,7 mm
Creepage distance, min.	10,7 mm

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1121690
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	20 A
Rated current (Use group C / CSA)	20 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, min.	AWG 20
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group C / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	20 A
Rated current (Use group C / UL 1059)	20 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 20
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	352 mm
VPE width	135 mm
VPE height	48 mm

Type tests

Test: Durability of markings	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 Test: mark of origin, type identification, pitch, durability, type of material, date clock, approval marking UL, approval marking CSA Evaluation: available
Test: Clampable cross section	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96, DIN EN 60947-1 section 8.2.4.5.1 / 04.08 Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: solid 1.5 mm² Type of conductor and conductor cross-section: stranded 2.5 mm² Type of conductor and conductor cross-section: H07V-K2.5 Type of conductor and conductor cross-section: H07V-U2.5 Type of conductor and conductor cross-section: AWG 20/19 Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 12/19 Type of conductor and conductor cross-section: AWG 14/1 Evaluation: available
Test for damage to and accidental loosening of conductors	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: 0.4 kg Conductor type: Type of conductor and conductor cross-section: H07V-U1.5 Evaluation: passed Requirement: 0.7 kg Conductor type: Type of conductor and conductor cross-section: H07V-K2.5 Type of conductor and conductor cross-section: AWG 14/19 Evaluation: passed Requirement: 0.9 kg Conductor type: Type of conductor and conductor cross-section: AWG 12/19 Evaluation: passed
Pull-out test	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: 0.4 kg Conductor type: Type of conductor and conductor cross-section: H07V-U1.5 Evaluation: passed Requirement: 0.7 kg Conductor type: Type of conductor and conductor cross-section: H07V-K2.5 Type of conductor and conductor cross-section: AWG 14/19 Evaluation: passed Requirement: 0.9 kg Conductor type: Type of conductor and conductor cross-section: AWG 12/19 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Gold-plated contact surfaces on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
